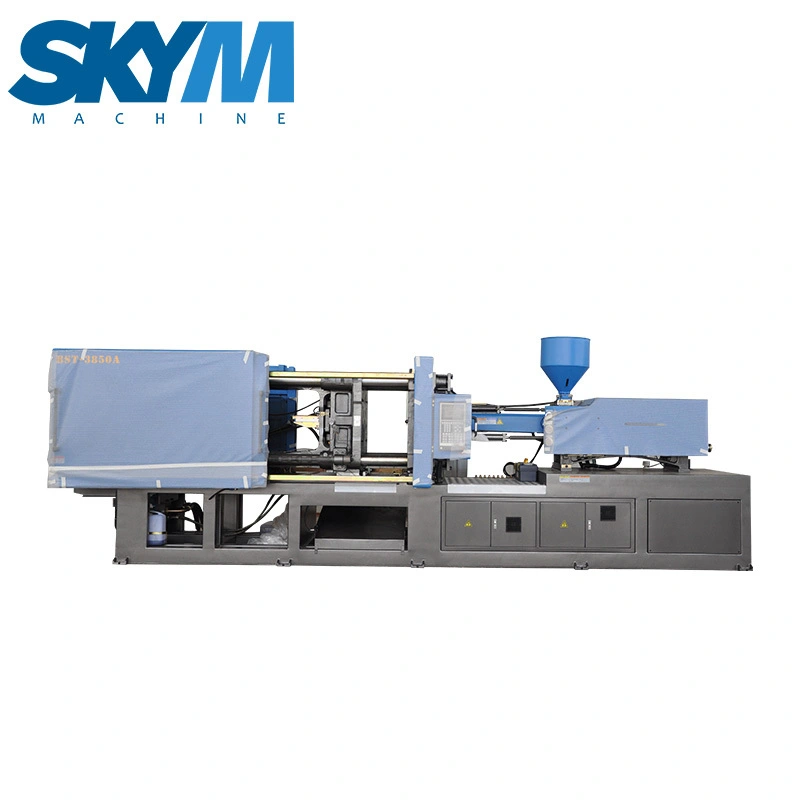

High Speed PET Preform Injection Molding Machine for Water Bottles
Servo Energy-saving Injection Molding Machines: there is No Extra Energy Consumption Due To Output Volume Changes According To Load. In The Phase Of Holding Pressure, servo Motor Lowers Rotate And Consumes A Little Of Energy. Motor doesn't Work And Consumes No Energy. Servo Energy-saving Injection Molding Machines will Save 30%-80% Energy And Bring You Prominent Economic.
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference by controlling the rotating speed of the servo motor. In the way, the control of injection molding is not only acruate but also fast, and the repeatability of the products high as well.
Product parameters
| Model | 100 TON | 132TON | 165TON | 205 TON | 260 TON | 300 TON | 385TON | 450 TON | 580 TON | 650 TON | ||||||||||||
| INJECTON UNIT |
Screwtype |
A | B | A | B | A | B | A | B | A | B | A | B | A | B | A | B | A | B | A | B | |
| Screw diameter | mm | 36 | 38 | 38 | 40 | 42 | 45 | 45 | 48 | 54 | 56 | 56 | 58 | 63 | 65 | 73 | 75 | 84 | 86 | 90 | 92 | |
| Shot weight | g | 128 | 162 | 188 | 205 | 286 | 326 | 415 | 472 | 650 | 690 | 709 | 760 | 1008 | 1072 | 1430 | 1512 | 2230 | 2340 | 2745 | 2870 | |
| CLAMPING | Clamp tonnage | KN | 1000 | 1320 | 1650 | 2050 | 2600 | 3000 | 3850 | 4500 | 5800 | 6500 | ||||||||||
| Toggle stroke | mm | 320 | 350 | 405 | 445 | 530 | 560 | 660 | 700 | 760 | 880 | |||||||||||
| Mould Thickness | mm | 150-400 | 150-420 | 170-440 | 190-470 | 200-550 | 220-600 | 280-680 | 280-710 | 290-810 | 350-860 | |||||||||||
| Space between tie-bars | mm | 385×350 | 410×375 | 455×425 | 490×464 | 554×554 | 580×580 | 680×680 | 720×720 | 800-774 | 860×819 | |||||||||||
| OTHERS | Heat power | KW | 7.6 | 82 | 8.2 | 11.6 | 15.5 | 15.5 | 17.5 | 20.5 | 28.1 | 37.1 | ||||||||||
| Max.pump pressure | MPa | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |||||||||||
| Pumpmotor power | KW | 11 | 13 | 15 | 17 | 25 | 25 | 30 | 37 | 18.5+30 | 25+30 | |||||||||||
| Machine dimension | m | 4.3×1.5×1.6 | 4.5×1.6×1.7 | 75.0×1.6×1.7 | 5.4×1.6×1.75 | 6.1×1.7×1.8 | 6.5×1.8×1.8 | 7.0×2.2×2.0 | 7.3×2.3×2.4 | 8.75×2.2×2.3 | 92×2.2×2.4 | |||||||||||
| Machine weight | t | 3.4 | 3.9 | 5 | 6 | 8 | 9 | 11.5 | 13.8 | 21.8 | 26 | |||||||||||
| Oil tank capacity | L | 180 | 200 | 250 | 270 | 350 | 370 | 400 | 450 | 850 | 1000 | |||||||||||
Introduction
◉ More space saving: small footprint, bigger mold carrying capacity.
◉ More power saving: servo system configuration, more energy-saving ability.
◉ High precision: the product less flash
◉ Smaller noise: small hydraulic impact, lower noise and oil consumption.
◉ More automation: accurate mold positioning meets the needs of automatic pickup and insert.
◉ Longer life: even mold force insures long service life.
◉ Long and high rigidity slider, with better orientation and parallelism, can carry heavier molds.
◉ Stepless adjustment fumction ensures the accurate and stable clamping force.
◉ High rigidity clamping frame makes the whole machine running more smoothly.
◉ High-precision linear guide results in faster injection response, and accurate positioning.
◉ A variety of efficient special screw and barrel adapts to different types of products.
◉ Higher standard configuration with 12'' color display, CPU memory up to 1.4G.
Features
Balanced double injection cylinder technology makes screw to have distributed force during fast injection
Five-star Hydraulic motor with big torque
Ensure the excellent plastic molding condition
Research and develop different screws according to different injection condition,suitable for the progressive demand and greatly improve the injection quality
5-point twin toggle clamping system by modular optimization software designing.Strong clamping with rapid and stable,to meet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force
Imported world famous hydraulic components precisely control each action.
Manifolds are close the operation unit with rapid speed sensitive respond
Imported computer special for Injection Molding Machine with multiple functions and precise control processing
World famous electrical components and high quality circuit hardware with stable and reliable running.
