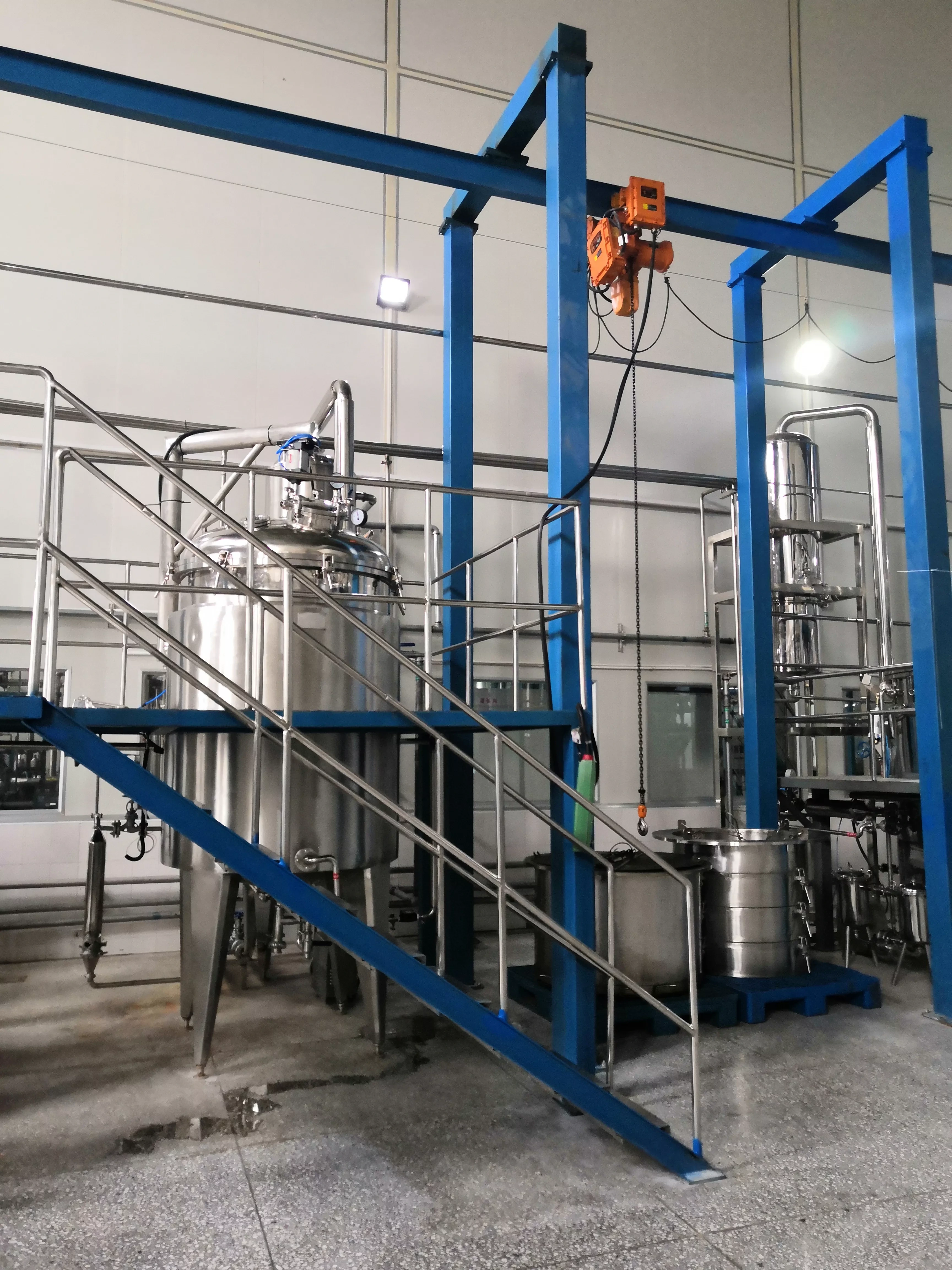

Production Type 4000L Herbal Plant Essential Oil Extraction Equipment
Production Type 4000L Herbal Plant Essential Oil Extraction Equipment
Product Details
model | GYT | Material | SUS304 |
Specification | 100L、200L、500L、1000L、2000L、5000L | Origin | China |
brand | Skym | type | Herbal Plant essential oil extraction equipment |
Equipment introduction:
This equipment is suitable for the extraction of essential oils (volatile oils) from flowers and plants. The equipment uses a steam distillation device for water-isolated distillation. It can effectively extract plant volatile oil components and is more effective in collecting various volatile aromas of plants. This equipment is suitable for companies to set up factories near the origin of plants. The equipment adopts the water-distillation extraction method, placing aromatic plants in a distillation vessel, and then passing high-temperature steam into it (or boiling spices and water together). At this time, the essential oils containing aromatic components in the plants will diffuse into In the water vapor, an azeotrope of oil and water is formed; then the azeotrope is cooled. Since the oil is insoluble in water, the oil is separated through the oil-water separator, thereby separating from the water and forming the essential oil we need. The equipment can be used for water-isolated distillation or co-water distillation. This equipment is a new, multi-functional and multi-purpose plant essential oil extraction unit, which can efficiently collect effective ingredients such as plant volatile oils, plant aromatic lotions, and plant extracts.
Device parameters:
1. Distillation tank: 3000 liters, heated by steam boiler
2. Condenser: special condenser for essential oils, heat exchange area 3.25㎡
3. Loading and unloading: upper port feeding, lower port discharging, conveying and loading
4. Oil-water separator: made of boronized glass
5. Cooling water flow: 60T/hour, external circulating water cooling. Steam consumption: 300 kg/hour.
7. Operating platform: all stainless steel material, stainless steel bracket and work surface, stainless steel steps
8. Distillation equipment material: SUS304L 2B
9. Open the cover from the bottom and use a four-cylinder rotary locking device.
10. Equipment weight: 1780KG.
