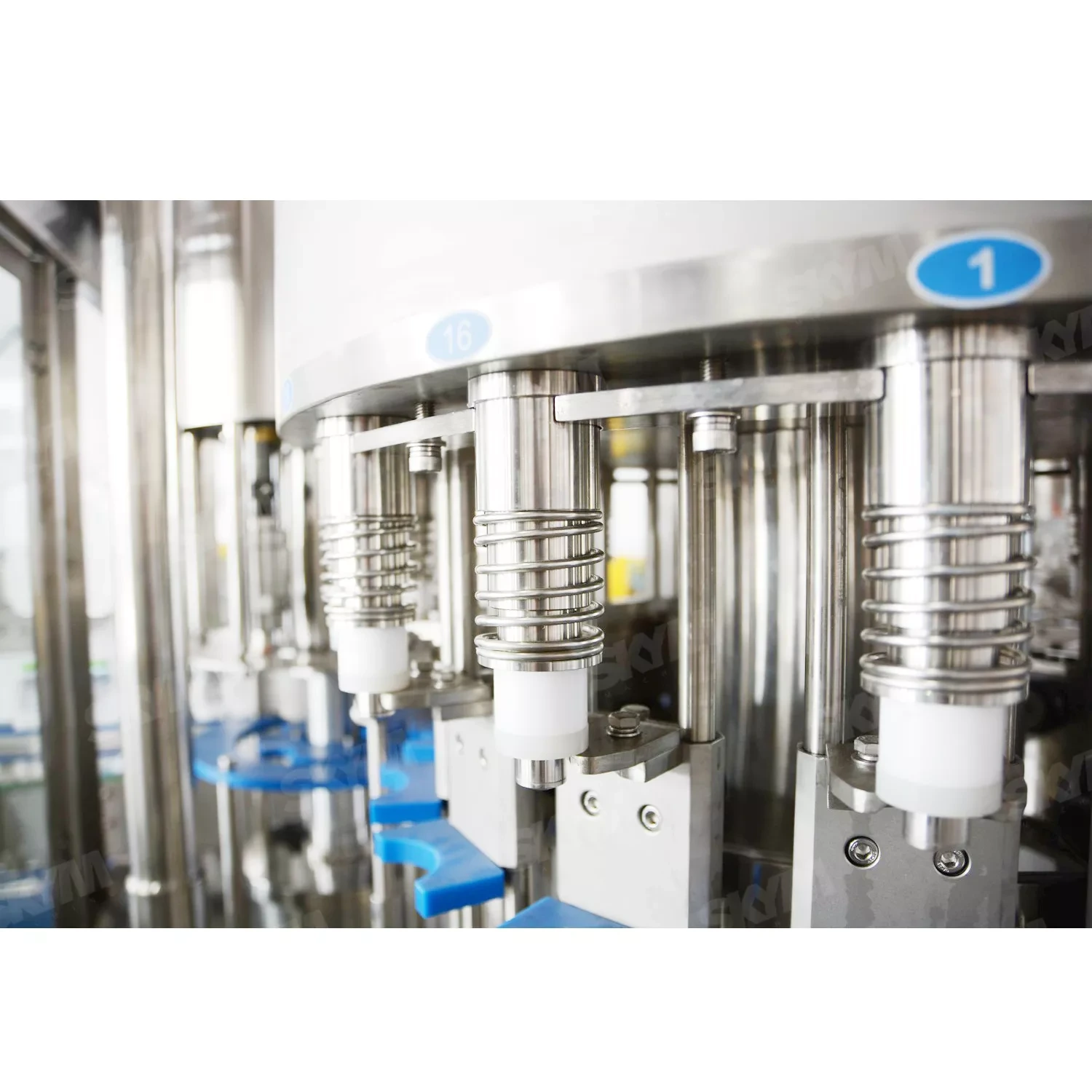

pure water plastic bottle filling machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.
|Model ||Washing ||Filling ||Capping ||Capacity(b/h) ||Motor ||Overall |
|heads ||heads ||heads ||500ml ||power ||dimension(mm) |
| || || || ||(kw) || |
|CGF14-12-5 ||14 ||12 ||5 ||2000-4000 ||1.5 ||2100*1400*2500 |
|CGF18-18-6 ||18 ||18 ||6 ||5000-7000 ||2.2 ||2460*1720*2650 |
|CGF24-24-8 ||24 ||24 ||8 ||8000-12000 ||3 ||3100*2100*2650 |
|CGF32-32-10 ||32 ||32 ||10 ||12000-15000 ||4 ||3500*2500*2650 |
|CGF40-40-10 ||40 ||40 ||10 ||16000-20000 ||7.5 ||4600*1800*2650 |
|CGF48-48-12 ||48 ||48 ||12 ||20000-24000 ||9.5 ||5200*4500*3400 |
|CGF50-50-15 ||50 ||50 ||15 ||24000-26000 ||11 ||5800*4500*3400 |
|CGF60-60-15 ||60 ||60 ||15 ||26000-30000 ||12 ||6500*4500*3400 |
|CGF72-72-18 ||72 ||72 ||18 ||30000-36000 ||14 ||6800*4500*3700 |
Characteristics of Pure Water Plastic Bottle Filling Machine:
1.Spiraling decline when output bottle,transform bottle shape shape no need to adjust the height of conveyor chains.
2.Host adopt advanced PLC automatic control technology,the key electrical components from famous company such as Japan,France Schneider.
3.Bottles transmission adopt clip bottleneck technology,bottle-shaped transform not need to adjust the equipment level,only change relater the curved plate,wheel and nylon parts is enough
4.High-speed large gravity flow valve filling valve,filling fast,filling accurate and no liquid lose.
5.The specially designed stainless steel bottle washing machine clip is solid and durable,no touch with the screw location of bottle mouth to avoid secondary pollution.
6.Using the wind sent access and move wheel in the bottle directly connected technology;Canceled screw and conveyor chains,this enable the change the bottle-shaped become easier
This is the products of our Pure Water Plastic Bottle Filling Machine.
1.How can i know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.
2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.
3.How can i know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory
