Automatic 3 in 1 Bottle Water Filling Machine

Automatic 3 in 1 Bottle Water Filling Machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.

Quantity:
  • CGF16-16-5
  • SKYM

Zhangjiagang Sky Machine Co., Ltd.

We are devoted to the development, research and production of liquid food & beverage packing industry,plastic bottle blowing machine,injection molding machine.

Products Description

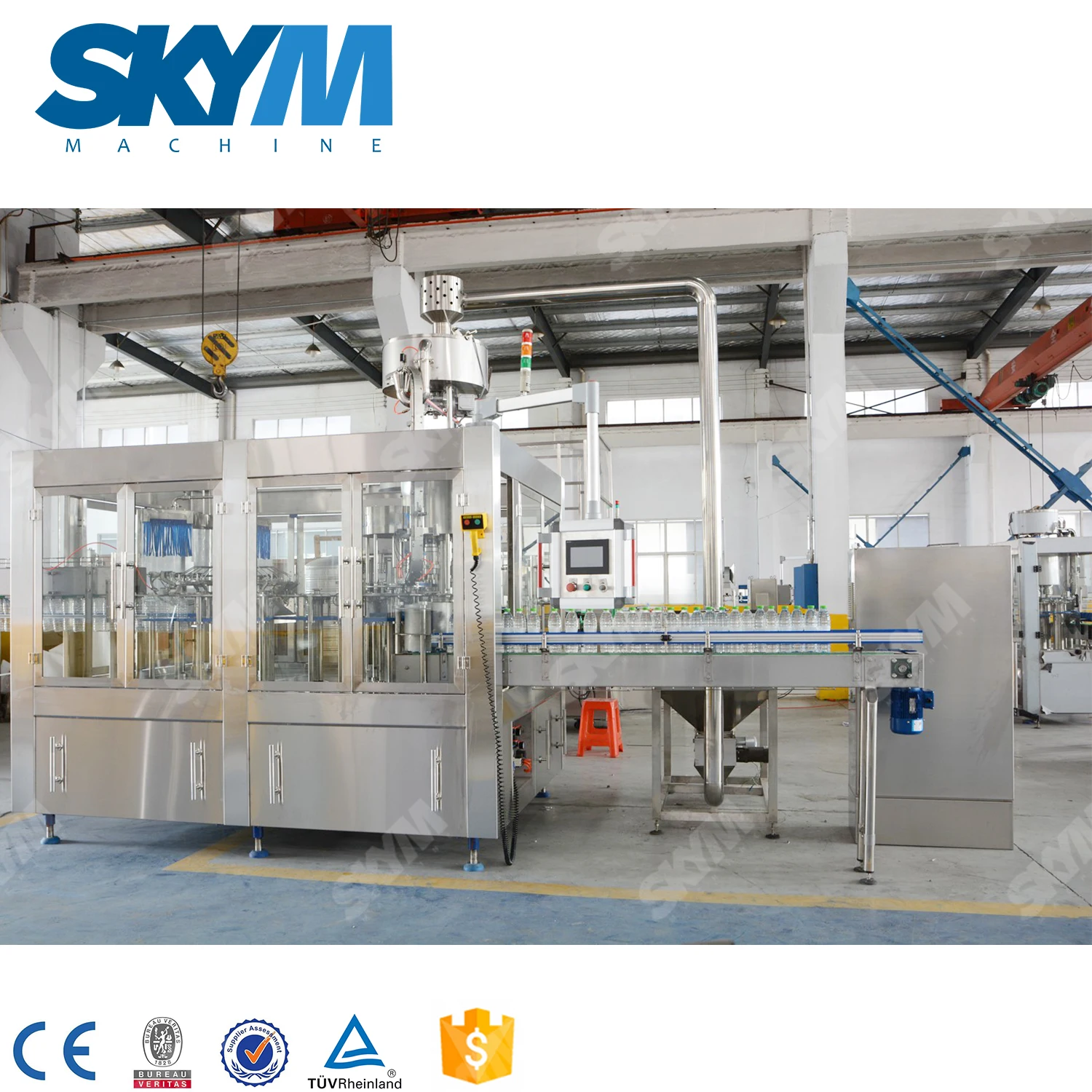

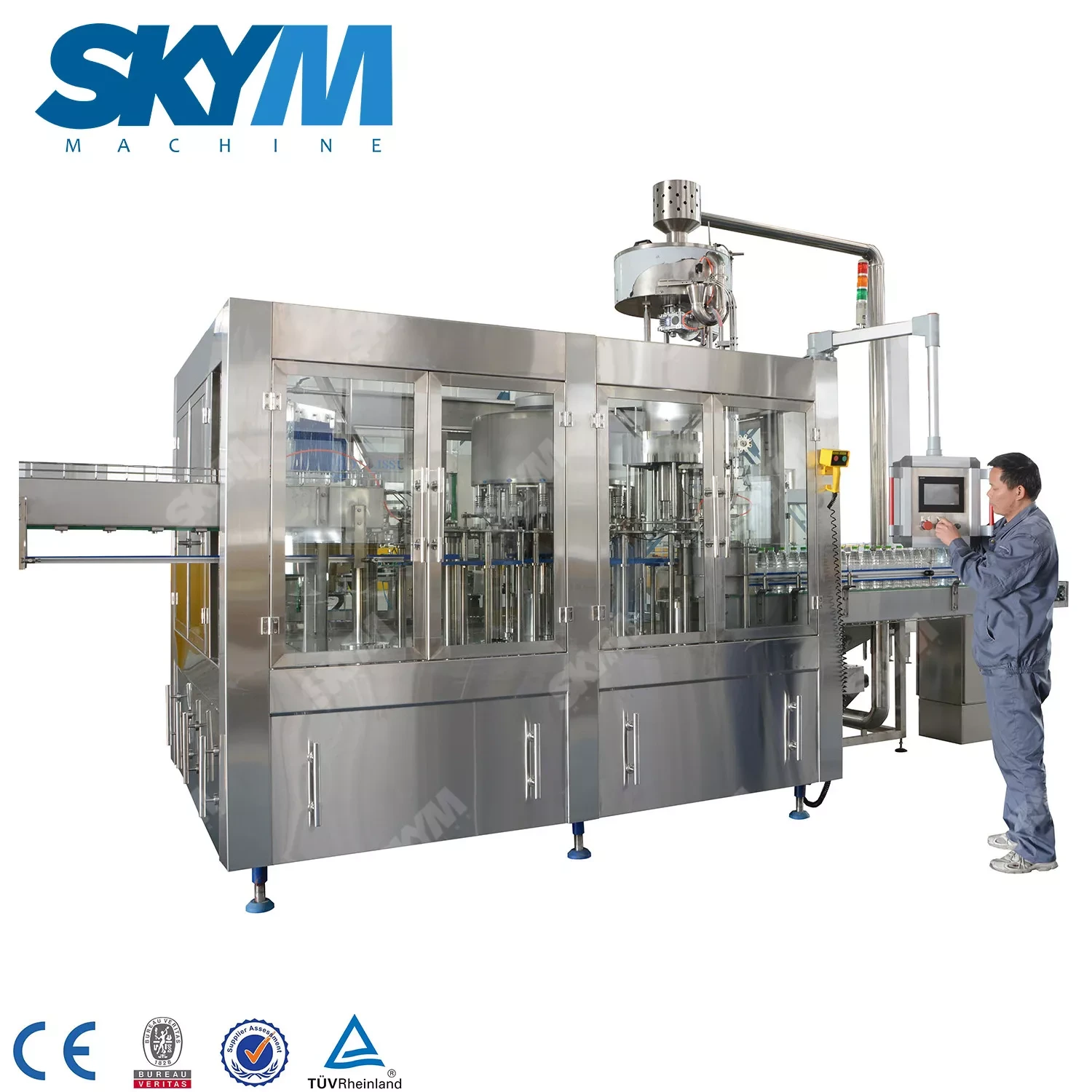

Automatic 3 in 1 Bottle Water Filling Machine

This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water,alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.


Detailed Images

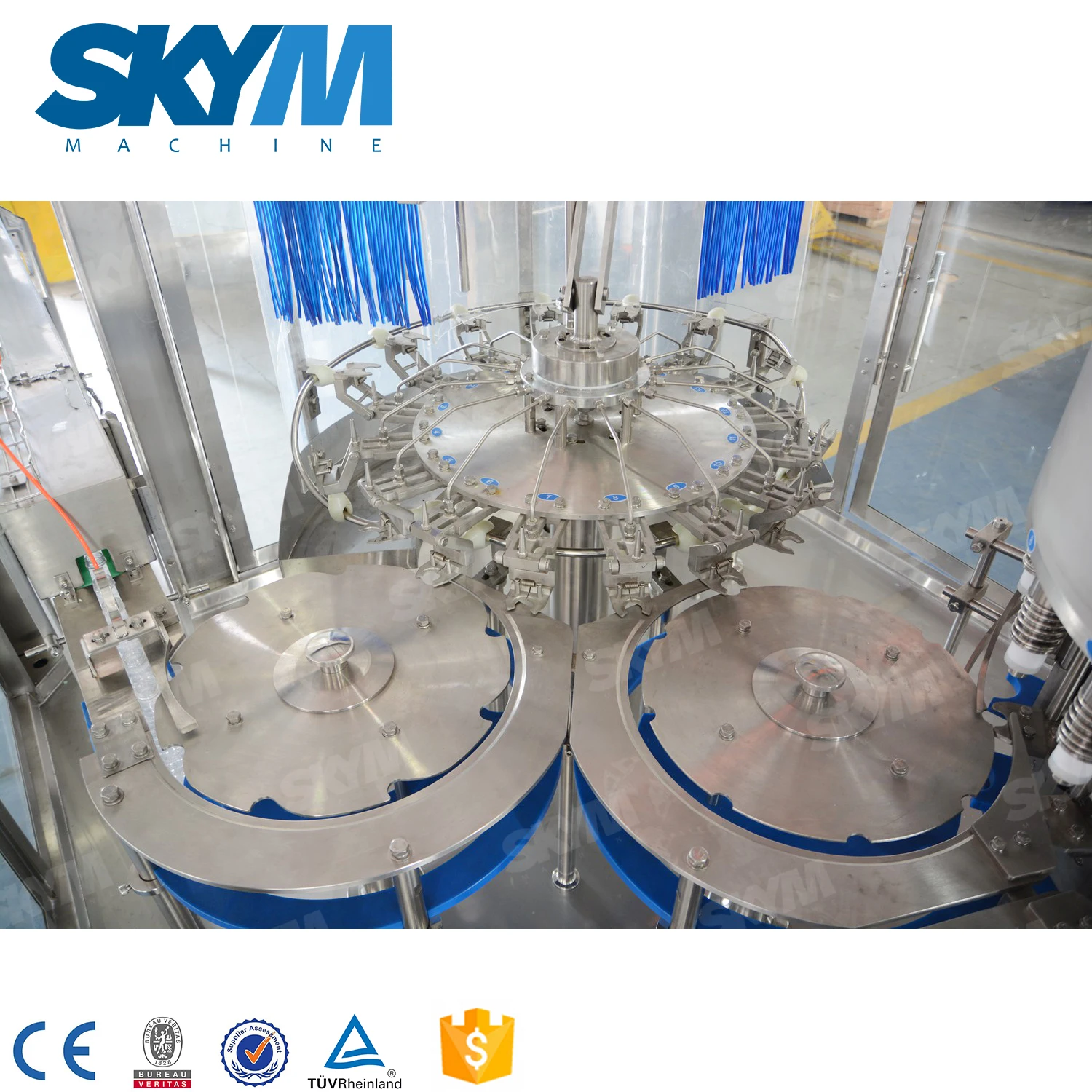

Washing Part--
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

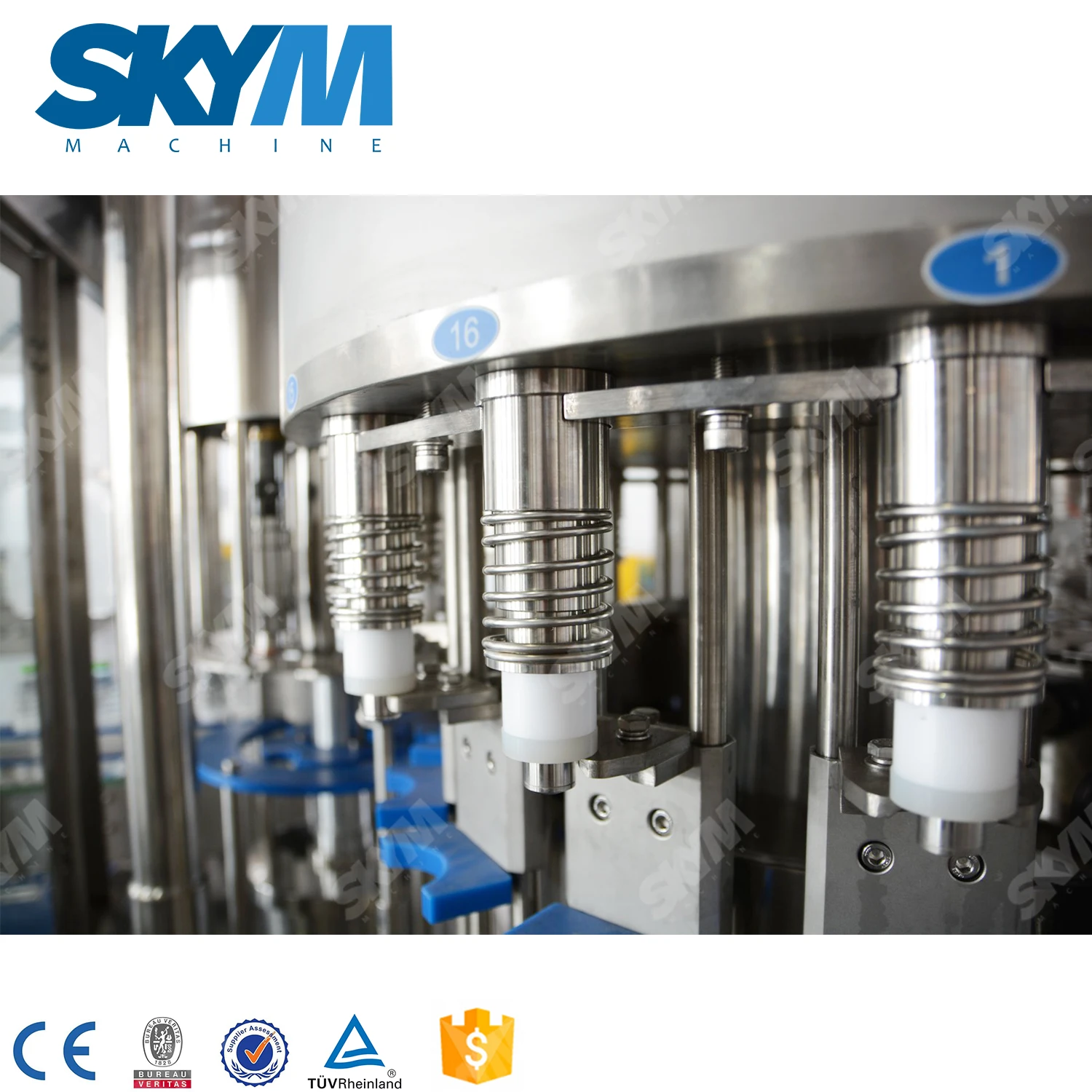

Filling Part--
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

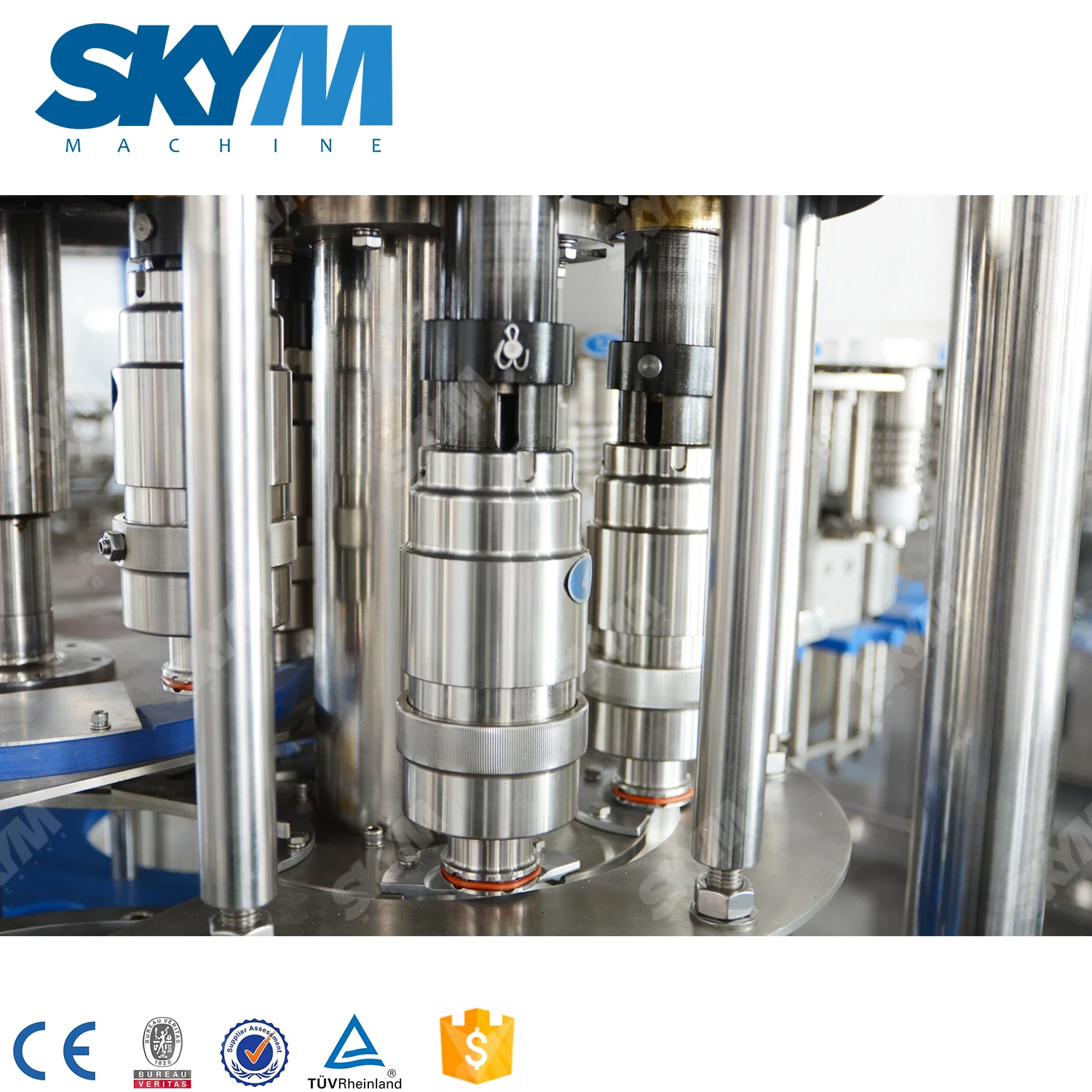

Capping Part--
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

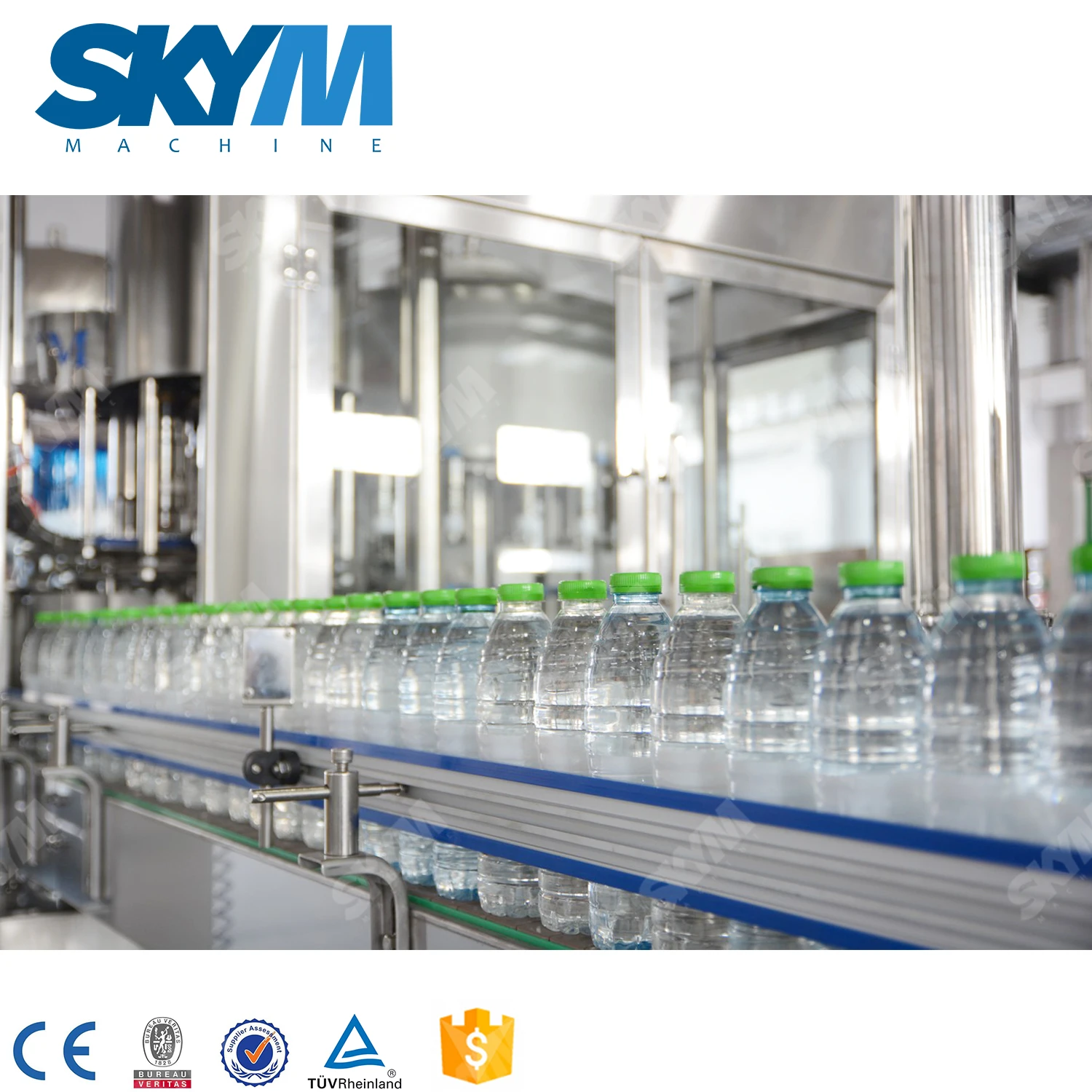

Flat convyer--
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine.

Product Paramenters
Model
CGF14-12-5
CGF16-16-5
CGF24-24-8
CGF32-32-10
CGF40-40-12
CGF50-50-15
Capacity (BPH)
3000-5000
6000-8000
8000-12000
12000-15000
16000-20000
20000-24000
Power supply
2.42 KW
3.12 KW
3.92 KW
3.92 KW
5.87 KW
7.87 KW
Overall dimension
2360×1770×2700
2760×2060×2700
2800×2230×2700
3550×2650×2700
4700×3320×2700
5900×4150×2700
Weight (KG)
2500
3500
4200
5500
6800
7600
