6000BPH Industrial Plastic bottle Water Filling Machine

Beverage Plastic Bottle Water Filling Machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.

Quantity:
  • CGF16-16-8
  • SKYM

Zhangjiagang Sky Machine Co., Ltd.
We are devoted to the development, research and production of liquid food & beverage packing industry,plastic bottle blowing machine,injection molding machine.
Products Description
6000BPH Industrial Plastic bottle Water Filling Machine
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water,alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Final Product

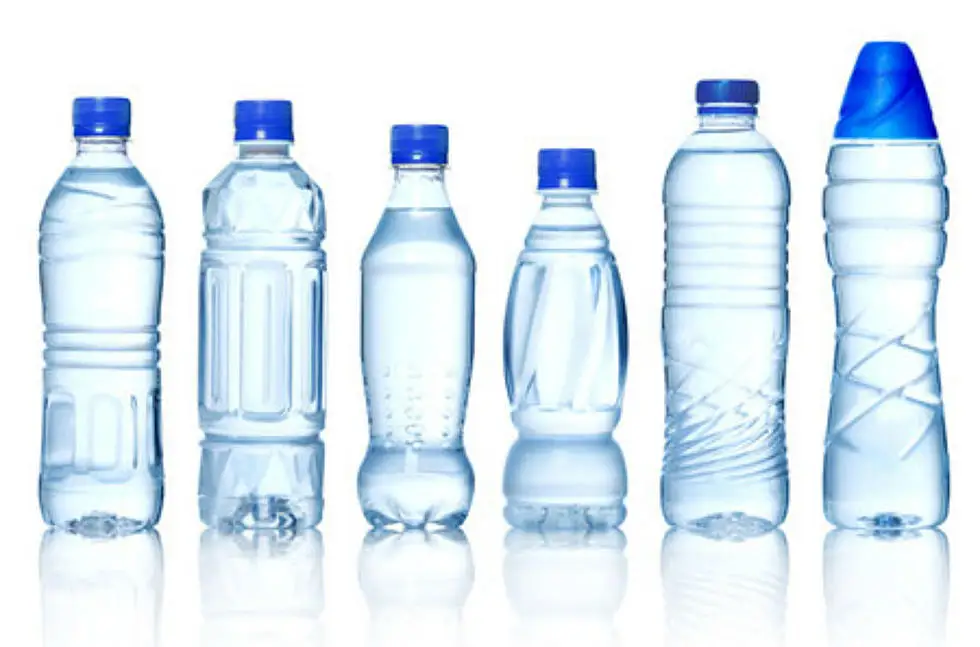

Suitable bottle
Bottle material
PET
Bottle volume(ml)
200ml--2500ml
Bottle type
Round , Square or coustomized
Bottle height(mm)
160-340
Bottle diameter(mm)
50-100

Detailed Images
Washing Part--
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Filling Part--
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Part--
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Flat convyer--
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine.
Product Paramenters
Model
CGF14-12-5
CGF16-16-5
CGF24-24-8
CGF32-32-10
CGF40-40-12
CGF50-50-15
Capacity (BPH)
3000-5000
6000-8000
8000-12000
12000-15000
16000-20000
20000-24000
Power supply
2.42 KW
3.12 KW
3.92 KW
3.92 KW
5.87 KW
7.87 KW
Overall dimension
2360×1770×2700
2760×2060×2700
2800×2230×2700
3550×2650×2700
4700×3320×2700
5900×4150×2700
Weight (KG)
2500
3500
4200
5500
6800
7600
Related Products

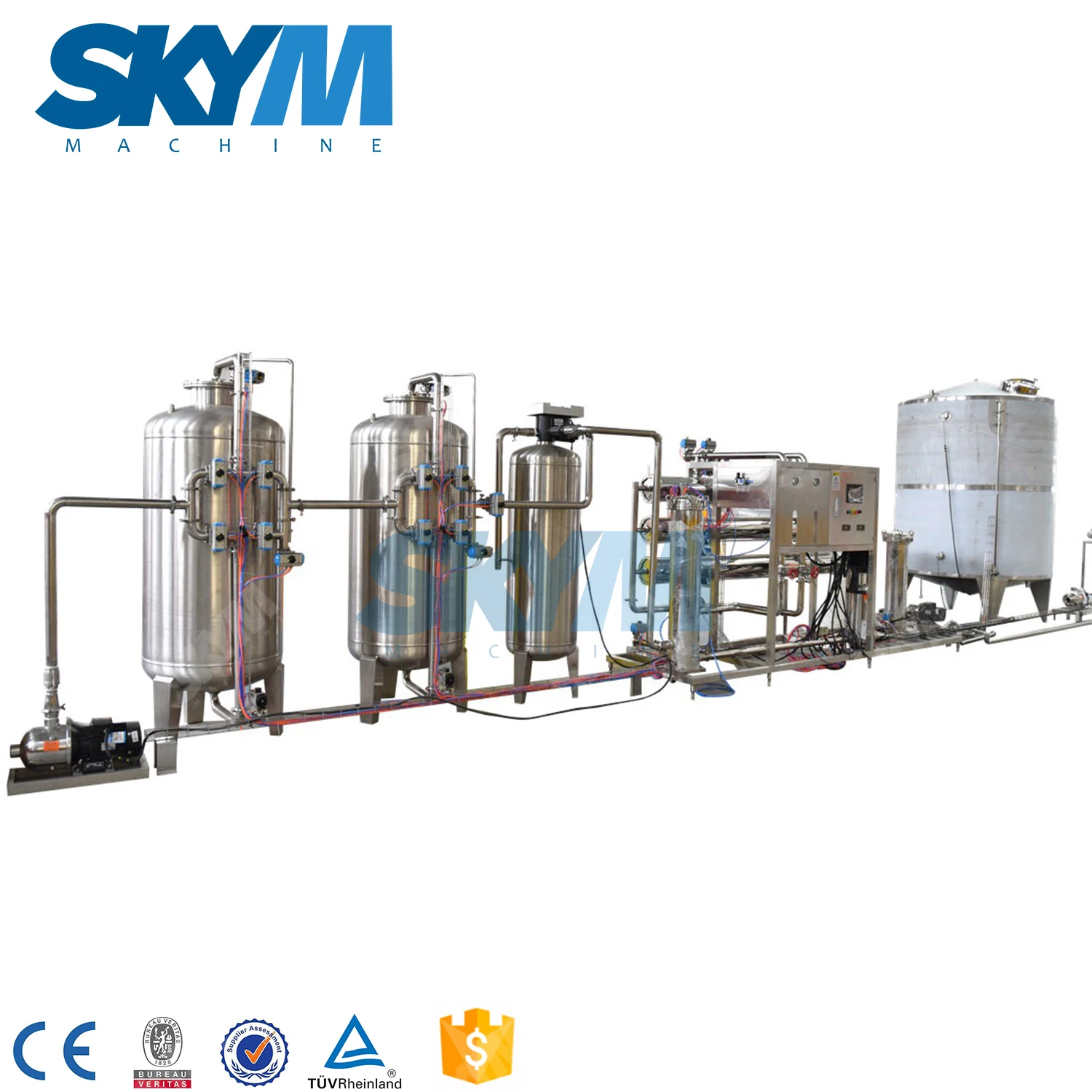

Water treatment machine

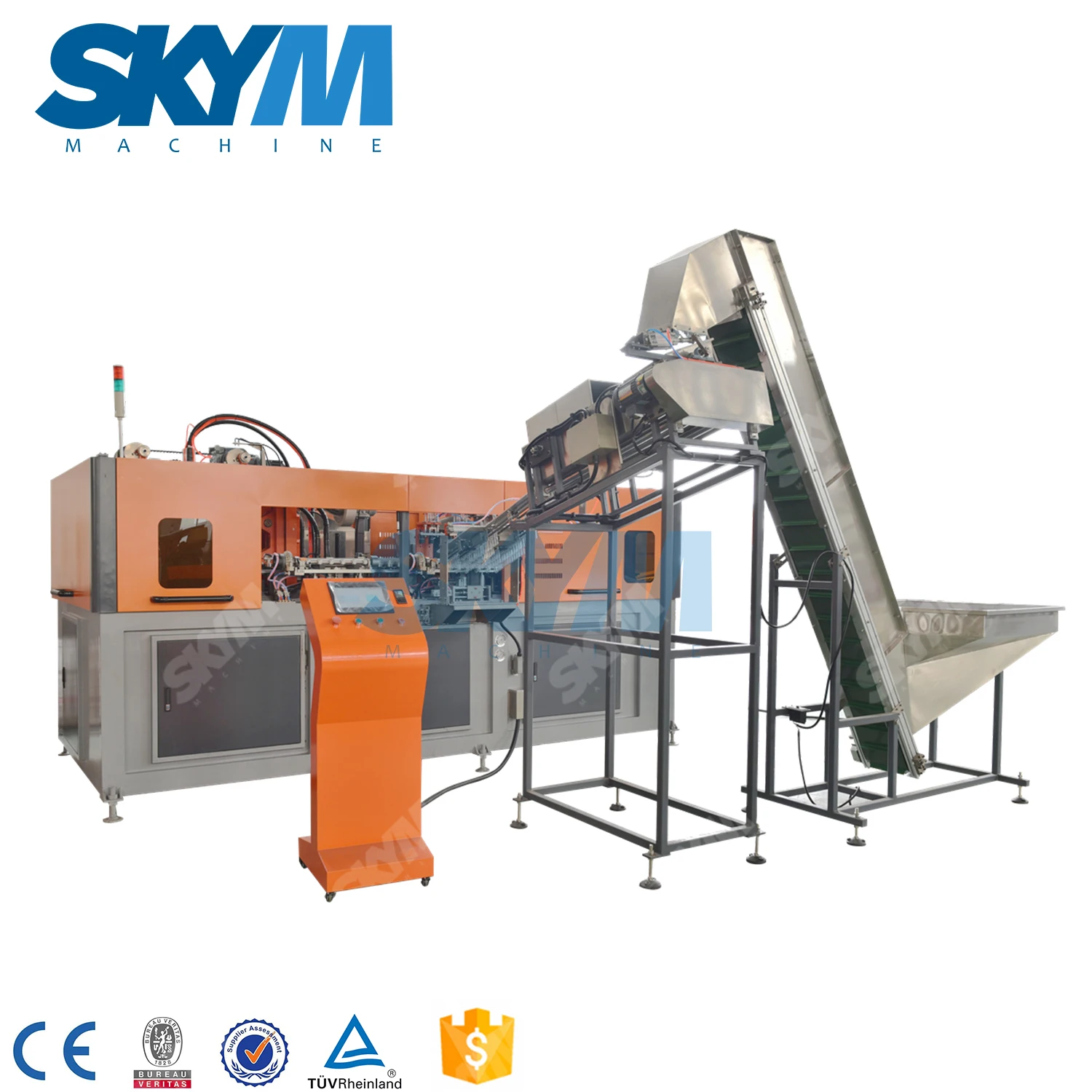

Automatic servo PET bottle blow molding machine

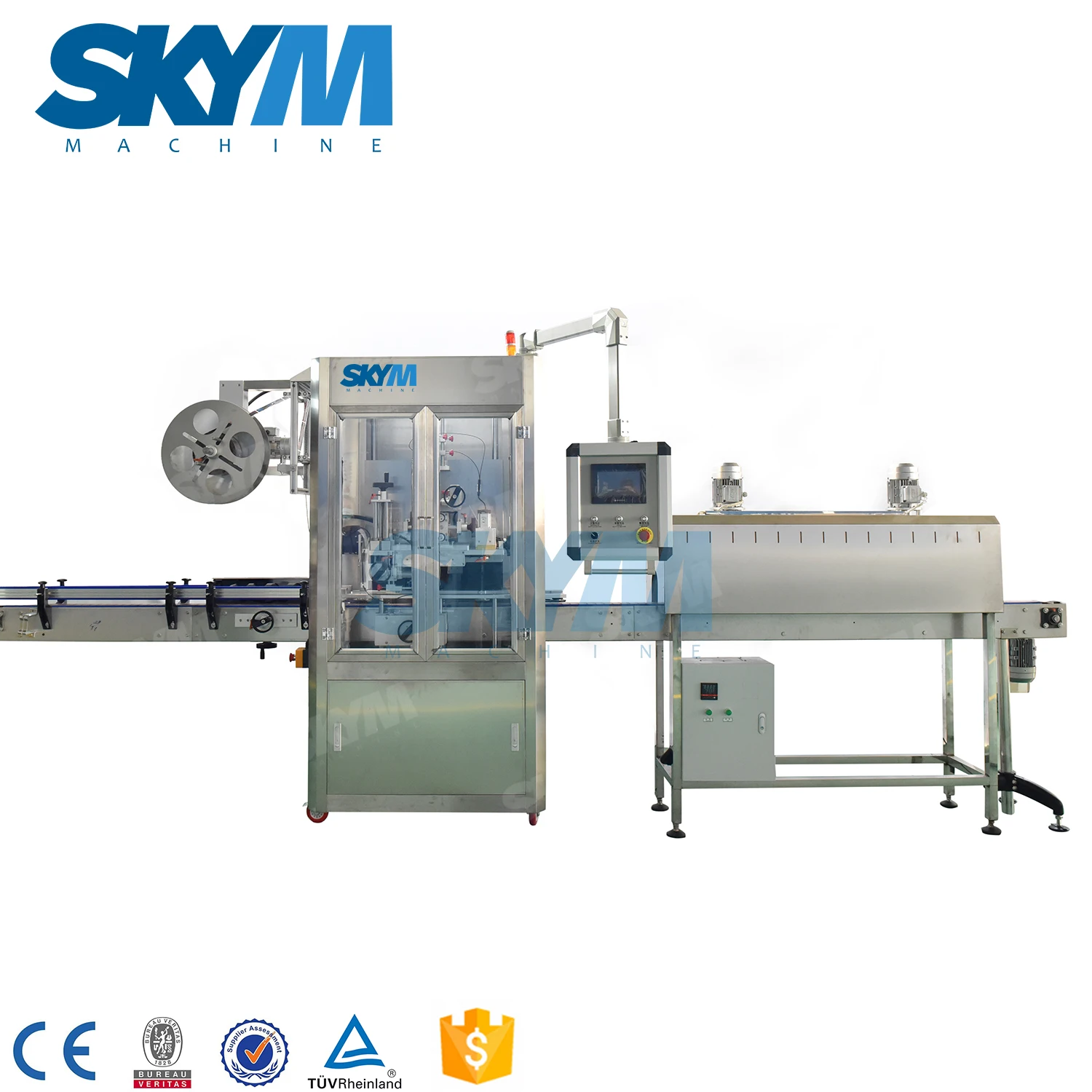

Automatic PVC sleeve shrink labeling machine

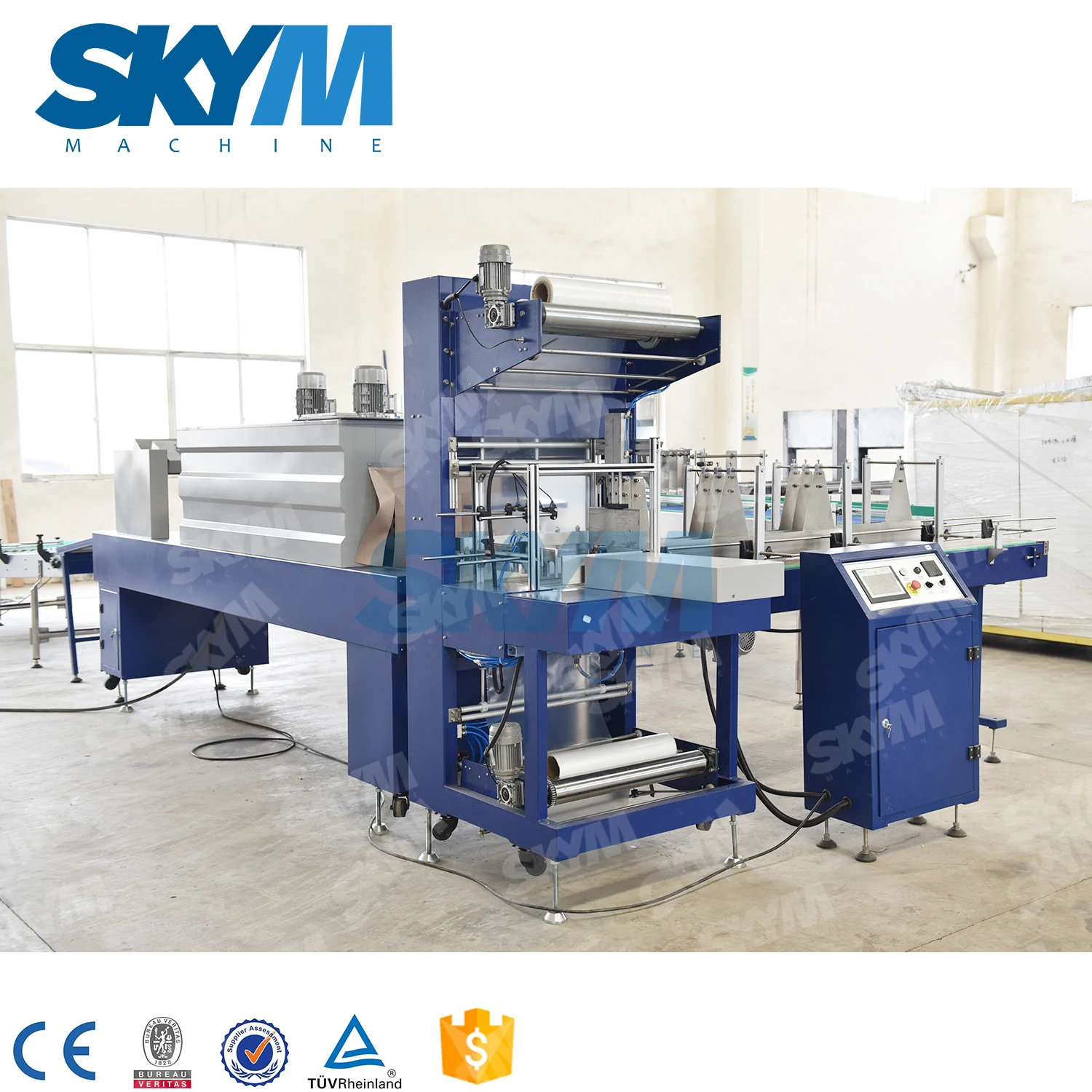

PE Film Shrink Wrapping Machine

Why Choose Us
SKY-Machine
Zhangjiagang Sky Machine Co., Ltd is located in Zhangjiagang City, Jiangsu Province. Our company was found in 2008 .We have more than ten years experience in Beverage machine making .We are devoted to the development, research and production of liquid food & beverage packing industry,plastic bottle blowing machine,injection molding machine.

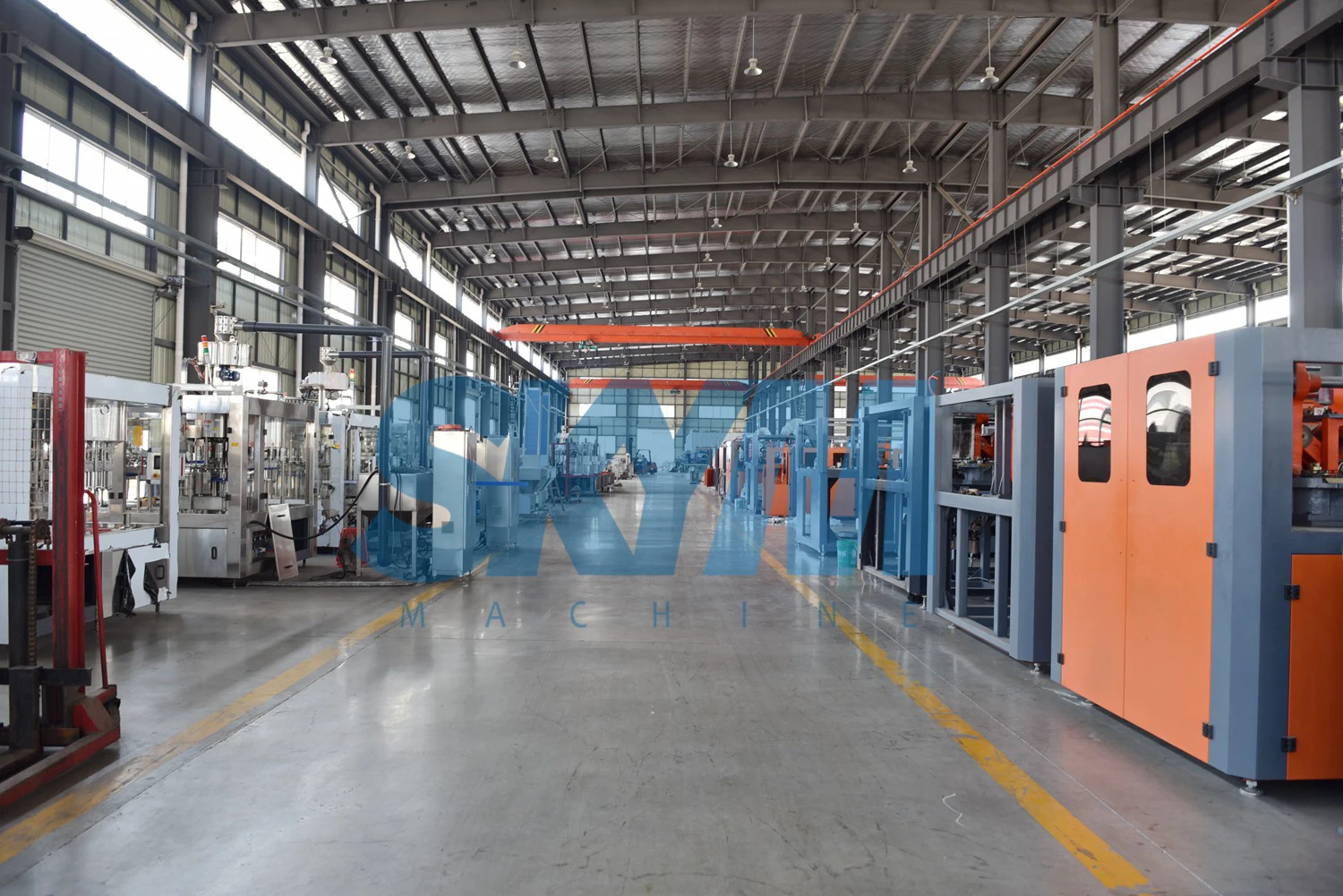

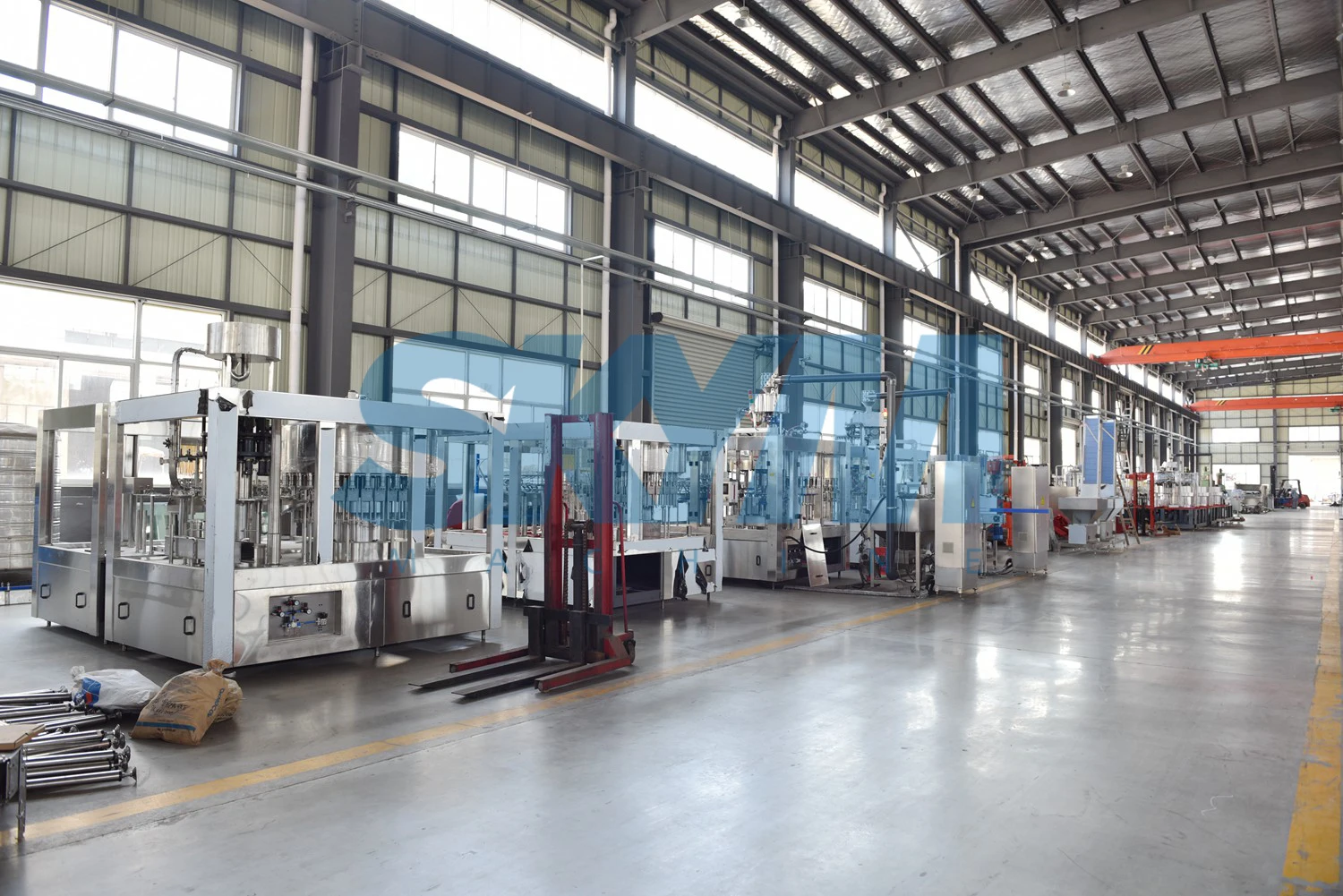

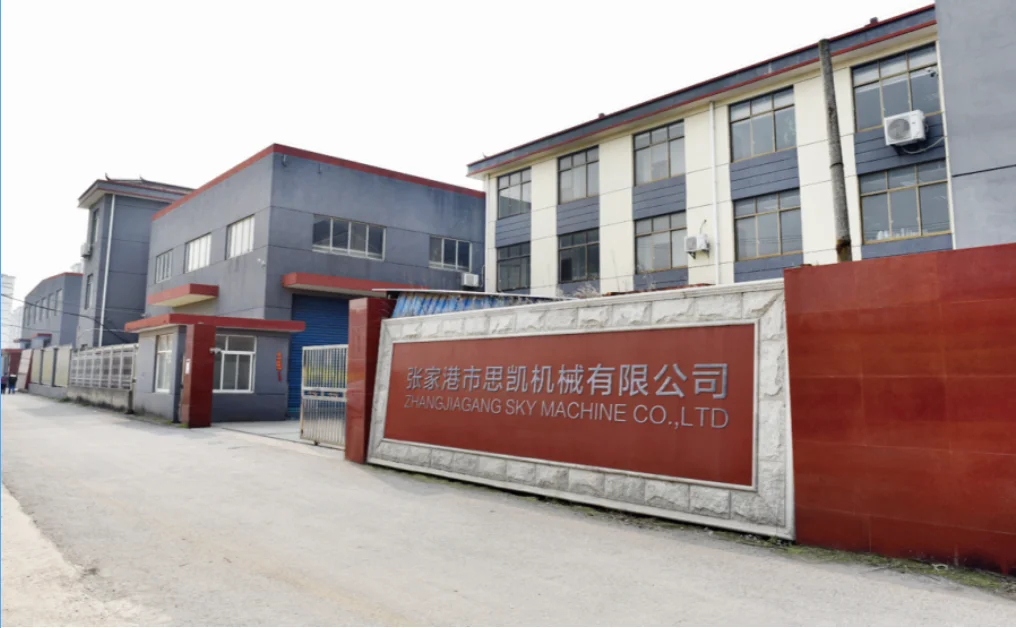

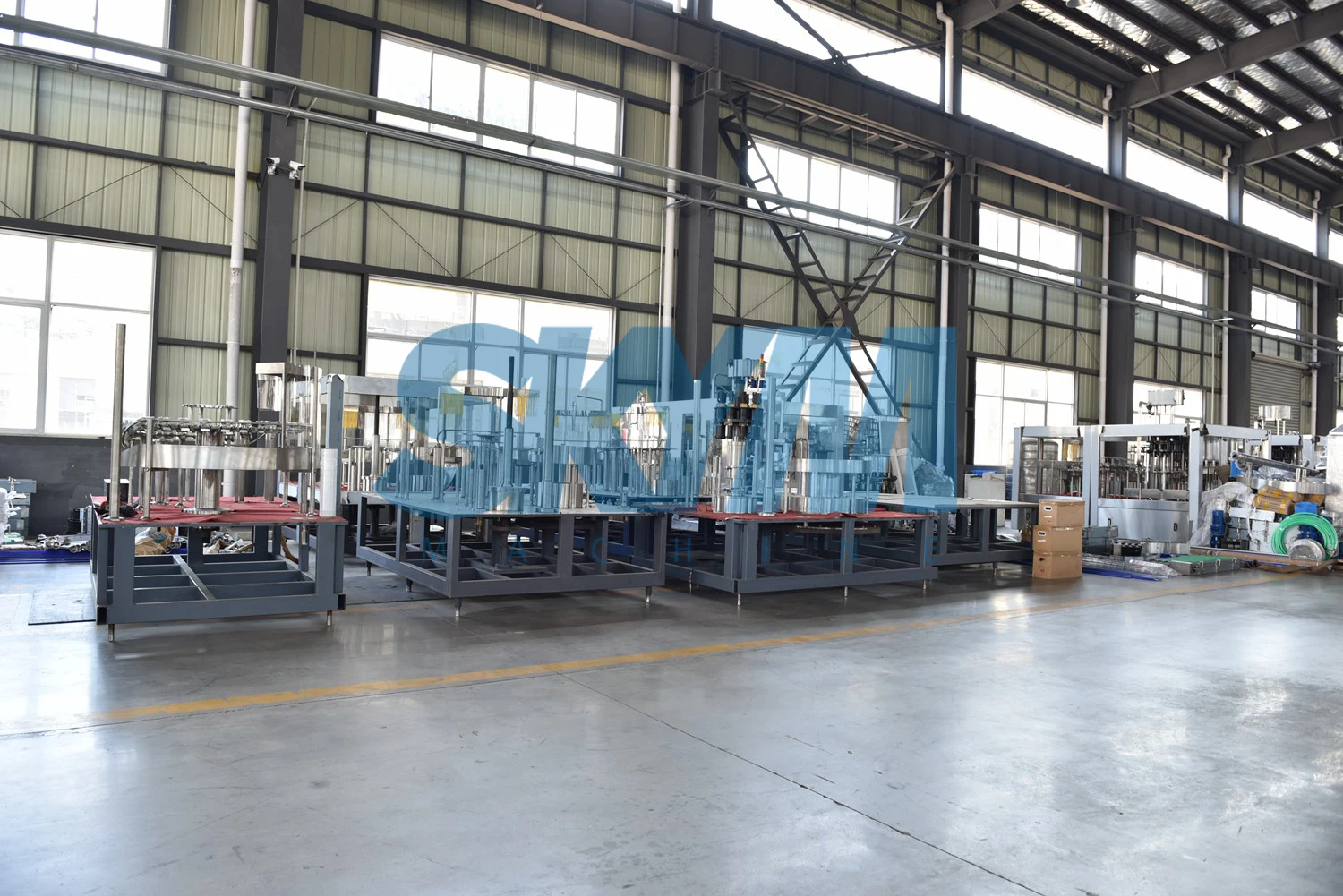

Our Factory

Our main products including: 1. Mineral water/pure water production lines 2. Fruit juice/fruit tea production lines 3. Carbonated beverage production lines 4. 5 gallon jar bottle drinking water production lines 5. Vinegar/oil/wine production lines 6. Complete sets of water treatment plants 7. PET bottle blowing machine8. HDPE bottle blowing machine9. Injection molding machine With advanced technology, scientific management systems and perfect after-sales service, we have won a high reputation among clients.
Our Certificates
All the machines in our company have been approved in CE,SGS,ISO standard.We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.
Our Clients:
Our clients are all over,Germany, Malaysia, Indonesia, Vietnam, Philippines, Bangladesh, UAE, Oman, Ethiopia, Nigeria, Brazil  totally more than thirty countries and regions.And we earned all the clients' good comments. Welcome you to visit our company.

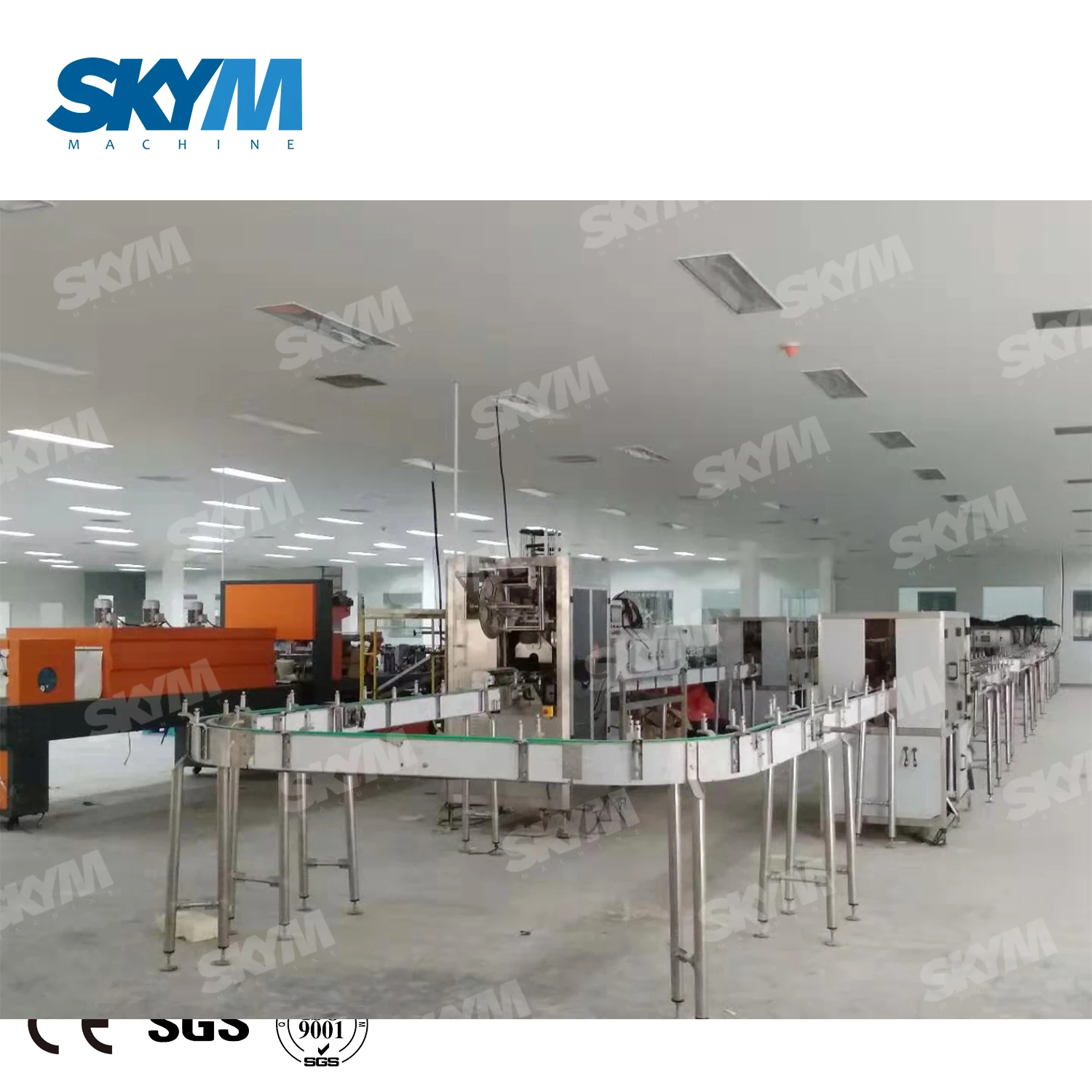

Indonesia Customer Factory

This is our Indonesia customer 12000BPH Carbonated Drink Filling Production Line.

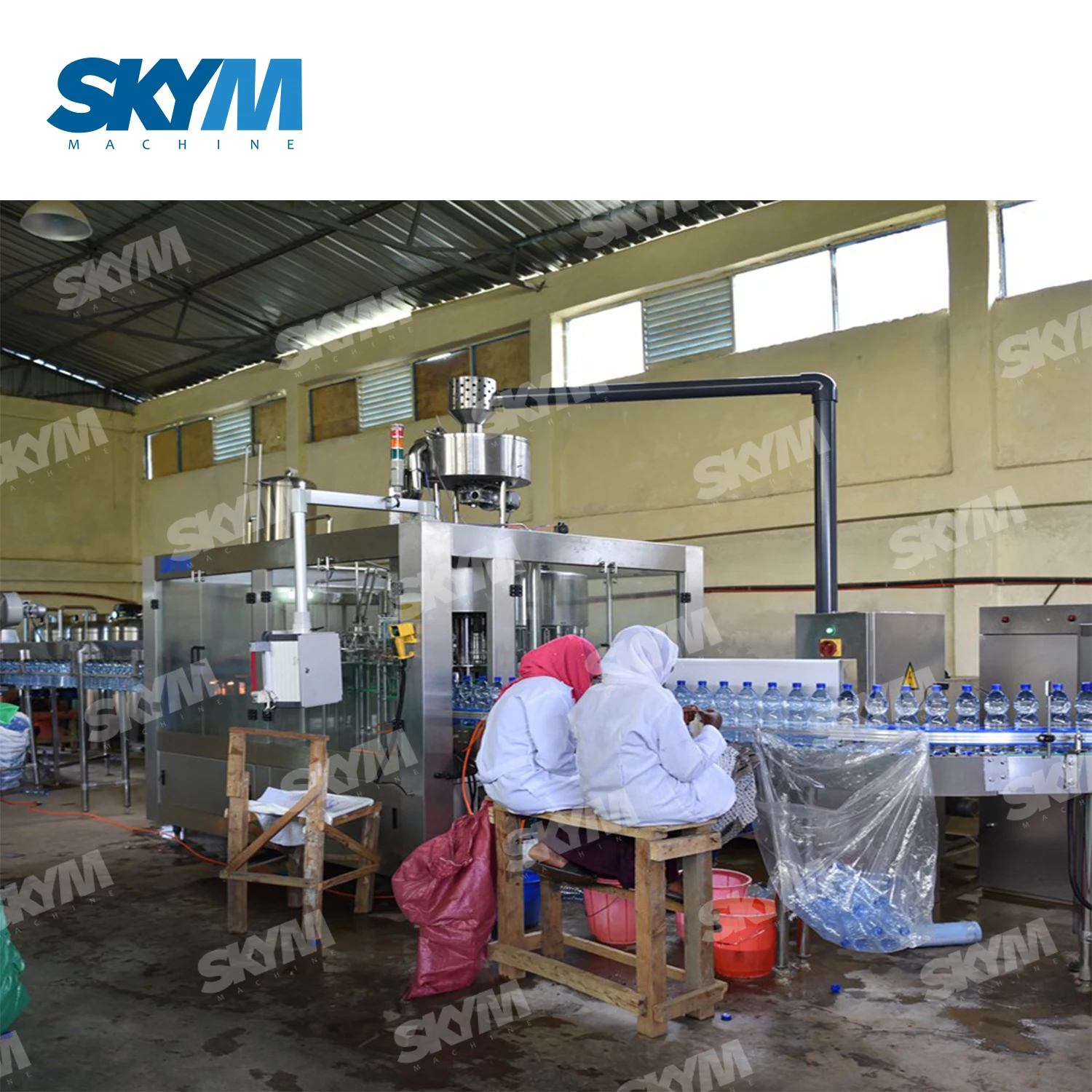

Ethiopia Customer Factory

This is our Ethiopia customer factory installing photo,they brought our water filling line including bottle blow machine,water treatment machine,labeling machine.

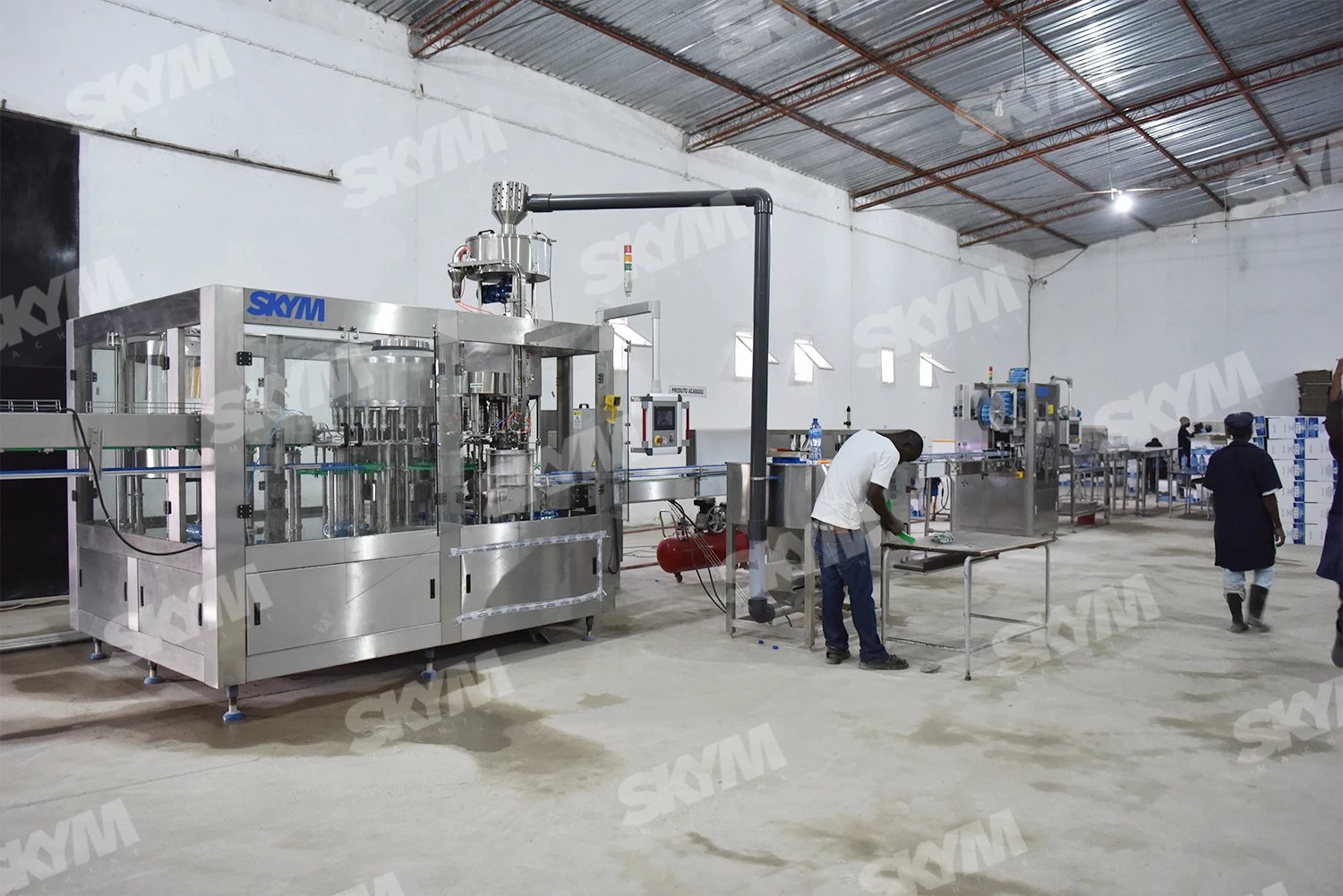

Mozambique Customer Factory

This is our Mozambique customer factory installing photo,they brought our water filling line including water treatment machine,labeling machine.

Malaysia Customer Factory

This is This is our Malaysia customer factory 15000BPH bottle blow machine installing photo.
FAQ
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. our factory is located in zhangjiagang near fromshanghai. We have about 50 workers in our factory.

2. A: What about after sale service?
B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.

3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per
day.besides, customer shouldarrange the accommodation for them during the trip.

4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).

5. A: How can you control the quality and delivery?

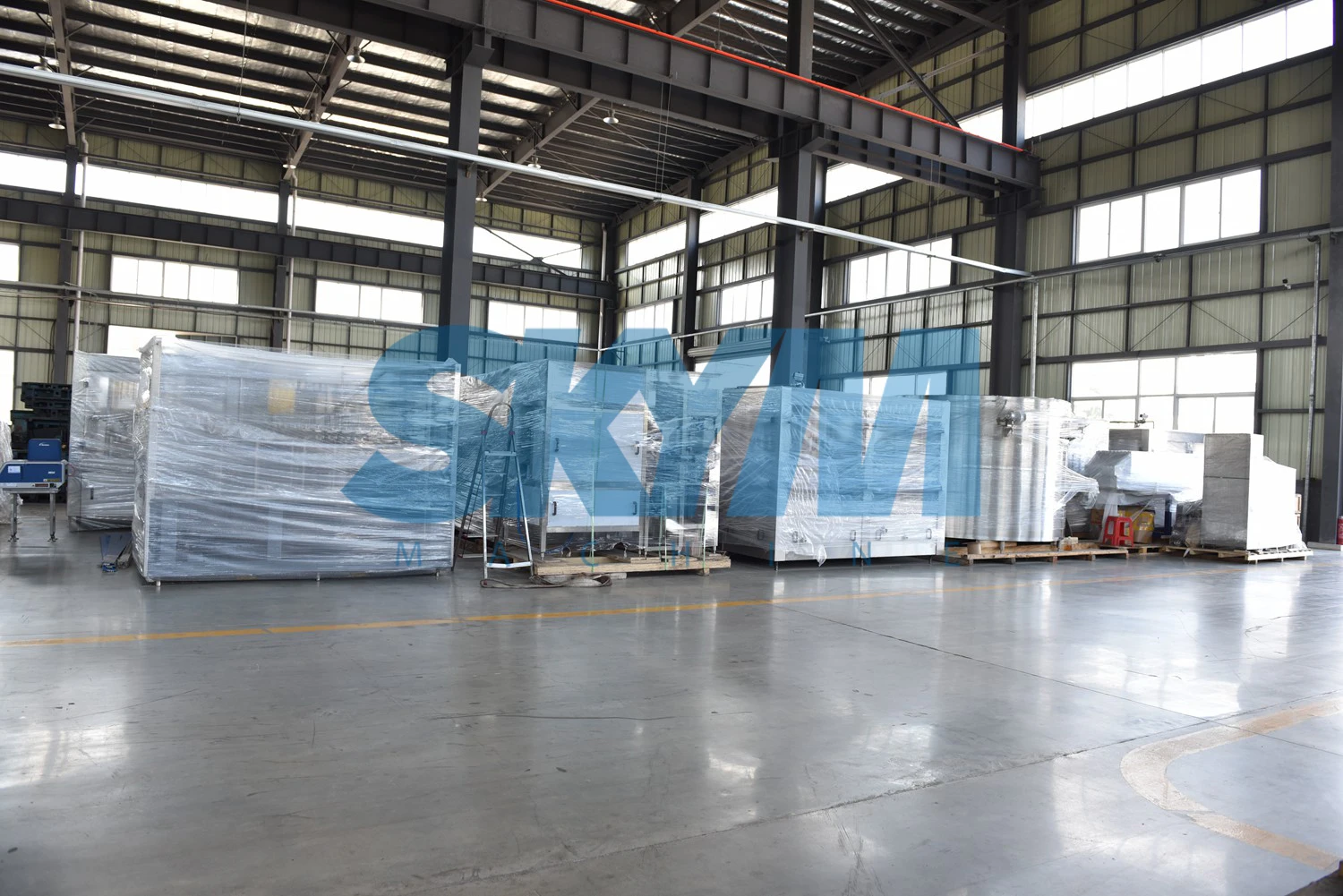

B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
