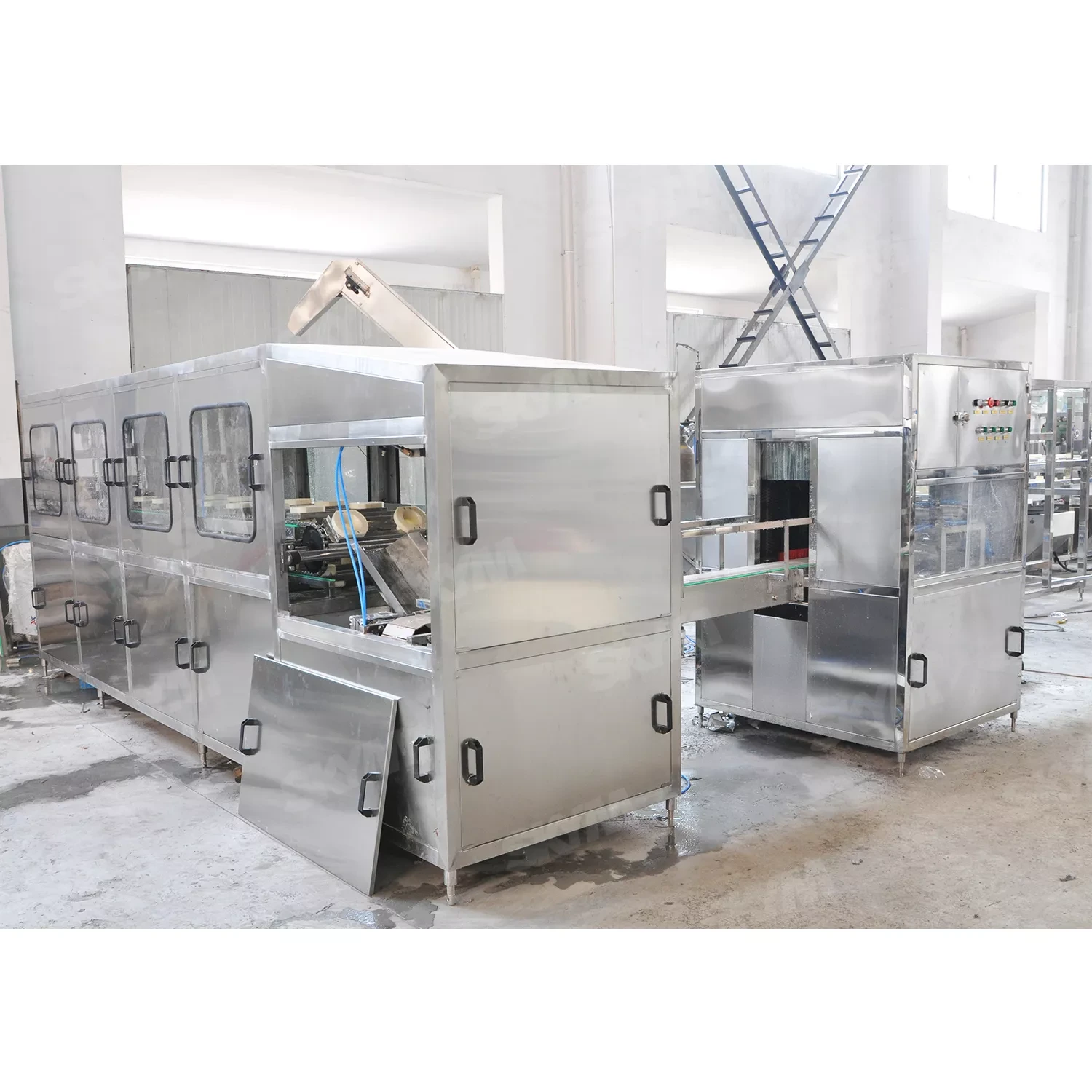

5 Gallon Mineral Water Bottle Filling Machine

5 gallon mineral water bottle filling machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.

Quantity:
  • QGF-300
  • SKYM

5 gallon mineral water bottle filling machine specially for 3-5gallons barreled drink water, with type QGF-100, QGF-240, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200, It intergrates bottle washing, filling and capping into one unit, In order to achieve the purpose of washing and sterilizing, The washing machine use multi-washing liquid spray and-thimerosal spray, This thimerosal can be used circularly, The capping machine can cap barrel automatically , this line equips with water spraying device in order to ensure those caps sterilizer and clean. it also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation, it is a new kind of barreeled water auto-production line, which intergrates mechanism, electricity and pneumatics technologies together .


Main size information


Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 5 6
Volume(L) 18.9 18.9 18.9 18.9 18.9
Capacity(b/h) 100 300 450 600 900
Gas consumption (m3/min) 0.37 0.6 0.8 1 1.5
Moto power (kw) 1.38 3.8 5.6 7.5 9.75
Weight(kg) 680 1500 2100 3000 3500
Size(W*L*H)(m) 0.5*4.0*1.5 0.9*4.0*1.5 1.3*4.0*1.5 1.8*4.0*1.5 2.4*4.0*1.5

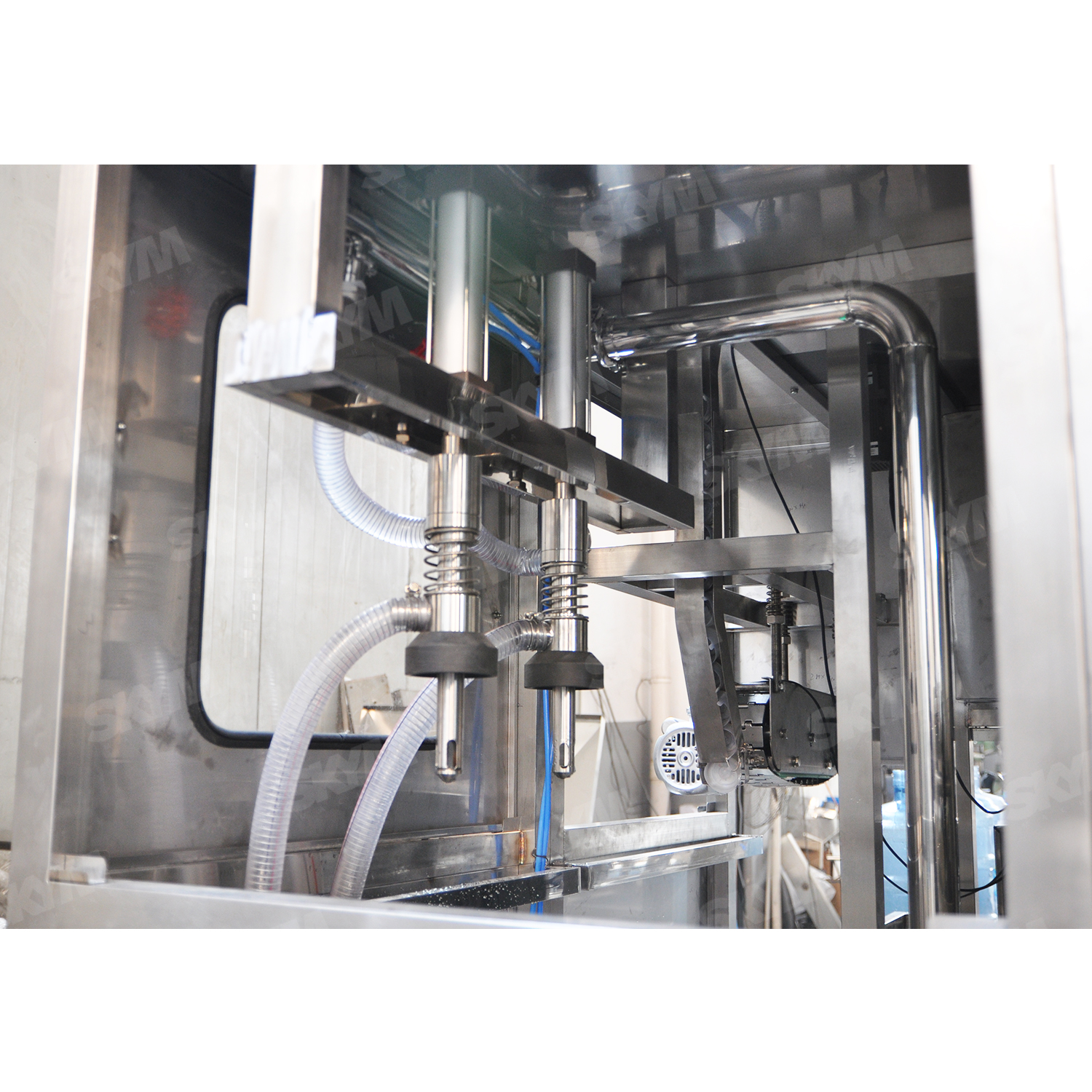

5gallon filling machine




1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine


5gallon filling machine

FQA

1.How can i know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.


2:When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed both side.


3.What certificates you can provide?
Our factory provide the CE,SGS,ISO,and according to some countries,we also can provide the PVOC, COC,SONCAP...etc.
