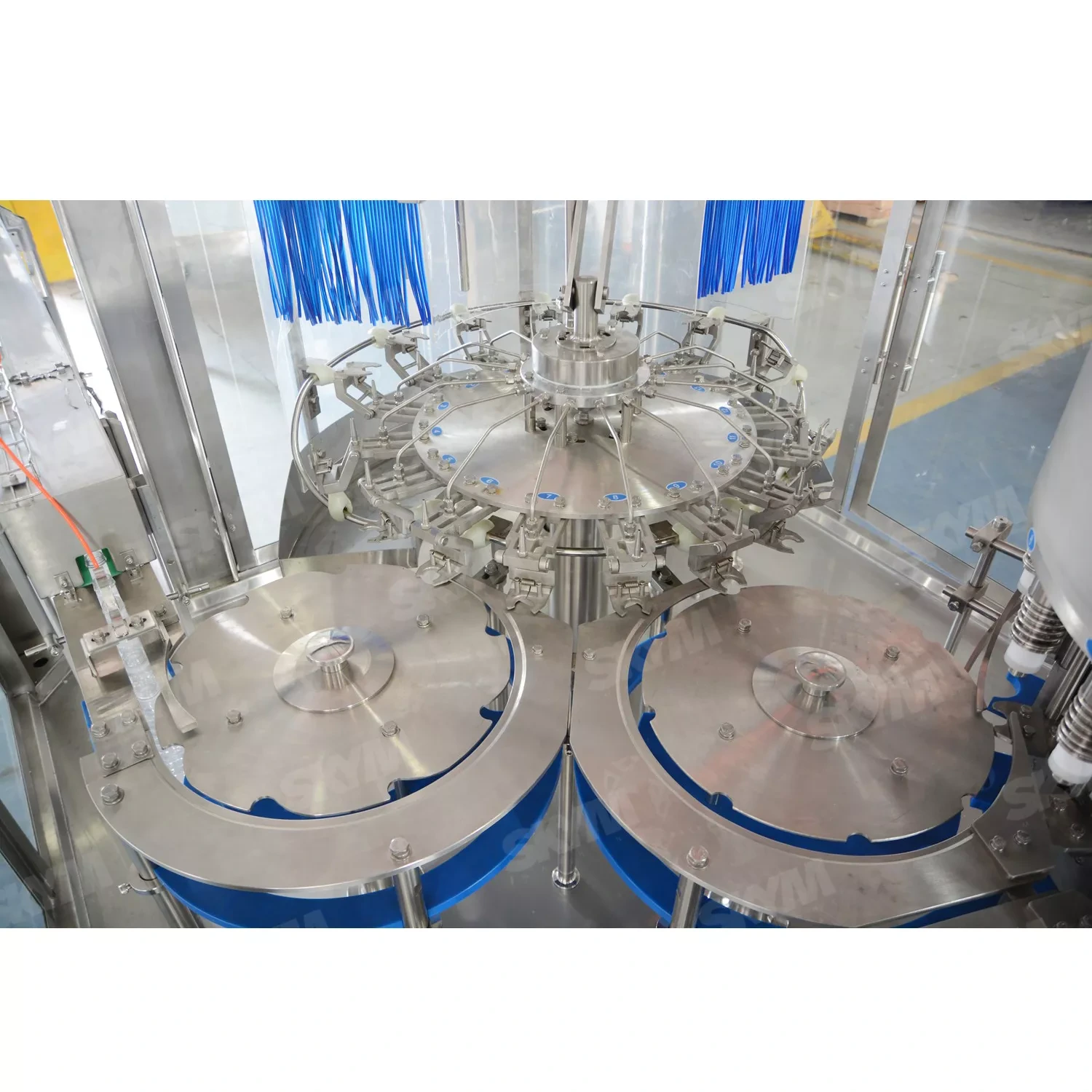

500ml Drinking Water Bottle Filling Machine

Automatic 3 in 1 Bottle Water Filling Machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.
Availability:
Quantity:
  • 24-24-8

  • SKYM

500ml Drinking Water Bottle Filling Machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.

24 heads filling machine


Size information

Model Washing Filling Capping Capacity(b/h) Motor Overall
heads heads heads 500ml power dimension(mm)




(kw)
CGF14-12-5 14 12 5 2000-4000 1.5 2100*1400*2500
CGF18-18-6 18 18 6 5000-7000 2.2 2460*1720*2650
CGF24-24-8 24 24 8 8000-12000 3 3100*2100*2650
CGF32-32-10 32 32 10 12000-15000 4 3500*2500*2650
CGF40-40-10 40 40 10 16000-20000 7.5 4600*1800*2650
CGF48-48-12 48 48 12 20000-24000 9.5 5200*4500*3400
CGF50-50-15 50 50 15 24000-26000 11 5800*4500*3400
CGF60-60-15 60 60 15 26000-30000 12 6500*4500*3400
CGF72-72-18 72 72 18 30000-36000 14 6800*4500*3700

Main feature



Characteristics of Automatic 3 in 1 Bottle Water Filling Machine:

1.Bottles transmission adopt clip bottleneck technology,bottle-shaped transform not need to adjust the equipment level,only change relater the curved plate,wheel and nylon parts is enough.


2.Using the wind sent access and move wheel in the bottle directly connected technology;Canceled screw and conveyor chains,this enable the change the bottle-shaped become easier.


3.High-speed large gravity flow valve filling valve,filling fast,filling accurate and no liquid lose.


3.The specially designed stainless steel bottle washing machine clip is solid and durable,no touch with the screw location of bottle mouth to avoid secondary pollution.


4.Host adopt advanced PLC automatic control technology,the key electrical components from famous company such as Japan,France Schneider.


5.The specially designed stainless steel bottle washing machine clip is solid and durable,no touch with the screw location of bottle mouth to avoid secondary pollution.



6.Spiraling decline when output bottle,transform bottle shape shape no need to adjust the height of conveyor chains.



56

This is the products of our 500ml Drinking Water Bottle Filling Machine.

FQA

1.How can i know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.

2.What certificates you can provide?
Our factory provide the CE,SGS,ISO,and according to some countries,we also can provide the PVOC, COC,SONCAP...etc.

3.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.
