QGF-300
SKYM

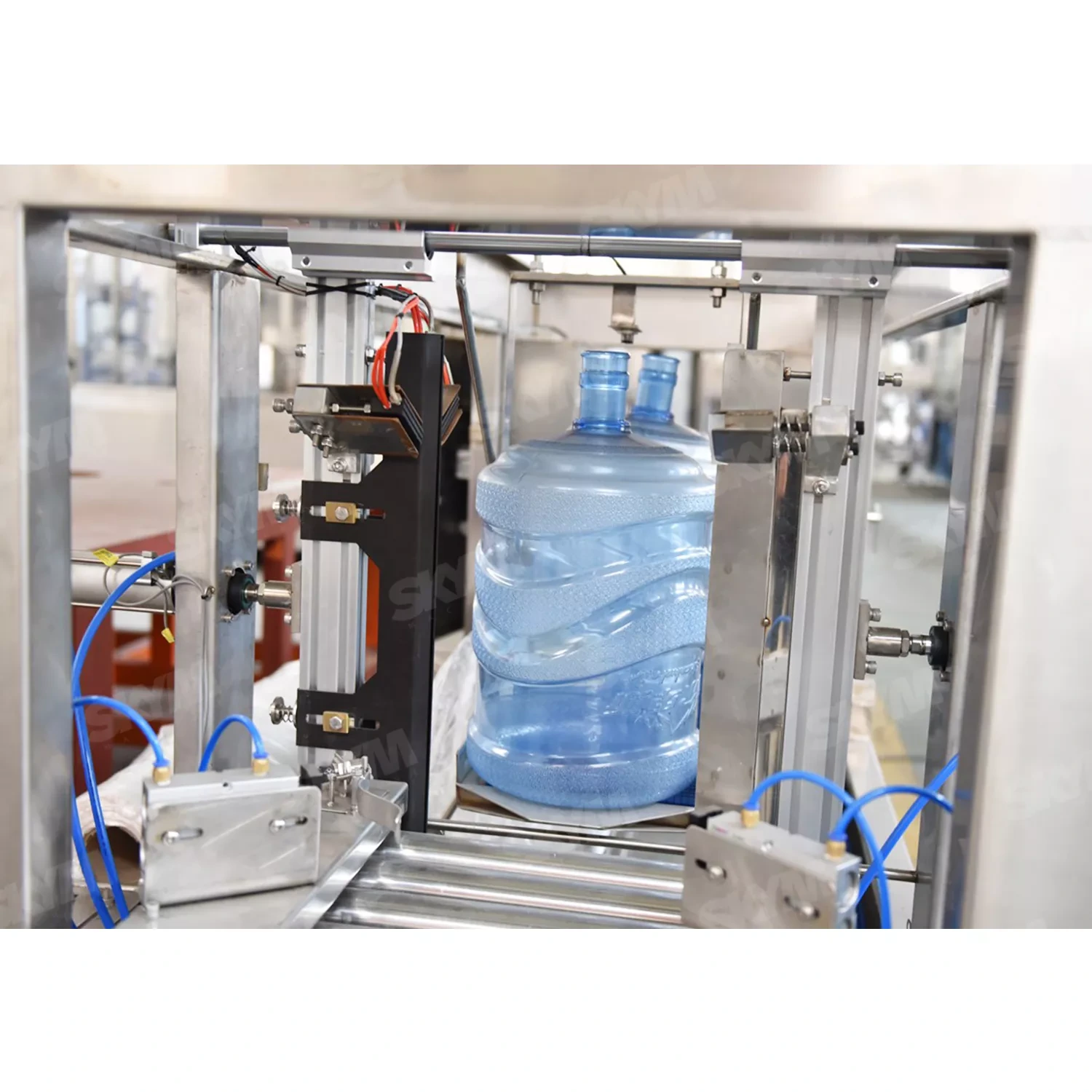

3000BPH 3-5 Gallon Barrel Water Production Line specially for 3-5gallons barreled drink water, with type QGF-100, QGF-240, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200, It intergrates bottle washing, filling and capping into one unit, In order to achieve the purpose of washing and sterilizing, The washing machine use multi-washing liquid spray and-thimerosal spray, This thimerosal can be used circularly, The capping machine can cap barrel automatically , this line equips with water spraying device in order to ensure those caps sterilizer and clean. it also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation, it is a new kind of barreeled water auto-production line, which intergrates mechanism, electricity and pneumatics technologies together .
Main size information
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling heads | 1 | 2 | 3 | 5 | 6 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Capacity(b/h) | 100 | 300 | 450 | 600 | 900 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.8 | 1 | 1.5 |
| Moto power (kw) | 1.38 | 3.8 | 5.6 | 7.5 | 9.75 |
| Weight(kg) | 680 | 1500 | 2100 | 3000 | 3500 |
| Size(W*L*H)(m) | 0.5*4.0*1.5 | 0.9*4.0*1.5 | 1.3*4.0*1.5 | 1.8*4.0*1.5 | 2.4*4.0*1.5 |
3) Rinsing nozzles adopt American spraying system technology.
4) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
6) Pneumatic parts are imported.
FQA
2. How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before sign in, please be sure product undamaged,
otherwise, pls contact with us within 2days, we've bought insurance for you, we or shipping company will be responsible!
