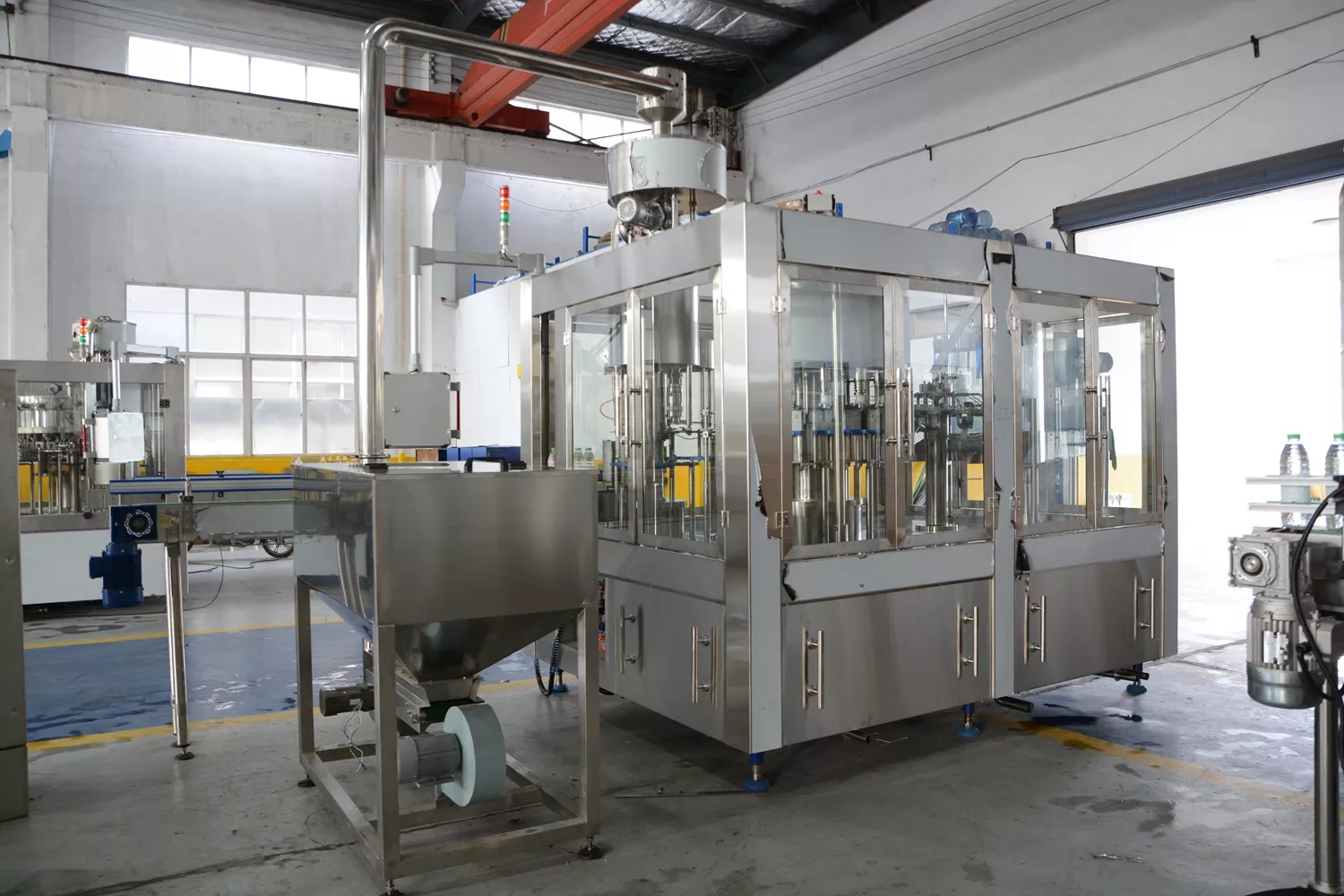

Mineral Water PET Bottle Filling Machine
Mineral Water PET Bottle Filling Machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.
size information
| Model | Washing heads | Filling heads | Capping heads | Capacity(b/h) 500ml | Motor power (kw) | Overall dimension(mm) |
| CGF14-12-5 | 14 | 12 | 5 | 2000-4000 | 1.5 | 2100*1400*2500 |
| CGF18-18-6 | 18 | 18 | 6 | 5000-7000 | 2.2 | 2460*1720*2650 |
| CGF24-24-8 | 24 | 24 | 8 | 8000-12000 | 3 | 3100*2100*2650 |
| CGF32-32-10 | 32 | 32 | 10 | 12000-15000 | 4 | 3500*2500*2650 |
| CGF40-40-10 | 40 | 40 | 10 | 16000-20000 | 7.5 | 4600*1800*2650 |
| CGF48-48-12 | 48 | 48 | 12 | 20000-24000 | 9.5 | 5200*4500*3400 |
| CGF50-50-15 | 50 | 50 | 15 | 24000-26000 | 11 | 5800*4500*3400 |
| CGF60-60-15 | 60 | 60 | 15 | 26000-30000 | 12 | 6500*4500*3400 |
| CGF72-72-18 | 72 | 72 | 18 | 30000-36000 | 14 | 6800*4500*3700 |
Main Feature
-This machine has a compact structure, perfect control system, easy to operate and highly automated.
-The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
- By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
-The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
-This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
-Equipped with perfect clean management system to ensure the bottle clean.
- Only by changing the star-wheel, can realize to fill the changed bottle shape.
-The machine adopts perfect overload protective device can ensure the operator and machine safe.
-This machine adopts adjustable frequency converter.
-The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
- The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
-The electric components and pneumatic components are all introduced from world famous brand products.

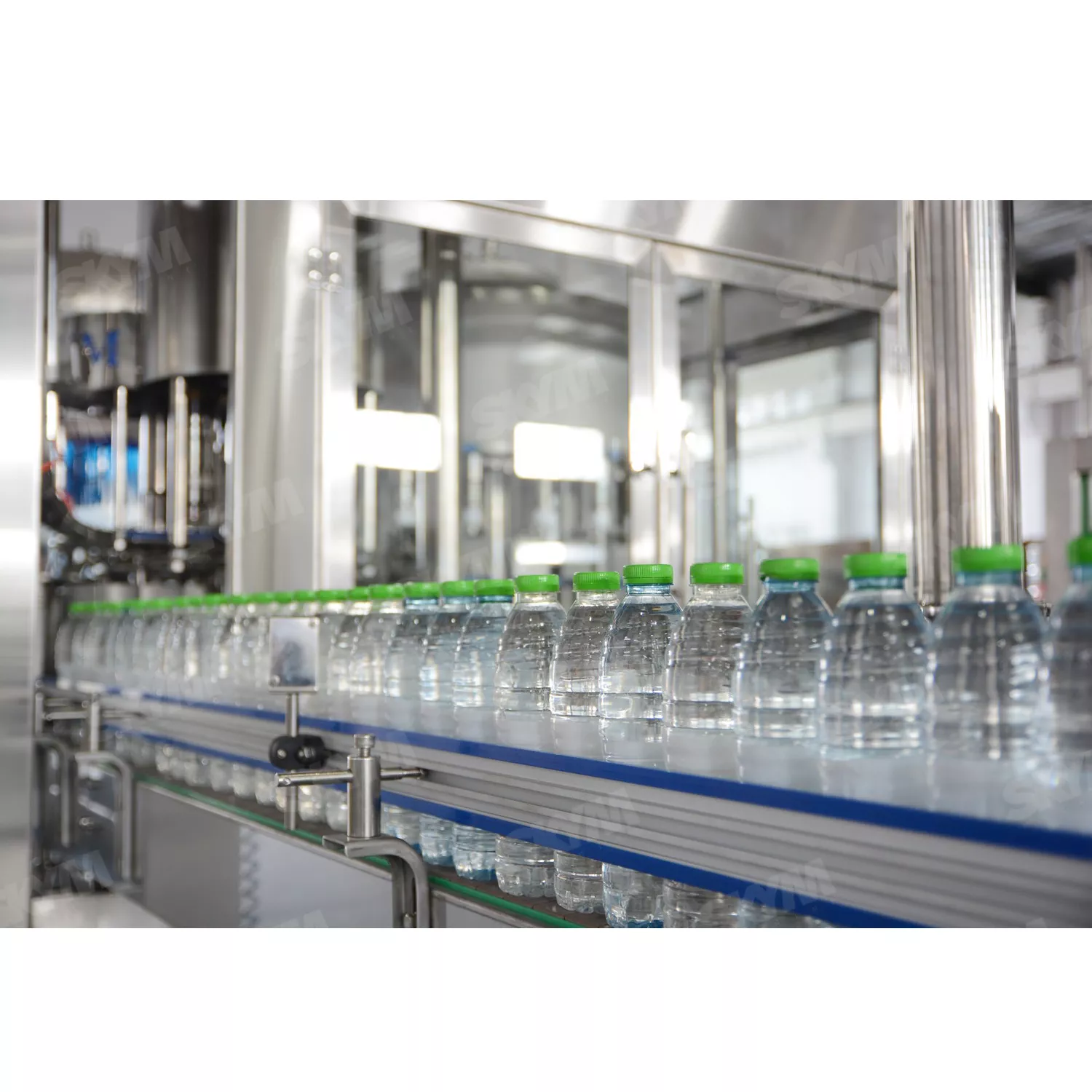

This is the products of our mineral water bottle filling machine.
FAQ
1.Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.
2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.
