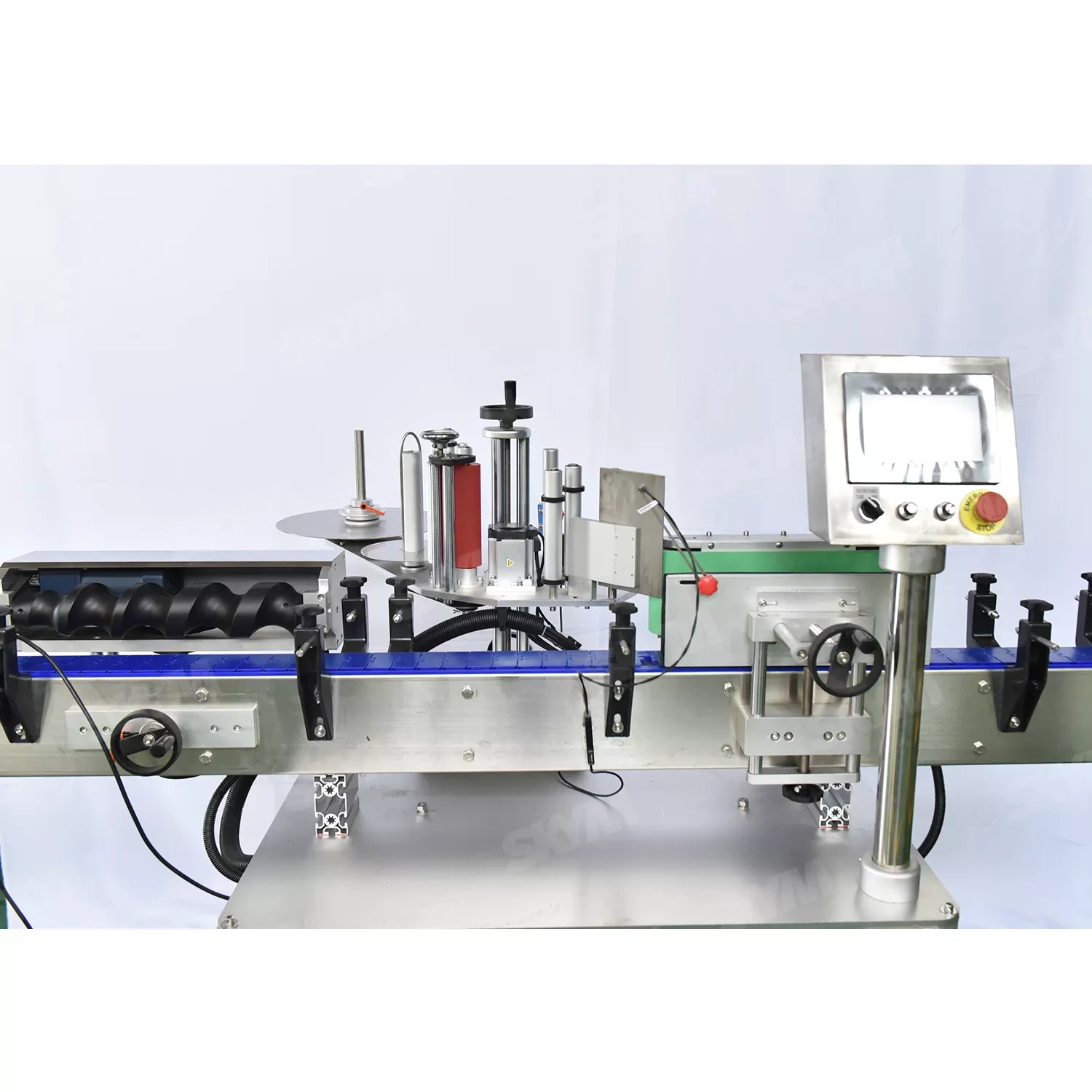

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 1

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 2

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 3

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 4

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 5

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 6

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle is used for water /juice/food/daily chemical bottles labeling.

Brand:

SKYM

Inquiry

Write a Review

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 7

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 8

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 9

Product Description

 1.High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle used in Taiwan original technology and design concept from Germany carried out on the improvements made.
2,device uses a large touch screen, easy operation, parameter display glance, truly interactive.
3,Japan Mitsubishi PLC control system, more stable performance.
4,measuring objects using Omron photoelectric sensors, sensing objects higher sensitivity.
5,Omron Japan / Taiwan FOTEK label of photoelectric sensors, sensing a sensitive, easy to adjust.
6,using German technology KINCO a standard motor, stable performance, high labeling accuracy.
7,using matching motor drive signal is never distorted.
8,using the French Schneider inverter speed, more stable performance.
9,large control box, the internal electrical heat easier, convenient detection, increase firmness.
10,high quality stainless steel and aluminum alloy.
11,anodized aluminum surface sandblasted, higher strength, beautiful appearance.
12,send standard buffer device, make sure that the job is not pulled off the label during.
13,closed end of paper patented design to ensure the collection of paper is not pulled off.
14,equipment motor coordination, running smooth and stable, durable, long service life.
15,main electrical components are well-known products, parts by unified action solid resistance and connecting a computer numerical control machine tool precision machining, parts are well protected, prolonged use will not be any problems.

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 10

Specification

Model	SKY-TY120
Conveyor height	880mm
Labeling speed	20-200pcs/min (Depending on bottle size and label length)
Bottle height	30-280mm
Bottle diameter	30-120mm
Label height	15-140mm
Label length	25-300mm
Labeling accuracy	±1mm
Inner diameter of paper roll	76mm
Machine size	2200(L)×1100(W)×1300(H)mm
Machine weight	240kg

Device Structure

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 11

Head motherboard

 Using 20mm thick aluminum plate, the overall planing mill treatment to ensure surface flatness. Anodized aluminum surface
treatment, sandblasting process to ensure that the hardness and appearance. All guides are used to send standard sink-hole process
to ensure that no verticality with guides to ensure delivery subject stability. Head motherboard using the most advanced CNC
machining centers to ensure the accuracy of every size.

Label Feeder

 Send scaler 5-axis positioning mechanism, which greatly ensure stability during delivery standard. Subscript label feed roller 2 /3 near the contact area to avoid a great slip the label and the roller, to improve the accuracy of delivery targets. Send and receive standard synchronous standard skid control, to avoid the label pulled off .

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 12

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 13

Touch Screen

 Taiwan Winview touch screen with high-quality large touch screen, interactive, easy to operate And outside touch screen plus a protective cover .

Cabinet

 Chassis is made of 304 stainless steel fully sealed structure, effectively prevent dust and water from entering.

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 14

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 15

Base

 The bottom of the nose fully sealed structure to avoid the risk of the occurrence of.

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 16

Frequency converter

 Using the French Schneider inverter, stable performance.

High Technology Self Adhesive Sticker Labeling Machine for Flat Bottle 17

PLC

Japan's Mitsubishi Electric PLC and quality performance and stability.

FAQ

1. A: Are you factory?How many workers do you have? B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory. 2. A: What about after sale service? B: 12months of electrical part and 18months of mechanical part after machine installed and running normally. 3. A: What about installation? B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip. 4. A: What do we do if we encounter problem about the machine ? B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip). 5. A: How can you control the quality and delivery? B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery
