Full Automatic Round/Square Bottle One-Side/Double-Side Self Adhesive Sticker Labeling Machine
This machine is applicable to single-sided or double-sided labeling on flat, square and round water juice beverage bottles,such as double-sided labeling on shampoo flat bottles, lubricant flat bottles,hand sanitizer bottles etc. double labels labeling at the same time, which obviously improve the production efficiency. It is widely used in cosmetics, household chemicals, electronics, pharmaceutics, hardware,plastic and other industries.
Product parameters
| Note | It could independently work,also could be joined with the production line. |
| Suitbale bottle | glass bottle, plastic bottle, round bottle, square bottle and taper bottle. |
| Caution function | no colored tape,label lack and label break |
| Diameter of the bottle | 10-120mm |
| Height of the bottle | 20-300mm |
| Inside diameter of the label roll | 76mm |
| Outside diameter of the label roll | 300mm |
| Labeling speed | 200-400bottle/minute |
| Accuary error | ±0.5(Based on the circle angle and perpendicularity of the bottle) |
| Electric power | 220V, 50/60HZ, 1.2KW |
| Dimension | 1500*800*1300mm |
| Weight | 220kg |
| Providing bottles turntable | 60kg |
Main Facture
◉ The equipment used in Taiwan original technology and design concept from Germany carried out
on the improvements made.
◉ Device uses a large touch screen, easy operation, parameter display glance, truly interactive.
◉ Japan Mitsubishi PLC control system, more stable performance.
◉ Measuring objects using Omron photoelectric sensors, sensing objects higher sensitivity.
◉ Omron Japan / Taiwan FOTEK label of photoelectric sensors, sensing a sensitive, easy to adjust.
◉ Using German technology KINCO a standard motor, stable performance, high labeling accuracy
◉ Using matching motor drive signal is never distorted
◉ Using the French Schneider inverter speed, more stable performance
◉ Large control box, the internal electrical heat easier, convenient detection, increase firmness.
◉ High quality stainless steel and aluminum alloy.
◉ Anodized aluminum surface sandblasted, higher strength, beautiful appearance.
◉ Send standard buffer device, make sure that the job is not pulled off the label during
◉ Closed end of paper patented design to ensure the collection of paper is not pulled off
◉ Equipment motor coordination, running smooth and stable, durable, long service life.
◉ Main electrical components are well-known products, parts by unified action solid resistance and connecting a computer numerical control machine tool precision machining, parts are well protected, prolonged use will not be any problems.
Technical Characters
◉ Touch Screen
Taiwan Winview touch screen with high-quality large touch screen, interactive, easy to operate And outside touch screen plus a protective cover .(Many domestic manufacturers are retrofitting)

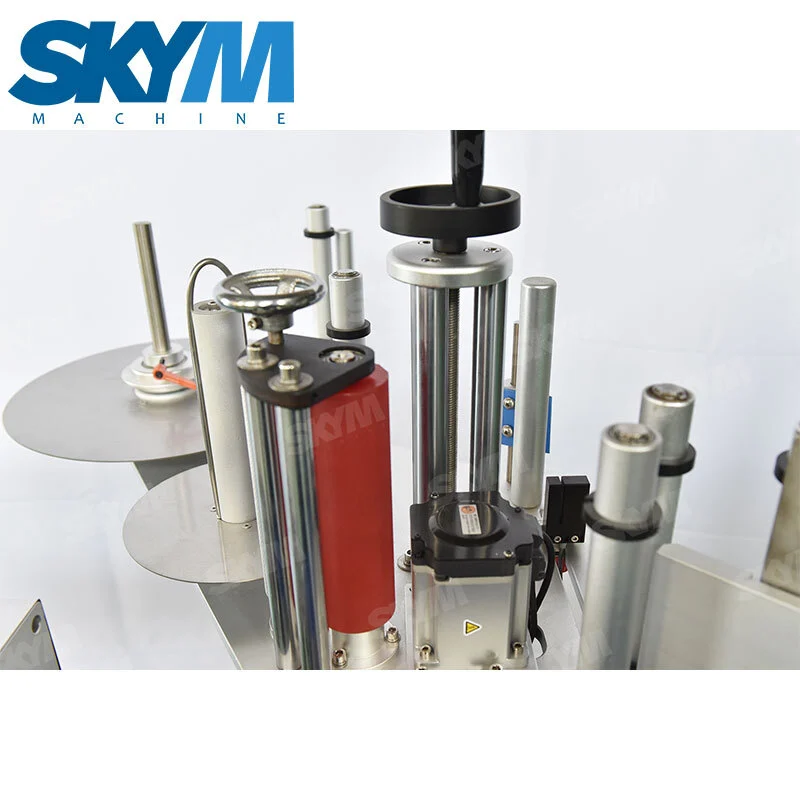

◉ Label Feeder
Send scaler 5-axis positioning mechanism, which greatly ensure stability during delivery standard. Subscript label feed roller 2 /3 near the contact area to avoid a great slip the label and the roller, to improve the accuracy of delivery targets. Send and receive standard synchronous standard skid control, to avoid the label pulled off .(Most of manufacturers structures are very simple)
◉ Separating wheel
The purpose of this part is to separate the bottles to facilitate the labeling，it is fully automatic and high speed .
