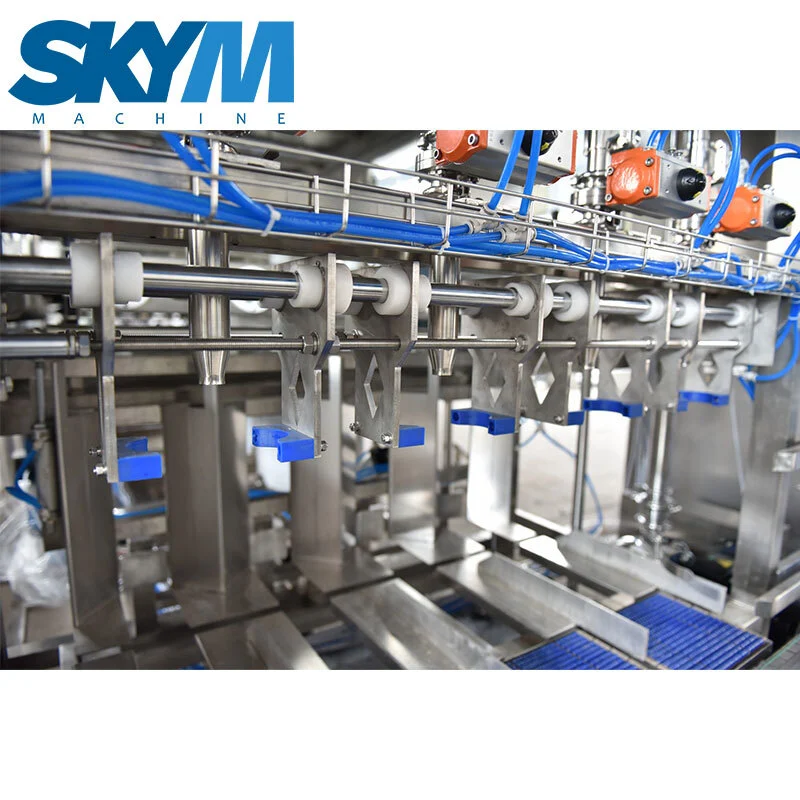

Automatic Linear Type 10L 19L 20L 3 Gallon 5 Gallon Barrel Purified Water Filling Machine 1

Automatic Linear Type 10L 19L 20L 3 Gallon 5 Gallon Barrel Purified Water Filling Machine 2

Automatic Linear Type 10L 19L 20L 3 Gallon 5 Gallon Barrel Purified Water Filling Machine 3

Automatic Linear Type 10L 19L 20L 3 Gallon 5 Gallon Barrel Purified Water Filling Machine 4

Automatic Linear Type 10L 19L 20L 3 Gallon 5 Gallon Barrel Purified Water Filling Machine 5

Automatic Linear Type 10L 19L 20L 3 Gallon 5 Gallon Barrel Purified Water Filling Machine 6

Automatic Linear Type 10L 19L 20L 3 Gallon 5 Gallon Barrel Purified Water Filling Machine

Name: Automatic Linear Type 10L 19L 20L 3 Gallon 5 Gallon Barrel Purified Water Filling Machine
Uploaded: 2026-05-06T16:13:39+08:00
Description: QGF series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water.This machine is consisted of rinser,filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing.

QGF series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water.This machine is consisted of rinser,filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing.

Inquiry

Write a Review

Product parameters

Model (QGF)		150	300	450	600	900
Production capacity (BPH)		150BPH	300BPH	450BPH	600BPH	900BPH
Filling nozzle		1	2	2	4	8
Power supply	Main motor	5.3kw	5.3kw	8kw	10.6kw	15.9kw
Power supply	Heating	6kw	6kw	6kw	6kw	9kw
Compressed air	Air pressure	0.4--0.6Mpa	0.4--0.6Mpa	0.4--0.6Mpa	0.4--0.6Mpa	0.4--0.6Mpa
Compressed air	Consumption	0.18m3/min	0.18m3/min	0.5m3/min	0.8m3/min	1.2m3/min
Alkali liquor	Inside washing	18s × 1	18s × 1	18s × 2	18s × 2	18s × 2
Recycling water	Inside Rinsing	18s × 2	18s × 2	18s × 1	18s × 1	18s × 1
Recycling water	Outside washing	18s × 1	18s × 1	18s × 1	18s × 1	18s × 1

Product Overview

The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The wholeproduction line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.QGF barrel

production line is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideal for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing.

Cap Decapper

This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps. It adopts computer

control and its capacity can be adjusted.Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth.And increases cap pulling success greatly. 304 stainless machine frame and machine body.

Brusher Part

Function: clean the inside and outside of 5 gallon bottles with brush and water.

◉ Rotary style to wash the bottle body.

◉ Material of machine frame and body: all 304 Stainless Steel.

◉ All 304 stainless steel pipeline , valve and connector, fine polish, no death corner

◉ Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs

◉ Water pump: with 304 stainless steel pump
