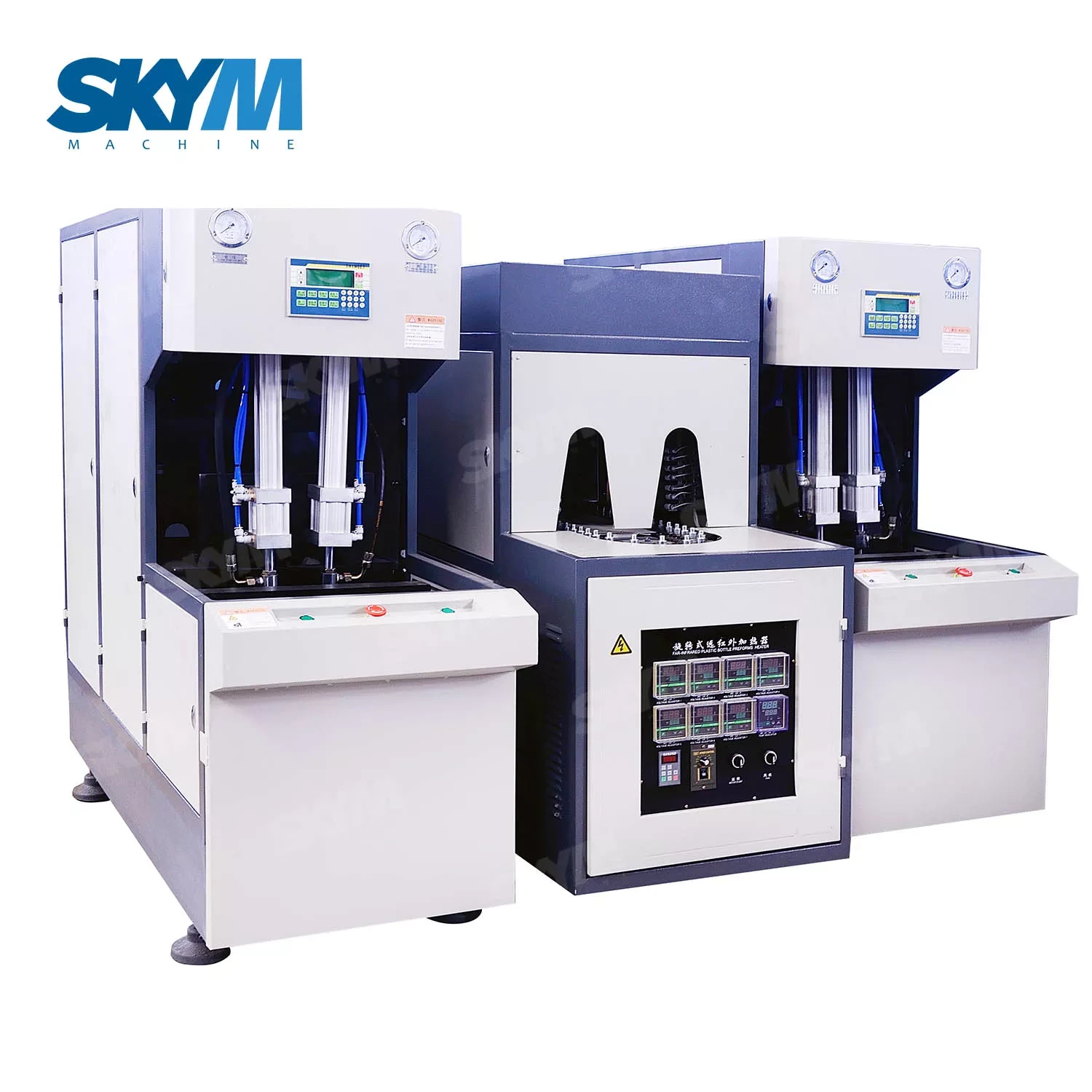

5 Gallon Plastic Water Bottle Blow Molding Machine

5 Gallon Plastic Water Bottle Blow Molding Machine is a linear bottle blowing machine which is developed and researched by the most advanced bottom making technology in the current world and molded through blowing PET(Polyethylene Terepthalate)by high pressure compressed gas.

Quantity:
  • SKY-8Y
  • SKYM
Product Description

Product Application

5 Gallon Plastic Water Bottle Blow Molding Machine is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
•Adopting double crank to adjust mold, heavy locking mold, stable and fast,. Adopt infrared oven to heat the perform, the perform rotated and heated equally.
•The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
•The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.

Main Technical Date
Model
SKY-12
SKY-8Y
SKY-SA4
SKY-5L
SKY-10L
Bottle Volume
10L-25L
0.01L-2L
0.01L-2.5L
0.01L-5L
5L-10L
Theoretical Output
90-180pcs/h
1200-1600pcs/h
2000pcs/h
300-800pcs/h
300-500pcs/h
Blower(L*W*H)
218*77*196cm
160*60*161cm
190*88*180cm
175*67*186cm
193*72*183cm
Blower/Weight
1000kg
500kg
1000kg
600kg
800kg
Heater(L*W*H)
237*68*135cm
187*63*145cm
190*66*160cm
187*63*145cm
187*63*145cm
Heater/Weight
380kg
250kg
380kg
250kg
250kg
Power
40kw
17.5kw
18kw
17.5kw
17.5kw
Detailed Images
erent shapes.

FAQ

1. A: Are you factory?How many workers do you have?

   B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.


2. A: What about after sale service?
   B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.


3. A: What about installation?
   B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.


4. A: What do we do if we encounter problem about the machine ?
   B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).


5. A: How can you control the quality and delivery?
   B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
