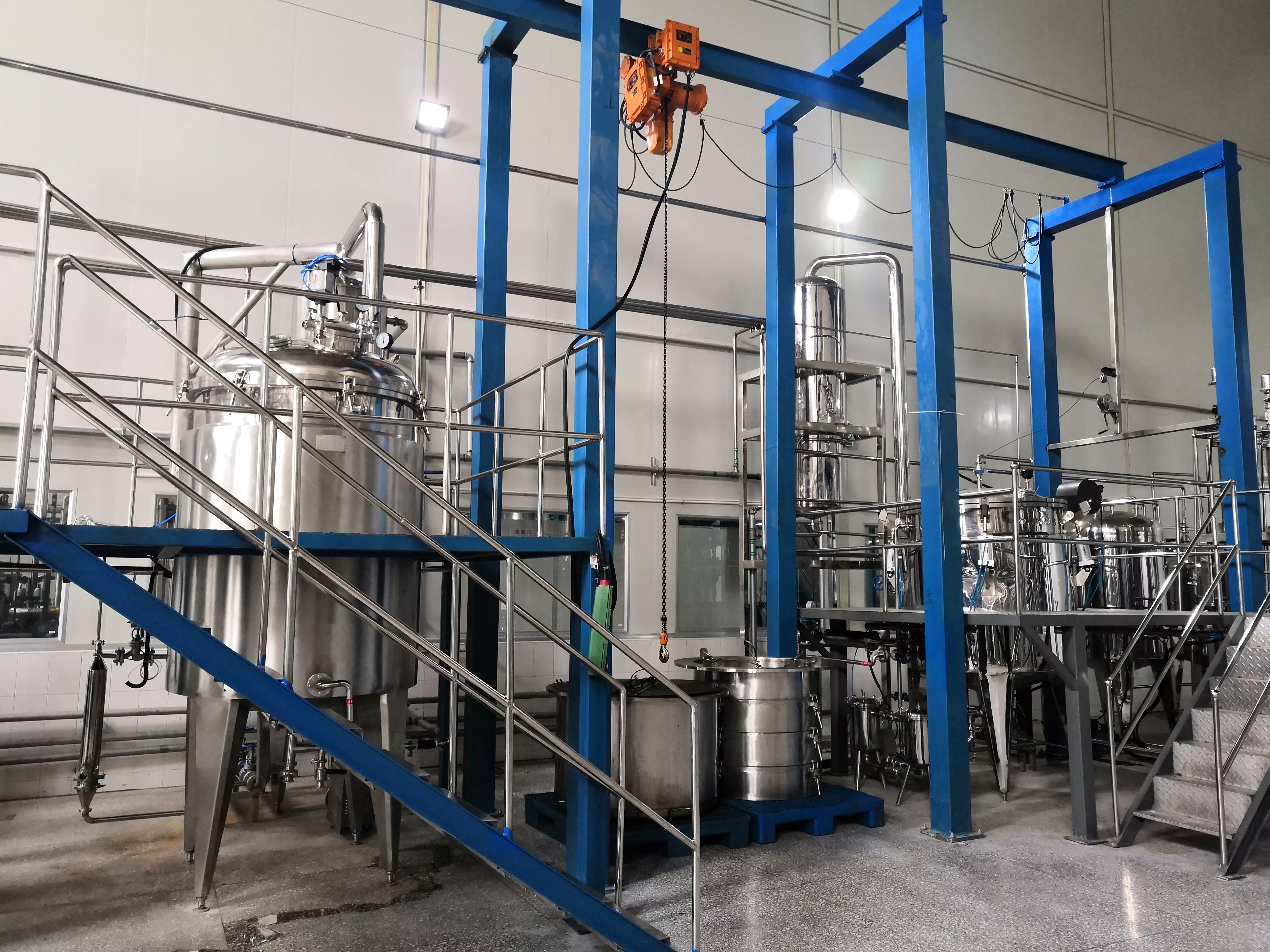

Production Type 5000L Herbal Plant Essential Oil Extraction Equipment
Product Details
model | GYT | Material | SUS304 |
Specification | 100L、200L、500L、1000L、2000L、5000L | Origin | China |
brand | Skym | type | Herbal Plant essential oil extraction equipment |
Equipment introduction:
1. Feeding method of essential oil extraction equipment: Humanized and based on material characteristics, the essential oil distillation tank adopts an upper feeding and lower discharging method; this method is suitable for distillation and extraction of essential oils from various plant materials, especially for the extraction of plants, and is more convenient . Materials can be directly placed into the equipment for distillation.
2. Distillation method of essential oil extraction equipment: The equipment adopts water-isolated distillation. This distillation method is suitable for the extraction of volatile oil components of many types of Chinese medicinal materials and plants containing aromatic ingredients.
3. Condensation method of essential oil extraction equipment: According to the cooling characteristics of volatile oil, short-span coil condensation is used, the heat exchange area is small, the wax component contained in the volatile oil flows easily, and the oil-water separation is high. At the same time, the condenser imports a steam collector to expand the condenser air inlet pressure ratio, so that the distilled oil-gas mixture is completely collected in the short-moment condenser and fully condensed.
4. Special oil-water separator for essential oils: The essential oil extraction equipment produced by our company can be equipped with different essential oil resting devices, heating separation devices and oil-water separation devices according to different models of equipment and material characteristics. According to the characteristics of the material containing volatile oil, use a special oil-water separator to separate it. The separator adopts a split design of oil circuit and water circuit, so that the obtained volatile oil can be completely separated from the distilled water.
5. After distillation, the extracted liquid passes through two stages of pipeline filtration and material basket mesh filtration.
Common types of device extraction:
1. Conventional plant flowers and leaves: Damask rose, rosemary, basil, thyme, osmanthus, jasmine, wild chrysanthemum, lavender, mugwort, wintersweet, sophora japonica, primrose, mint, greater sage, peppermint, oregano , dill, lemon balm, verbena, herb, parsley, perilla, chamomile, etc.;
2. Plant rhizomes: Amomum villosum seedlings, leucophora, Australian tea tree, Cinnamomum camphora, Cinnamomum camphora, Cinnamomum camphora, agarwood, ginger, aloe vera, cloves, Amomum villosum seedlings, etc.;
3. Plant fruits: Amomum villosum, Atractylodes, passion fruit, Sichuan peppercorns (only aroma of Sichuan peppercorns, no hemp or bitterness), castor, star anise, grape seeds, lemon, litsea cubeba, pine nuts, etc.
