GY-T

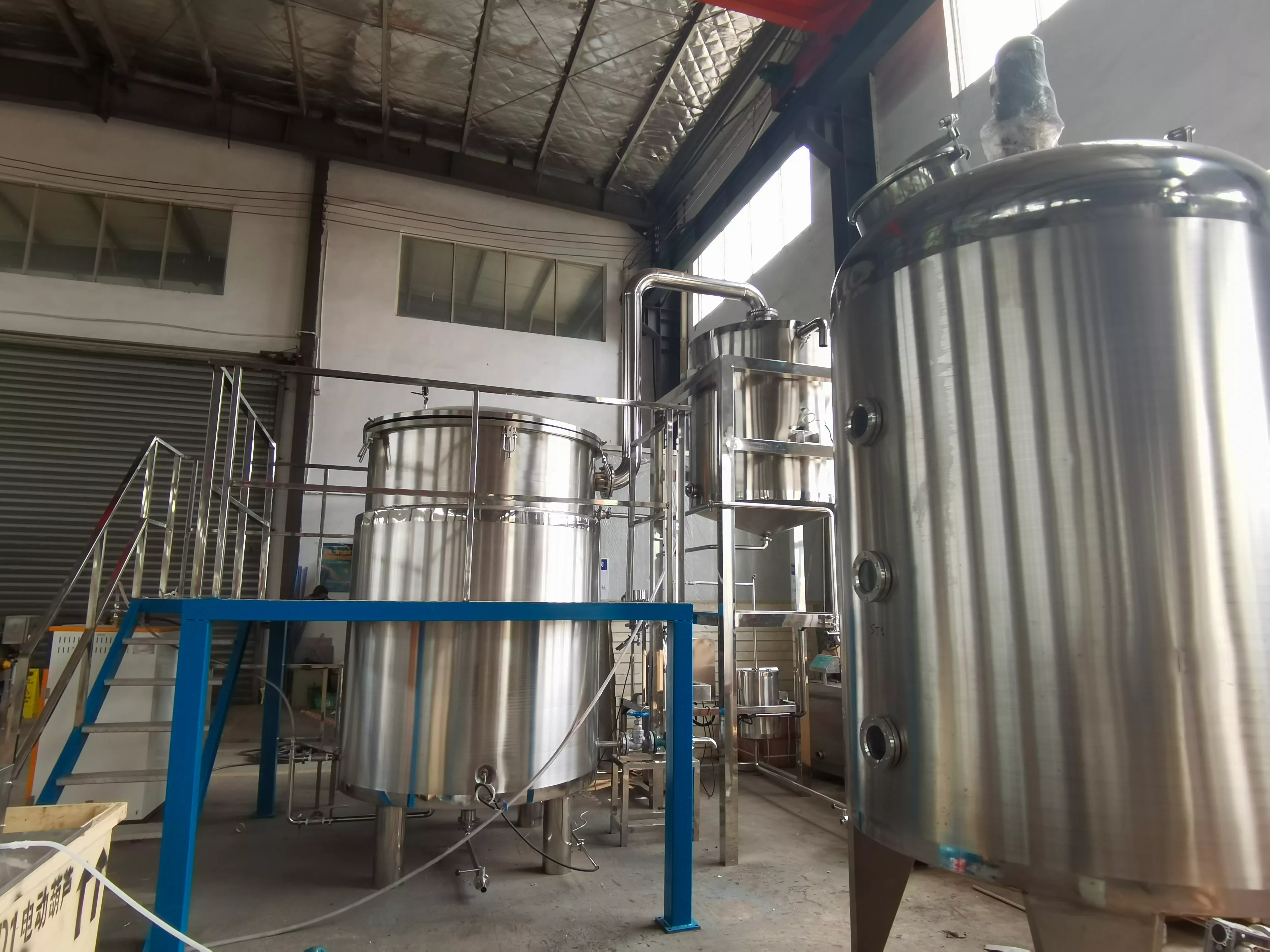

Production Type 2000L Herbal Plant Essential Oil Extraction Equipment
Product Details
model | GYT | Material | SUS304 |
Specification | 20L、50L、100L、200L、500L、1000L、2000L | Origin | China |
brand | Skym | type | Herbal Plant essential oil extraction equipment |
Equipment introduction:
This equipment is suitable for extracting essential oils (volatile oils) from flowers and plants. The equipment uses a steam distillation device for co-hydrodistillation, which can effectively extract plant volatile oil components and is more effective in collecting various volatile aromas of plants. This equipment is suitable for companies to set up factories near the origin of plants. The equipment adopts the boiling and distillation extraction method, placing aromatic plants in a distillation container, and then heating the raw materials and water in the extraction tank with high-temperature steam until boiling. At this time, the essential oils containing aromatic components in the plants will diffuse into the water vapor. An azeotrope of oil and water is formed; then the azeotrope is cooled. Since the oil is insoluble in water, the oil is separated through the oil-water separator, thereby separating it from the water and forming the essential oil we need. The equipment adopts co-water distillation. This equipment is a new, multi-functional and multi-purpose plant essential oil extraction unit, which can efficiently collect effective ingredients such as plant volatile oils, plant aromatic lotions, and plant extracts. This equipment is custom designed and produced for torreya seed materials. Based on previous equipment production experience, in order to solve the problem of slag discharge after material extraction, the equipment uses a lower opening combined with a thick slurry pump to pump the extracted residue out of the equipment. Delivered directly to the designated location. This slag discharge solution has the characteristics of simple operation, convenient operation, and efficient slag discharge.
Device parameters:
1. Distillation tank: 2000 liters, heated by steam boiler
2. Condenser: special condenser for essential oils, heat exchange area 3㎡
3. Loading and unloading: upper port feeding, lower port discharging
4. Oil-water separator: made of boronized glass
5. Cooling water flow: 20T/hour, external circulating water cooling. Steam consumption: 150kg/hour.
7. Operating platform: all stainless steel material, stainless steel bracket and work surface, stainless steel steps
8. Distillation equipment material: SUS304L 2B
9. Equipment weight: 1780KG.
