16 Heads Carbonated Drink Soda Water Filling Machine

Share to:

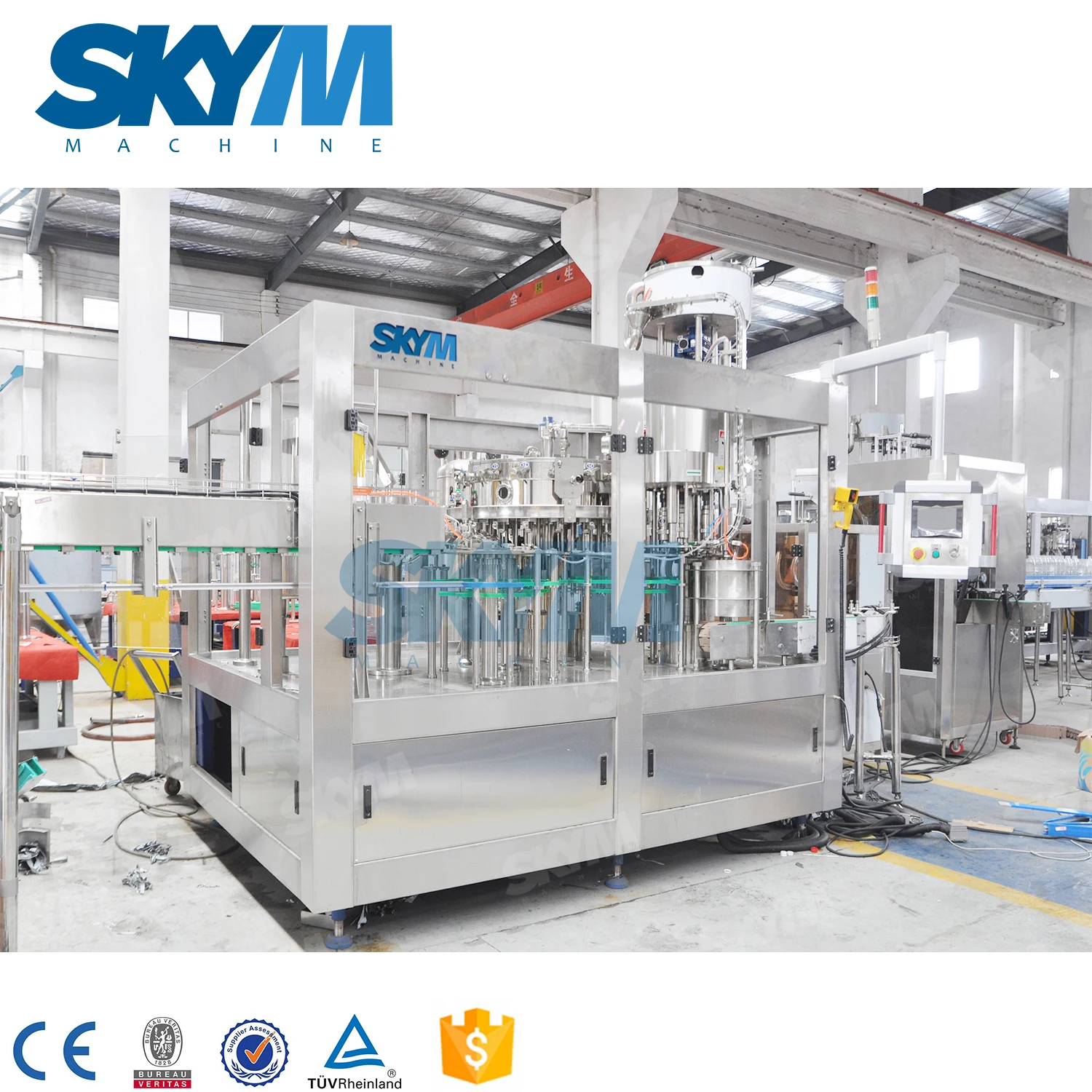

16 Heads Carbonated Drink Soda Water Filling Machine

16 Heads Carbonated Drink Cola Soda Water Filling Machine Combined with the function of washing filling capping in one machine，and apply to PET bottle carbonated drink filling.Mainly used for carbonated water，cola，sparking wine，water，soft drink and other carbonated beverage.

Availability:

Quantity:



Inquire Add to Basket

Model:
DCGF16-16-5
Brand:
SKYM

Product Description

Zhangjiagang Sky Machine Co., Ltd.

 We are devoted to the development, research and production of liquid food & beverage packing industry,plastic bottle blowing machine,injection molding machine.

Product Description

DCGF24-24-8 200ML-2000ML Plastic bottle carbonated water soft drink cola sparkling wine,water 3 in 1 filling machine

 DCGF series drinking water filling machine integrates bottle washing, water filling and capping into one monoblock, and the three processes are carried out full automatically. It is used for carbonated water,cola sparkling mine ,water,soft drink and other beverage. It is equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that grade rubber.

Detailed Images

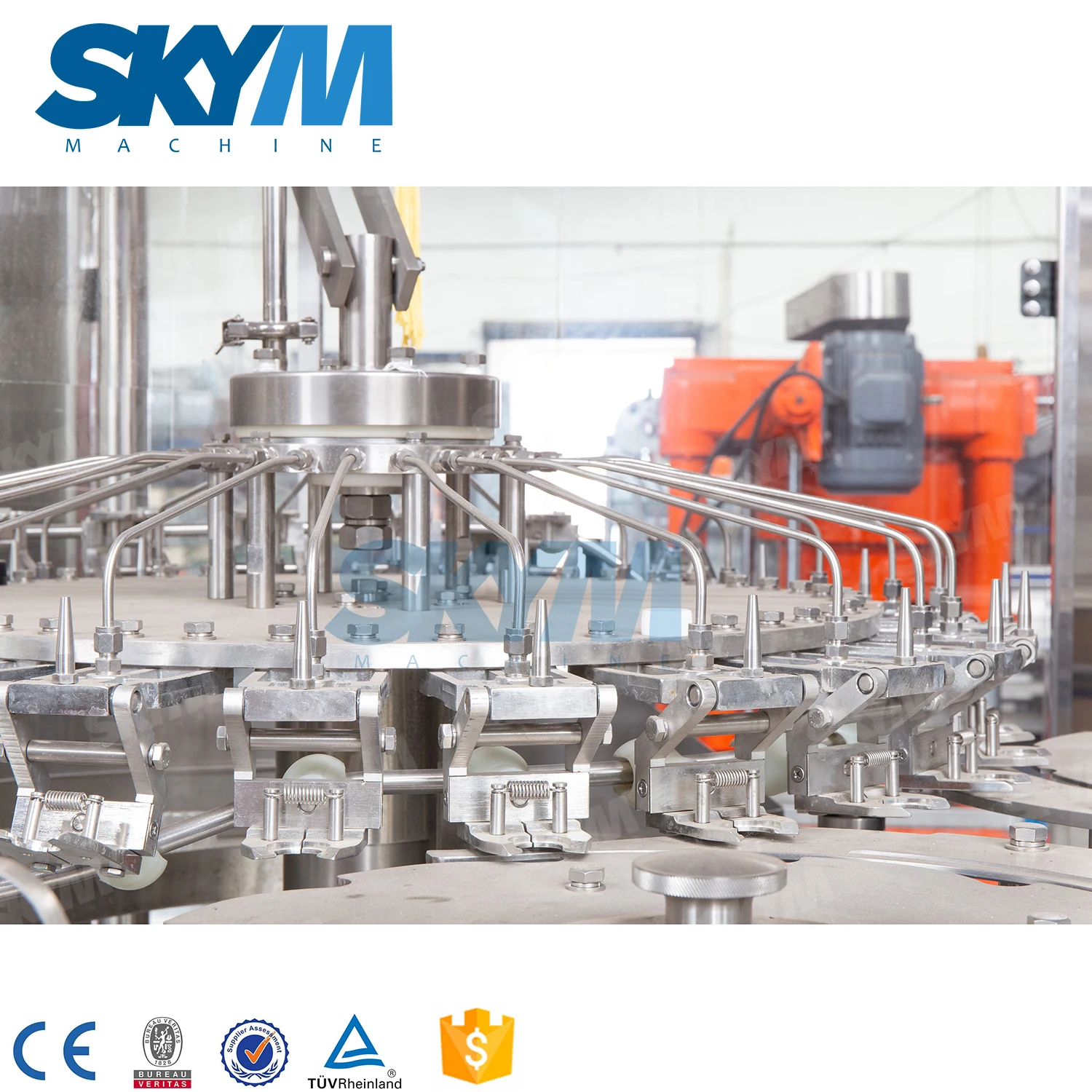

Washing Part--

Into bottle way is air conveyor direct connection with Bottle dial .
All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
304/316 stainless steel washing pump make the machine more durable .

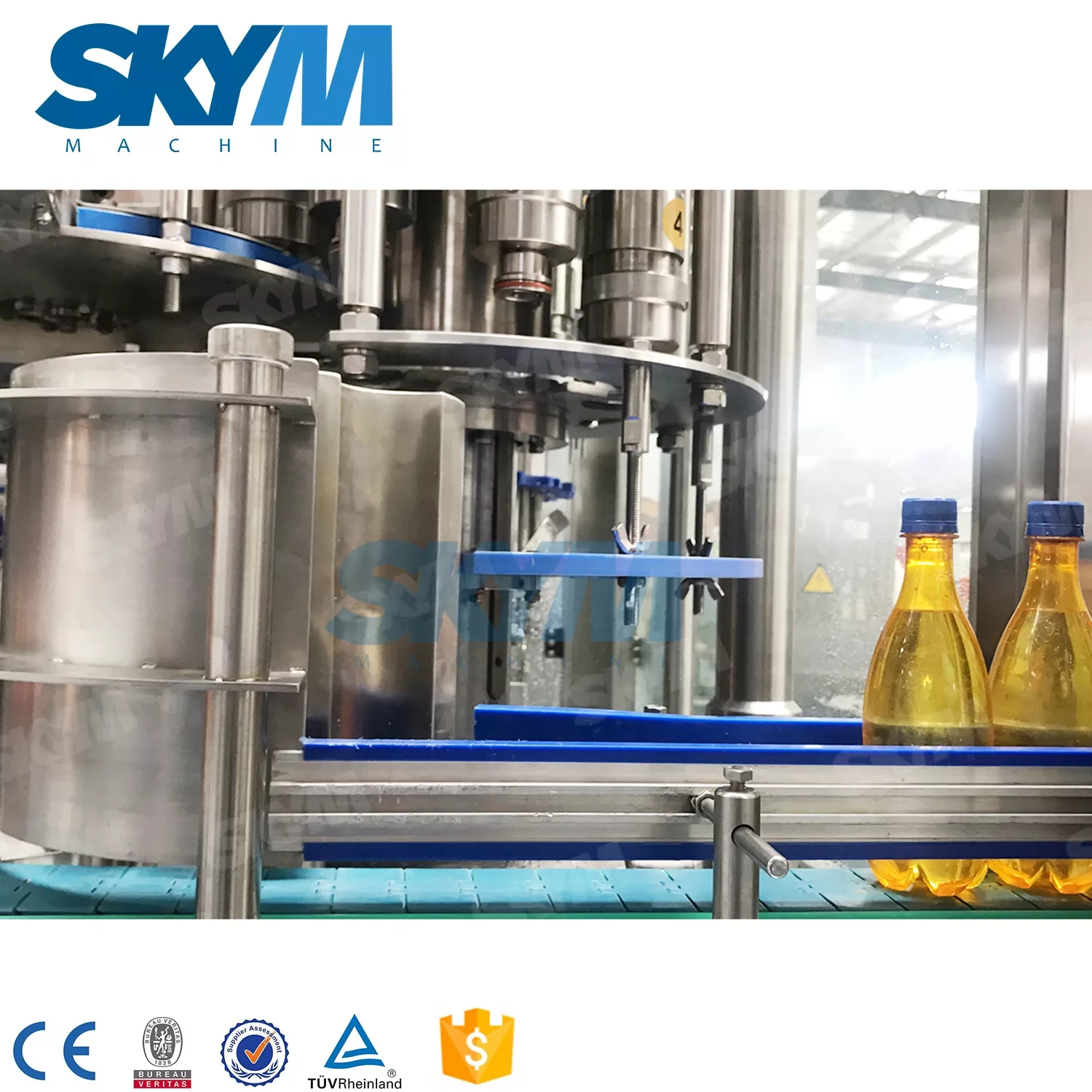

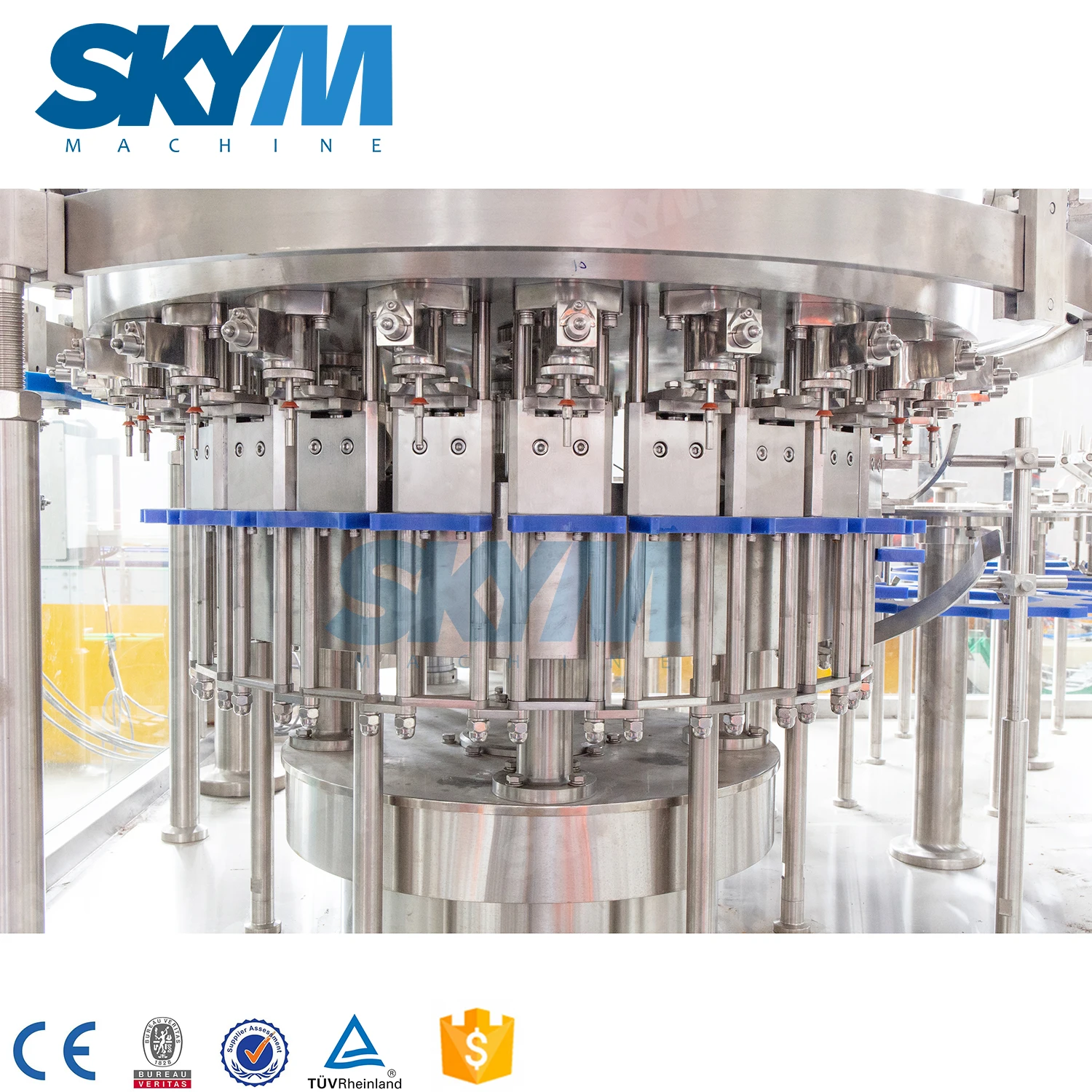

Filling Part--

During filling juice ，we will make a cover installed on the filling valve, avoiding the fruit pulp return inside reflux pipe to block the pipe.
Filling valve and bottle lifter uses adopts German Igus bearings which are corrosion-resistant and maintenance-free.
By install CIP cleaning cups, the filling machine can realize online CIP cleaning
During filling process, there is no reflux of product, avoiding blockage of product.

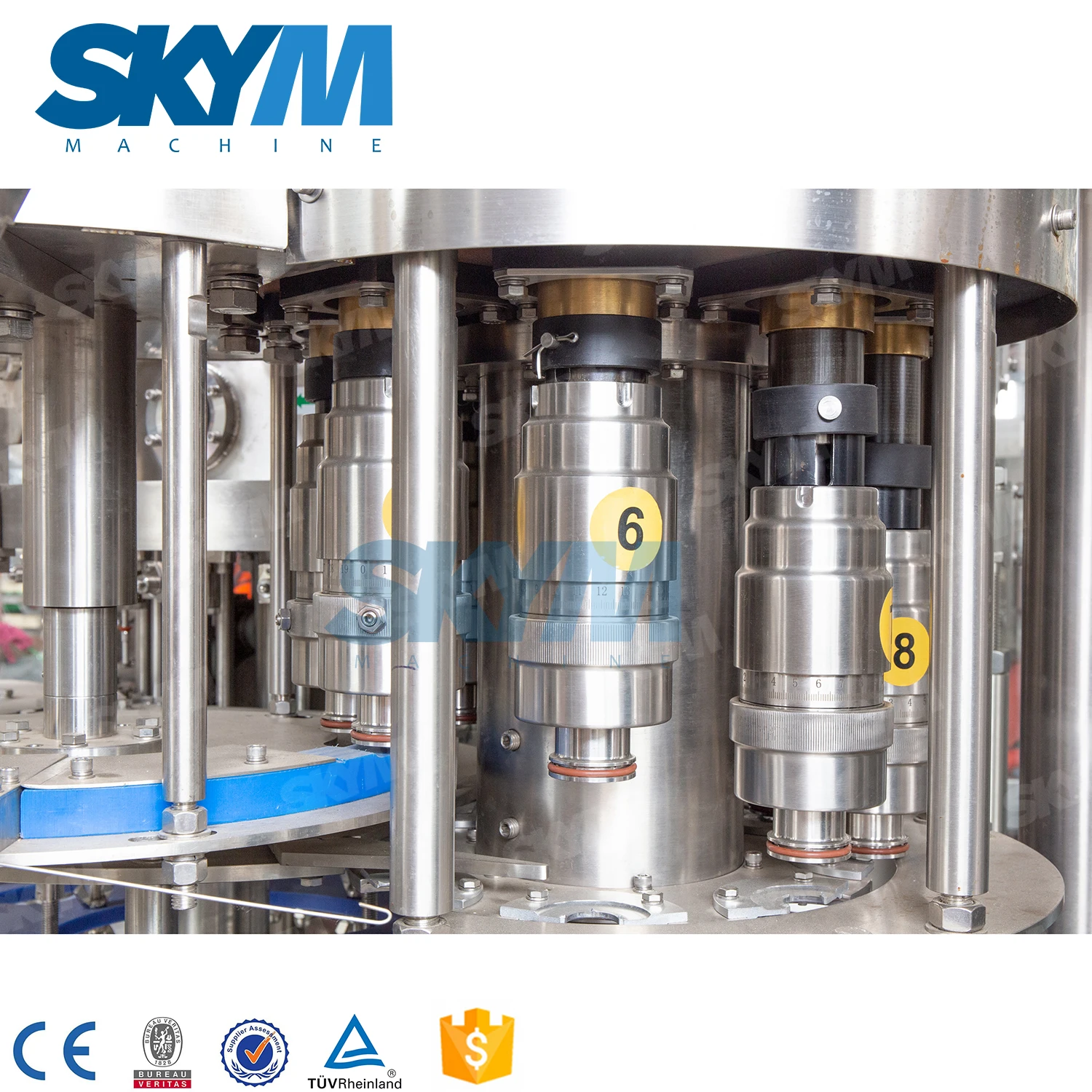

Capping Part--

 - Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

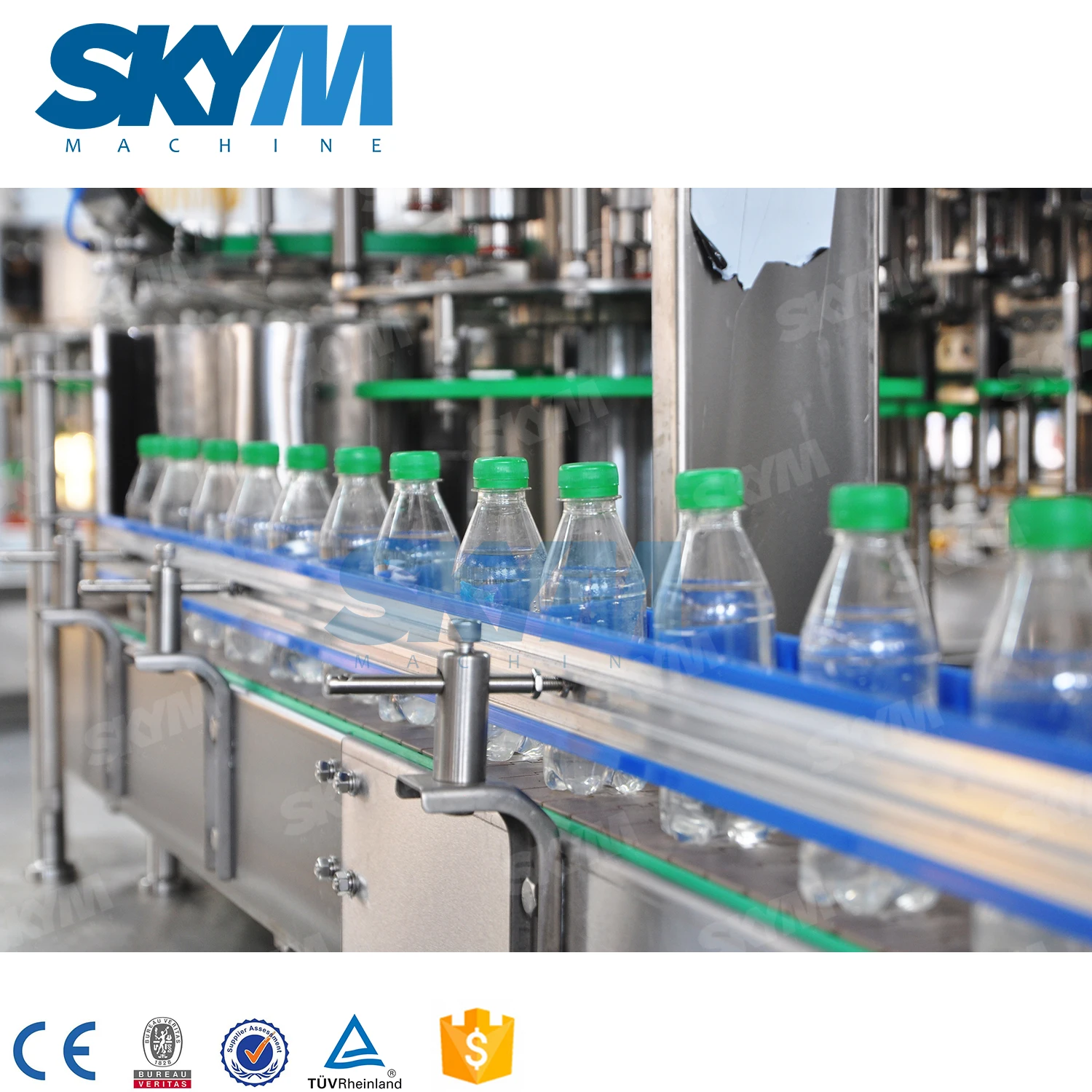

Flat Conveyor

 - Energy saving. High efficient. Adapt to customer factory layout.
- Special lubrication system, keep products clean, health, safety.
- Extended service life.
- Electric eyes design keep whole line running safety and quickly.
- Overload protection mechanism to effectively ensure the safety of the machine.

Product Paramenters

Model	DCGF14-12-5	DCGF16-16-5	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12	DCGF50-50-15
Capacity (BPH)	2000-3000	3000-4000	6000-8000	8000-10000	12000--15000	15000-18000
Power supply	2.42 KW	3.12 KW	3.92 KW	3.92 KW	5.87 KW	7.87 KW
Overall dimension	2360×1770×2700	2760×2060×2700	2800×2230×2700	3550×2650×2700	4700×3320×2700	5900×4150×2700
Weight (KG)	2600	3500	4800	6500	10000	12000

Water treatment machine

Raw water tank + Raw water pump
Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
Reverse Osmosis (one level)
UV sterilizer
Finished water tank + Pure water pump

PVC sleeve shrink labeling machine

 This machine adopts international advanced technology; cover the circle label on the pet bottle.

PE film shrink wrapping machine

 (1)350/500/550/600ML
large package: 4*6, 4*5
Small package: 3*4, 3*5 (2)1L/1.5L/2L/2.5L
large package:3*3,3*4
Small Package:2*2,2*3

Why Choose Us

SKY-Machine

 Zhangjiagang Sky Machine Co., Ltd is located in Zhangjiagang City, Jiangsu Province. Our company was found in 2008 .We have more than ten years experience in Beverage machine making .We are devoted to the development, research and production of liquid food & beverage packing industry,plastic bottle blowing machine,injection molding machine.

Our Factory

  Our main products including: 1. Mineral water/pure water production lines 2. Fruit juice/fruit tea production lines 3. Carbonated beverage production lines 4. 5 gallon jar bottle drinking water production lines 5. Vinegar/oil/wine production lines 6. Complete  sets of water treatment plants 7. PET bottle blowing machine8. HDPE bottle blowing machine9. Injection molding machine With advanced technology, scientific management systems and perfect after-sales service, we have won a high reputation among clients.

Our Certificates

 All the machines in our company have been approved in CE,SGS,ISO standard.We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.

Our Clients:

 Our clients are all over,Germany, Malaysia, Indonesia, Vietnam, Philippines, Bangladesh, UAE, Oman, Ethiopia, Nigeria, Brazil totally more than thirty countries and regions.And we earned all the clients' good comments. Welcome you to visit our company.

Mozambique Customer Factory

 This is our Mozambique customer factory installing photo,they brought our water filling line  including water treatment machine ,labeling machine.

Ethiopia Customer Factory

 This is our  Ethiopia customer factory installing photo,they brought our water filling line including bottle blow machine,water treatment machine,labeling machine.

Malaysia Customer Factory

 This is This is our Malaysia customer factory 15000BPH bottle blow machine installing photo.

Indonesia Customer Factory

 This is our Indonesia customer 12000BPH Carbonated Drink Filling Production Line.

FAQ

1. A: Are you factory?How many workers do you have?  B: Yes,we are factory. our factory is located in zhangjiagang near fromshanghai. We have about 50 workers in our factory.

 2. A: What about after sale service?
 B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.

 3. A: What about installation?
 B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer shouldarrange the accommodation for them during the trip.

 4. A: What do we do if we encounter problem about the machine ?

 B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).

 5. A: How can you control the quality and delivery?
 B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery
