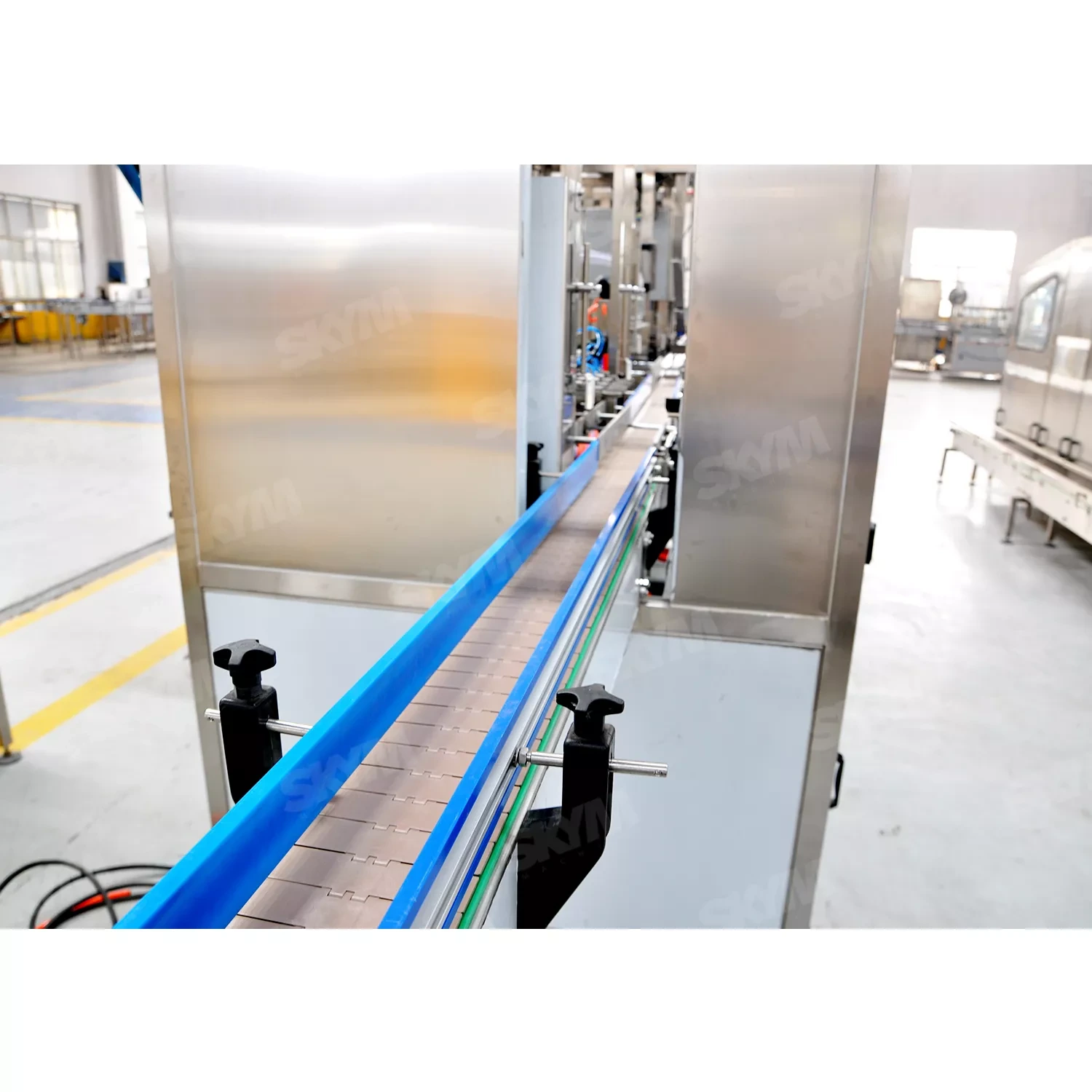

1500BPH Mineal Water Linear Type Production Line

1500BPH Mineal Water Linear Type Production Line is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.

Quantity:
  • CGF12-12-5R
  • SKYM

1500BPH Mineal Water Linear Type Production Line  adopts the principle is given liquid filling pressure filling. Main process is: cleaned the bottle into the bottle track wheel appropriated by the lift shaft parts, with the dial clockwise, the bottle filling valve from the bottom up and seal the bottle and realized the bottle sealed contact with the valve open Liquid cylinder of liquid in the downstream effects of its weight into the bottle, while the air inside the bottle of liquid in the shed, driven out from the center tube discharge valve, the liquid until the bottle vent pipe flooded the center, the irrigation Installed to stop, with the bottle down, filling valve closed, filling the bottle by the end of the bottle sealed track wheel output into the next process.


8heads filling machine

size information



Model Dimension(mm) Motor Power(KW) Washing time Drain off time Water consumption  Capacity(5000ml)
CGF8-8-4R 2600*1900*2700 2.24 6.5S 4.5S 1.5 700BPH
CGF12-12-5R

3560*2760*2700

2.94 4.8S 3.2S 1.5 1500BPH
CGF16-16-5R 3900*2960*2700 2.94 4.8S 3.2S 1.5 2000BPH
CGF20-20-5R 4000*2960*2700 3.12 4.8S 3.2S 2 3200BPH
CGF25-25-5R 4150*2960*2700 3.12 5.3S 3S 2 4000BPH
CGF32-32-6R 4860*3600*2700 3.92 5.3S 3S 2 5000BPH

Main Feature

I)The main purpose and characteristics The filling machine is suitable for 3L To 5L pure water, mineral water and other non-automatic liquid filling gas,its main features are:
1 bottle red card is the bottleneck parts of method used, rotate 180 degrees, washing efficiency.
2, the use of fixed surface of the filling means filling quality, filling speed quickly.
3, the use of mechanicalliquid level automatic control mechanism.
4, filling valve, hydraulic cylinder and other parts of surface are in direct contact with high-quality stainless steel,
corrosion-resistant, easy to clean, in line with industrial hygiene requirements.
5, the use of electromagnetic speed control motor, strong production capacity to achieve any adjustments.
6, compact structure, convenient operation and easy maintenance.

5L Filling products

This is the products of our 1500BPH Mineal Water Linear Type Production Line .


FAQ

1. A: Are you factory?How many workers do you have?

   B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.


2. A: What about after sale service?
   B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.


3. A: What about installation?
   B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.


4. A: What do we do if we encounter problem about the machine ?
    B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).


5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
