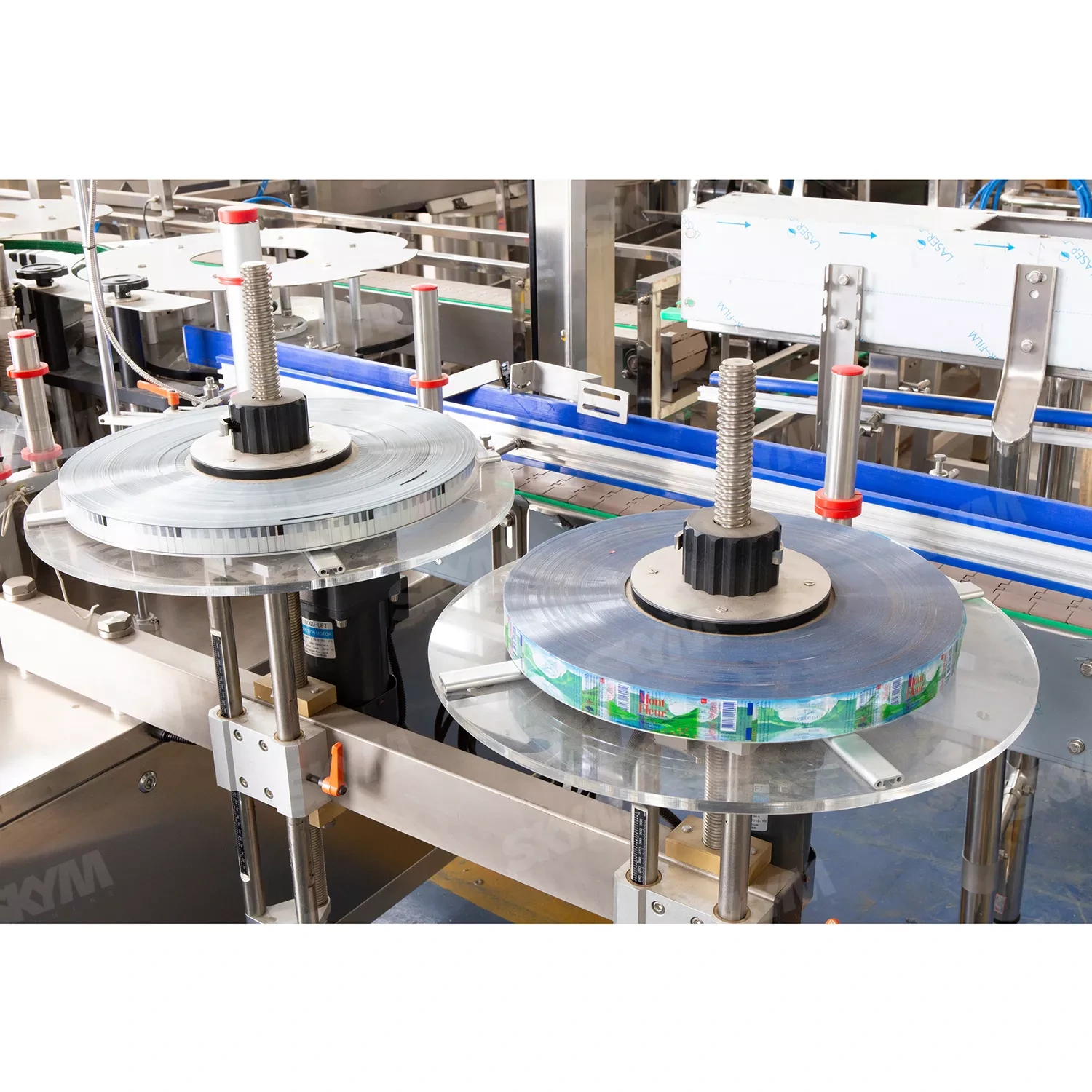

Low Cost Hot Melt OPP Bottle Labeling Machine

Low Cost Hot Melt OPP Bottle Labeling Machine is automatic and high speed labeling machine ,it has automatic tension control and warming system and alarm that will be activated when it is out of label.
Availability:
Quantity:
  • SKYM

Low Cost Hot Melt OPP Bottle Labeling Machine
1.The machine can be connected with filling machine,capping machine working 2.It can fit for round bottle with one label 3.Adopt the import control system, servo or step in and out of the standard system 4.Adopt cylinder drive rotary bottle structure, turn three positioning way ensure excellent labeling parallel precision and positioning accuracy 5.Main material is stainless steel and advanced aluminum alloy manufacturing, in line with the GMP standard production, firm structure, beautiful and easy

Technical parameter
Machine Speed
1800-3000 bottles per hour
Applied Bottle
100-500ML
Bottle Size
30-280 mm (H),20-150 mm (W)
Label Size
25-300 mm (L), 20-180 mm (W)
Printer to use air
5kg/cm2
Label Accuracy
±1mm (Depend on real bottle and label size)
Compressor Air Supply
0.3-0.4kfg/cm2
Label Roll Size
Φ76 mm, Φ300 mm
Machine Size
2000 mm(L)×1000mm(W)×1360mm(H)
Power/Voltage
AC110/220V, 50/60HZ (Can be customized)
Details Images
Main Features of OPP Labeling Machine:

1. It applies to a row of paste volume, the use of local means glue, glue consumption of small, low running costs.2.Due to the design of high-precision processing requirements of strict and meticulous assembly, so that the stability of the machine running, and production capacity can reach 10,000 bottles / hour.

3. Marked station is the heart of the aircraft, designed to complete the standard trademarks station transmission constant
tension; trademarks automatic correction; labeling speed (revolution speed of the machine and the speed of rotation of the
synthetic bottle speed) internal matching; not send bottles marked function; glue function is not scale-free; bottle labeling
before and after the replacement of the normal type;




4. The host used on home cam design to replace the bottle-type simple; nose tight card using pneumatic means to increase the
convenience of the host.

FQA

Q1:What's your guarantee or the warranty of the quality if we buy your machines? A1:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.   Q2:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.   Q3:How can I install my machine when it arrives? A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.    Q4:What's the delivery time? A4:30-45 days after the T/T deposit or L/C.   Q5:What's min order quantity? A5:1 unit

About SKYMachine
Zhangjiagang Sky Machine Co.,ltd is located at Leyu Economic Development Zone of Zhangjiagang City. Our Company was founded in 2008. We committed to do the world's most competitive liquid drink packaging manufacture suppliers, Focus on Providing customers with safe, energy, saving, efficient equipment. And high quality, fast and personalized service. We sincerely invite businesses around the world to estabilish a professional relationship with us based on trust, benefits and the promising possibility for future development.
