Linear Type Automatic OPP Hot Melt Labeling Machine

Share to:

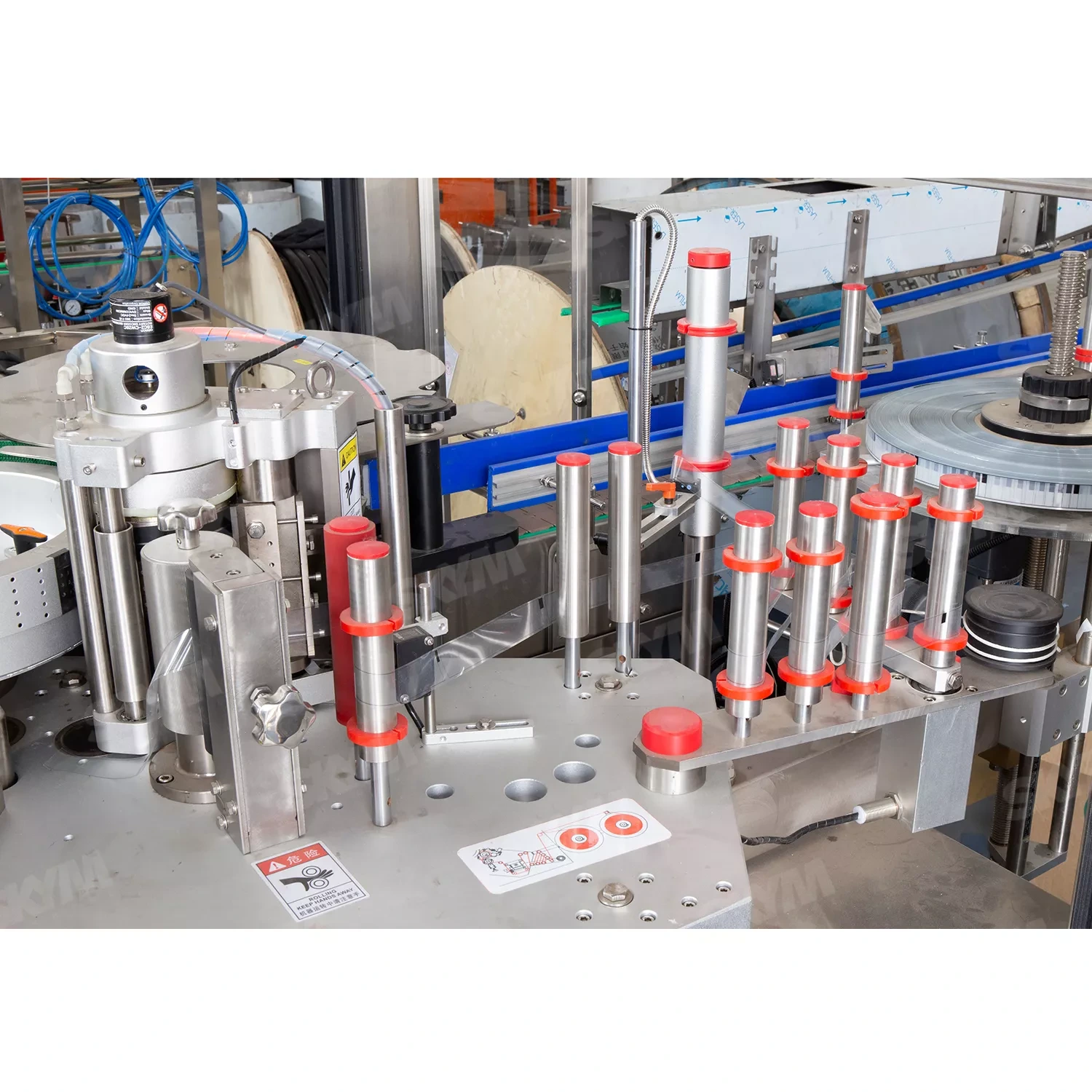

Linear Type Automatic OPP Hot Melt Labeling Machine

Linear Type Automatic OPP Hot Melt Labeling Machine is automatic and high speed labeling machine ,it has automatic tension control and warming system and alarm that will be activated when it is out of label.

Availability:

Quantity:



Inquire Add to Basket

Brand:
SKYM

Linear Type Automatic OPP Hot Melt Labeling Machine

1.The machine can be connected with filling machine,capping machine working 2.It can fit for round bottle with one label 3.Adopt the import control system, servo or step in and out of the standard system 4.Adopt cylinder drive rotary bottle structure, turn three positioning way ensure excellent labeling parallel precision and positioning accuracy 5.Main material is stainless steel and advanced aluminum alloy manufacturing, in line with the GMP standard production, firm structure, beautiful and easy

Technical parameter
Machine Speed	1800-3000 bottles per hour
Applied Bottle	100-500ML
Bottle Size	30-280 mm (H),20-150 mm (W)
Label Size	25-300 mm (L), 20-180 mm (W)
Printer to use air	5kg/cm2
Label Accuracy	±1mm (Depend on real bottle and label size)
Compressor Air Supply	0.3-0.4kfg/cm2
Label Roll Size	Φ76 mm, Φ300 mm
Machine Size	2000 mm(L)×1000mm(W)×1360mm(H)
Power/Voltage	AC110/220V, 50/60HZ (Can be customized)

Details Images

Main Features of OPP Labeling Machine:


 1. It applies to a row of paste volume, the use of local means glue, glue consumption of small, low running costs.2.Due to the design of high-precision processing requirements of strict and meticulous assembly, so that the stability of the machine running, and production capacity can reach 10,000 bottles / hour.


  3. Marked station is the heart of the aircraft, designed to complete the standard trademarks station transmission constant

tension; trademarks automatic correction; labeling speed (revolution speed of the machine and the speed of rotation of the
synthetic bottle speed) internal matching; not send bottles marked function; glue function is not scale-free; bottle labeling
before and after the replacement of the normal type;


4. The host used on home cam design to replace the bottle-type simple; nose tight card using pneumatic means to increase the
convenience of the host.
