A To Z Complete Production Line Bottled Pure Water Project Filling Machine

A To Z Complete Production Line Bottled Pure Water Project Filling Machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.
Availability:
Quantity:
  • CGF40-40-12

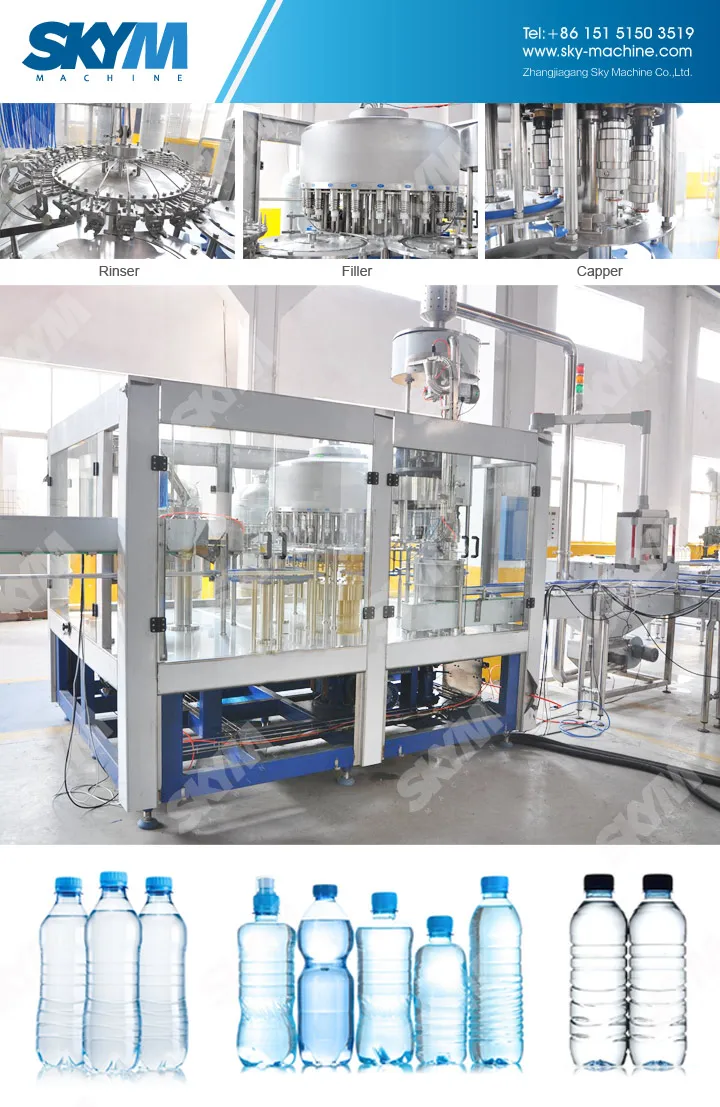

Detailed Images

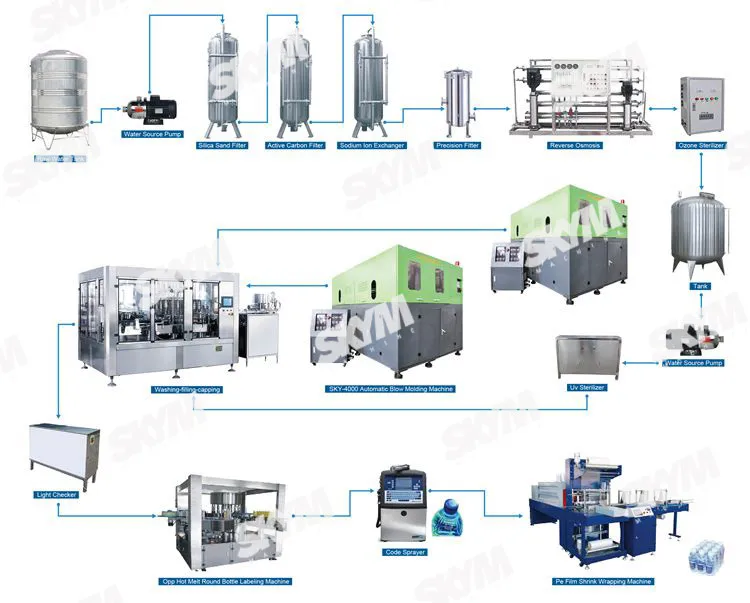

A To Z Complete Production Line Bottled Pure Water Project Filling Machine  :

A.Bottle production line PET Resin-Injection moulding machine-Bottle blowing machine-PET bottle

B.Water treatment system Raw water-Pump-Silica sand filter-Carbon filter-Water softer-Reverse Osmosis-UV sterilizer-Ozone
generator-Finished water tank
C.Filling&Packing part Bottle unscrambler-Air conveyor-Washing,filling,capping 3 in 1 machine-Light checker-Blow dryer-Dater
printer-Labeling machine-Packing machine-Stock

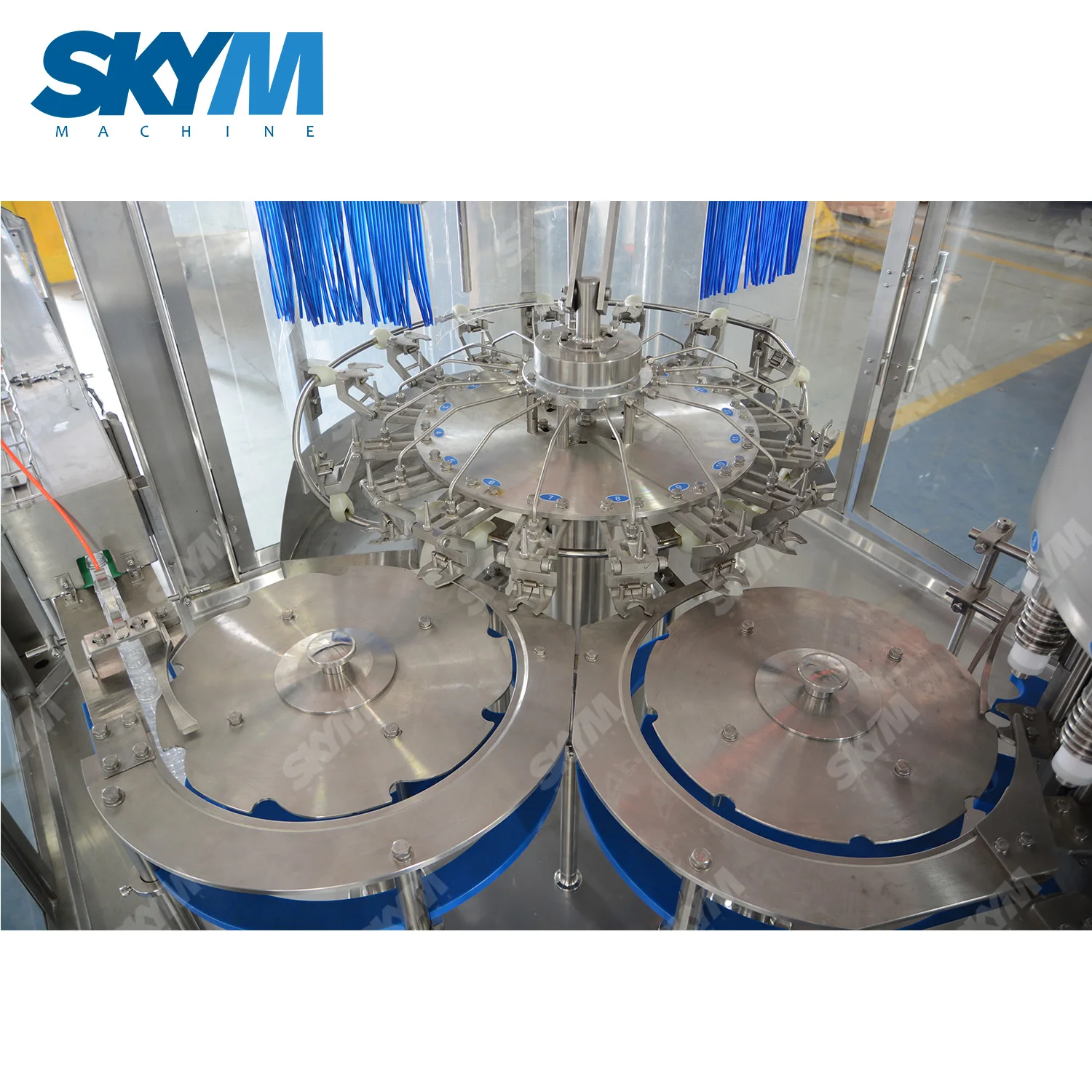

Rinser
Spring cramps are used in the bottle washing process.The empty bottles can be turned over 180 along the conveying rail.There are
two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sky original and double-opened bottle clip.Bottle clip lock the bottleneck, the material of bottle clip is
SUS304,which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle.The extrusive droplet with 15 angleensures to wash all side of the bottle, and
can save the water.Made of stainless steel of superior quality.Drinking water machine equipped with bottle jam protection device.

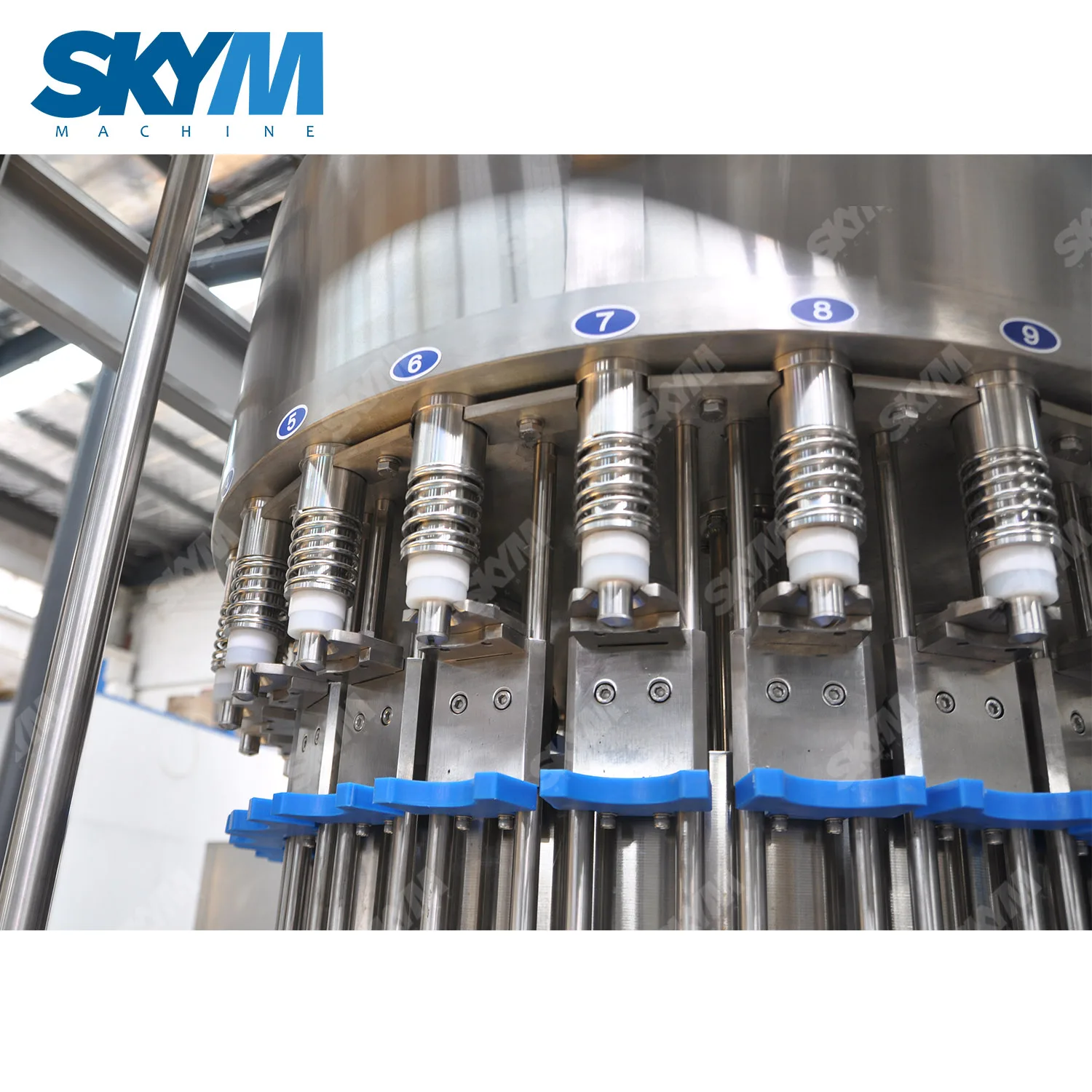

Filler
Automatic Monobloc Mineral Water Bottling Plant/Production Line design of filling structure is reasonable and hygiene dead angle,

the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to
bottle design).The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve elevator,
after filling valve contact the bottle neck, it starts to fill.Bottle is conveying by the wheel in the filling part.

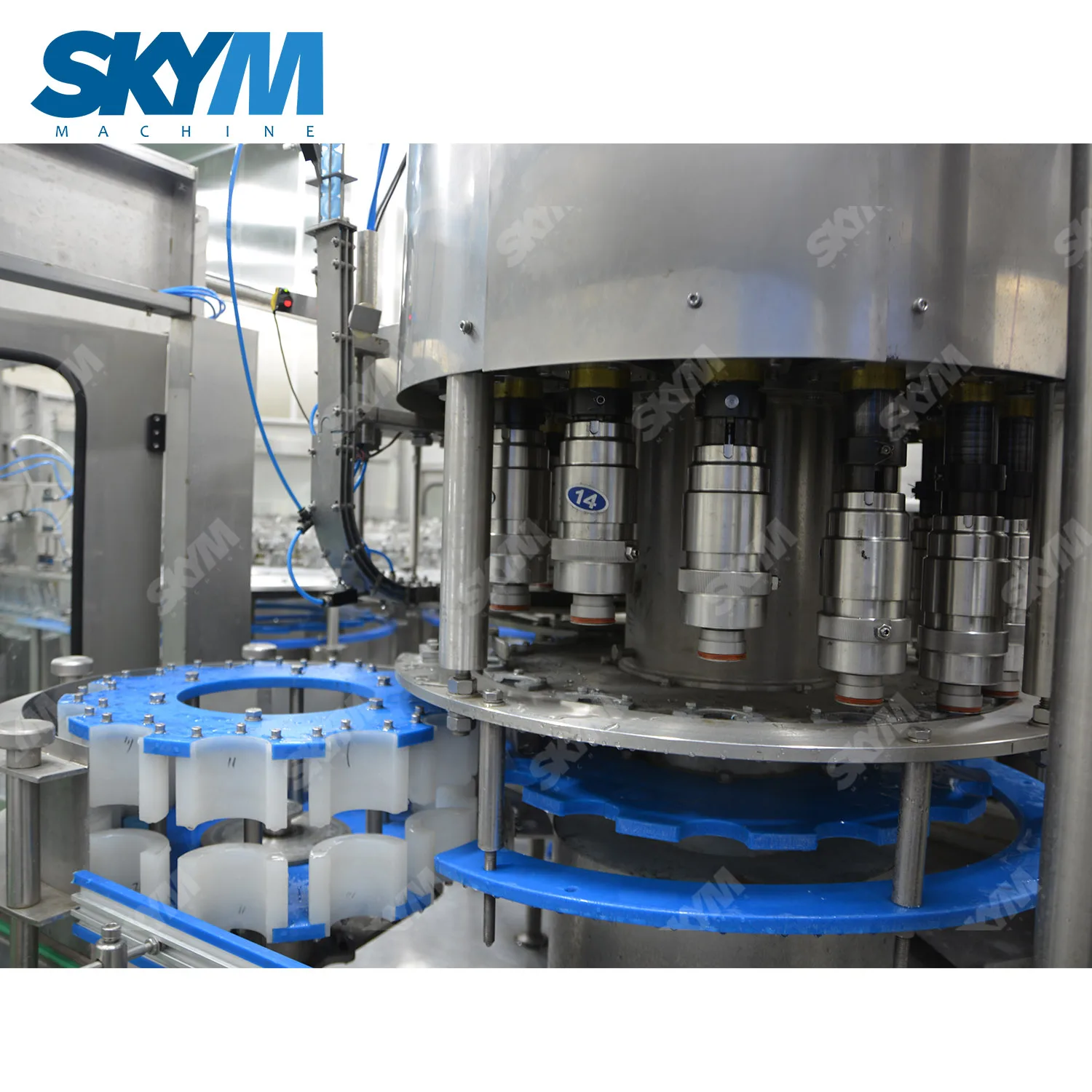

Capper
Screw capping ,machine is most precision part in the 3-1 machine ,it has a big influence to the goods stability and reliability of

the screw capping has following feature.
1) Sky import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine.The
magnetic torque is used foe screw capping.The power of screw capping can be adjusted without steps.The power of the screw capping
can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part, it installed photoelectrical control, when it has no cap, or the cap is bad, the machine will stop
automatically.



FAQ

1.Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.

2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.
