700BPH Big PET Bottle 5L Water Filling Plant

Share to:

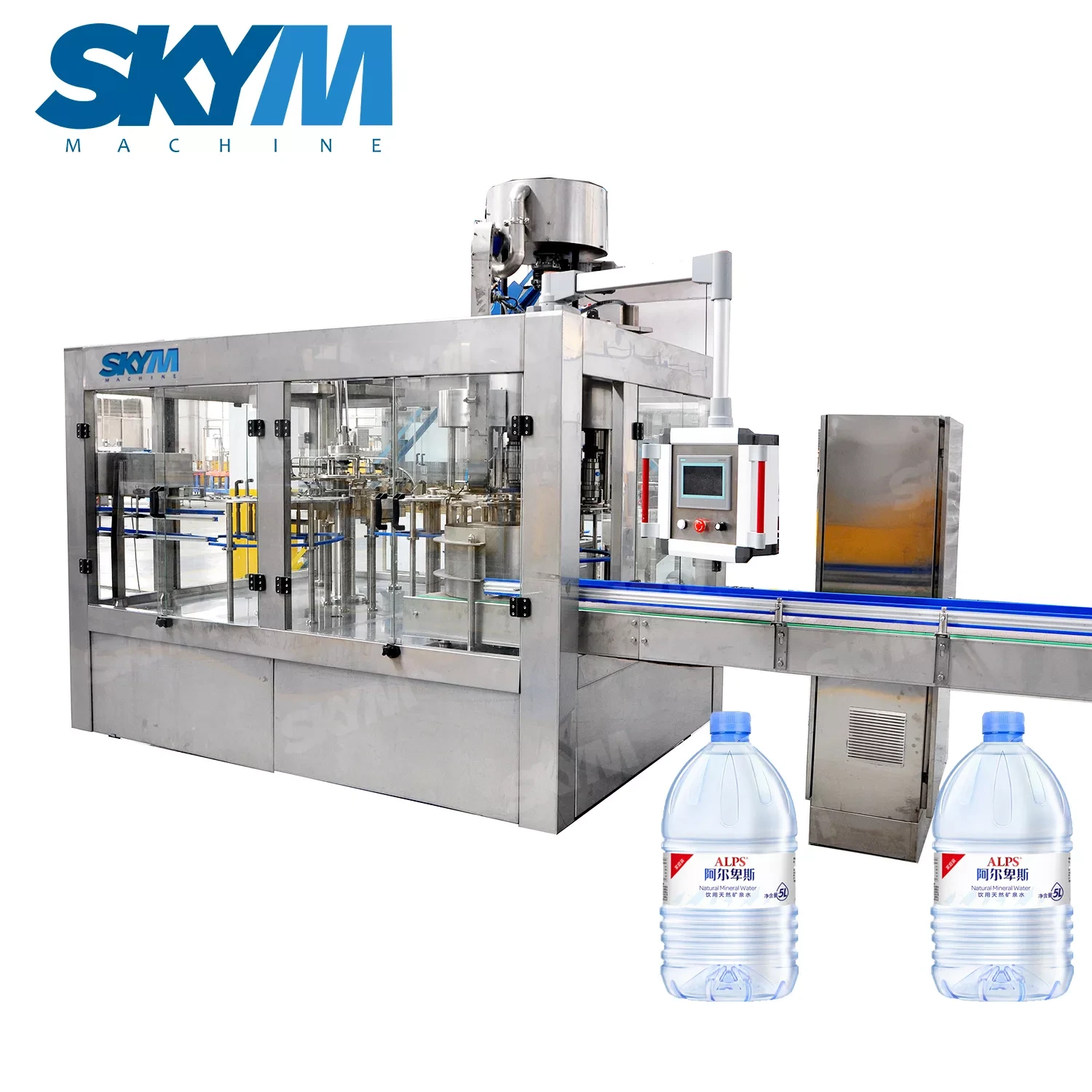

700BPH Big PET Bottle 5L Water Filling Plant

Name: 700BPH Big PET Bottle 5L Water Filling Plant
Brand: SKYM
Rating: 5.0 (51 reviews)

700BPH Big PET Bottle 5L Water Filling Plant is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.

Availability:

Quantity:



Inquire Add to Basket

Model:
CGF8-8-3
Brand:
SKYM

Product Description

Product Description

700BPH Big PET Bottle 5L Water Filling Plant, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

This CGF washing-filling-capping 3-in-1 unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF washing-filling-capping 3-in-1 unit: Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Main Features

Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Detailed Images

Washing heads

The rotary wheel is a fully stainless steel welded structure.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

Filling heads

Rotary wheel fully made of stainless steel SUS 304.
Gravity filling method.
Filling valves are made of SUS304.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Level of cylinder is controlled with float-ball.
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

Capping heads

The equipment is designed and used the technology of AROL from Italy, most advance technology in the world, developed with the experience of asepsis filling machine.
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
A cap inspecting system is applied to control on-off of elevator.

Model	CGF14-12-5	CGF16-16-5	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15
Capacity (BPH)	3000-5000	6000-8000	8000-12000	12000-15000	16000-20000	20000-24000
Applicable bottle	φ=50-100 H=170-330 (200ML TO 2000ML)
Power supply	2.42 KW	3.12 KW	3.92 KW	3.92 KW	5.87 KW	7.87 KW
Overall dimension	2360×1770×2700	2760×2060×2700	2800×2230×2700	3550×2650×2700	4700×3320×2700	5900×4150×2700
Weight (KG)	2500	3500	4200	5500	6800	7600

Auxiliary Equipments

One partner for all your needs.

 A complete water line solution from SKYM Machine leverages our knowledge of the entire water bottling process, from avoid  wasting of resources, to ensuring that your bottle is durable and attractive to consumers. With everything centered  around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment, fast ramp-up and beyond.

Water treatment system

· Combines ideal water purification theory and compact
· Can remove 97% of the impurity and bad materials in the water. Can produce high quality and good taste water
· We installed water pressure and water level protecting device on the water inlet parts before the high pressure pump to protect machine, after you start the machine, when the water pressure and water level reached the setting value the machine would start auto, if below it will auto stop.
· Equipped with conductivity on line monitor can tell you the water quality every time.
· Safe design.

Automatic labeling machine

In order to meet home and abroad market demand , we developed a dual-head structure, to meet the bottle, the bottle sets of the subject requires;

Advantages: a machine, can be reduced to sets of labeling machine, to save costs, reduce the length of the transmission lines or avoid secondary transportation, improve production efficiency and floor space; reduce the process bump, improve product quality.The machine can be used for various bottle types, such as: round bottle, square bottle, flat bottle, curve bottle, cup, and so on.

PE film packaging machine

·Frequency control,Secondary bottle transport device.
·The whole set which are push bottle, heat sealing cutting adopt pneumatic structure.
·Touch screen,PLC control system advanced reliability of the equipment function.
·Strong cooling system can reassure finalize the design quickly.
·Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.
·Pterygoid stainless iron heating system,durability.

PET bottle blowing machine

 · Man-machine Interface control, easy to operate
· Automatic preform loading and unscrambling
· Preform hopper
· Stable preform alignment, loading preforms according to capacity
· Close structure, low contamination
· Well preform heating system
· Stable rotating system
· Preforms are evenly heated, and easy to blow
· Low energy consumption, heating capacity is adjustable
· Recycling air cooling system in oven (option)

SKYM Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Certifications

About SKYM

We are manufacturer.
We have 12 years experience.
We have own design and idea, we constantly improve the details of the equipment and plan for the long term.
We have hundreds of customers in the world.
Our price is reasonable with good quality and best delivery time.
Our engineers will go to help customers to install and run the equipments smoothly.
Our sales team will give prompt feedback within 24 hours except they are dealing with urgent things.
One year warranty, lifelong provide free technical support and maintenance services. During warranty period, any problem of our products, after we confirmed, we will guide customer to fix or ship a new one to replace.

FAQ

1.Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.

2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.
