500ml Plastic Bottle Drinking Beverage Pure Mineral Water Bottling Filling Machine

Share to:

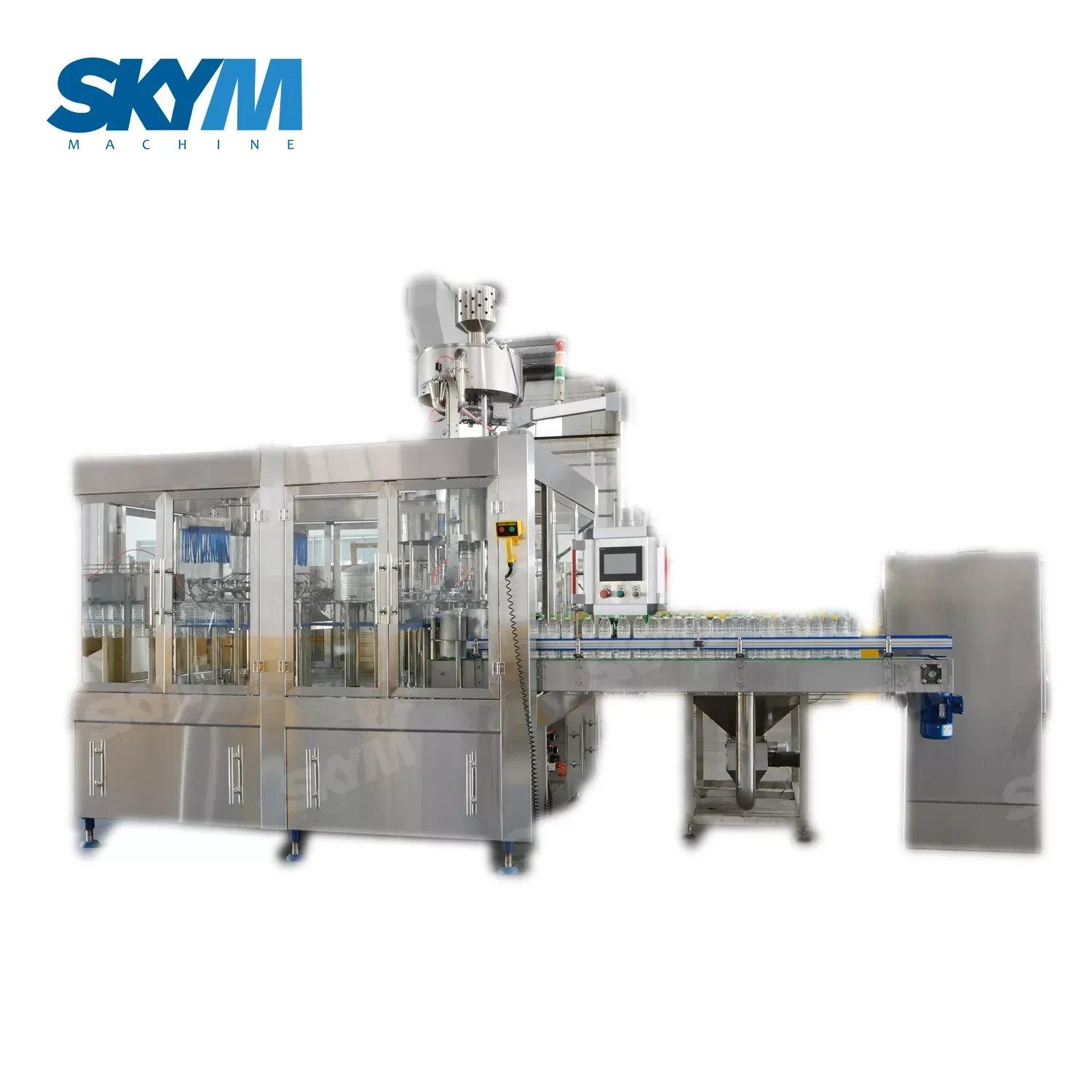

500ml Plastic Bottle Drinking Beverage Pure Mineral Water Bottling Filling Machine

Full Automatic 100ml-1200ml Pure Water Bottling Machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.

Availability:

Quantity:



Inquire Add to Basket

Model:
CGF14-12-5

Product Description

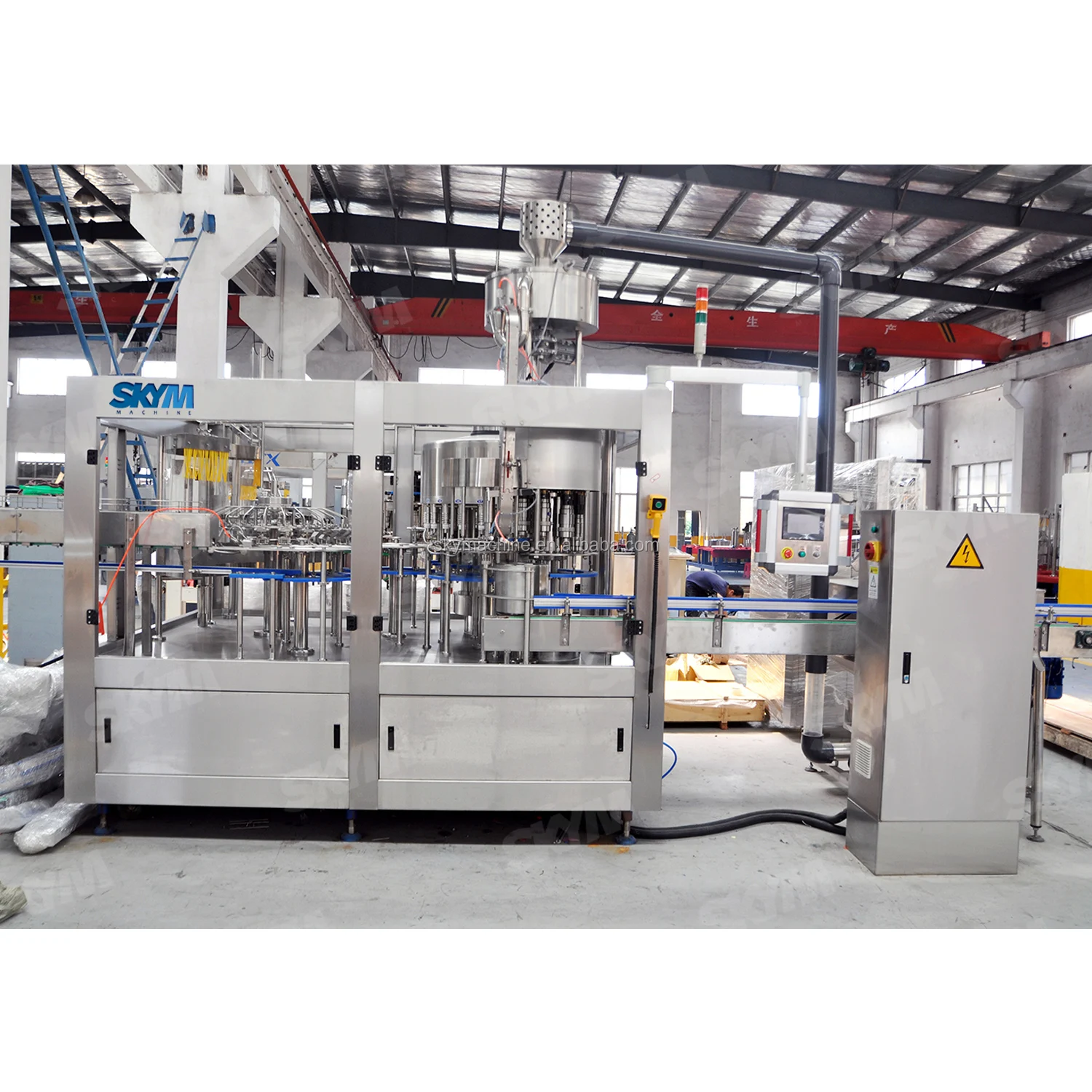

This CGF Wash-filling-capping 3-in-1unit:  Cheap Price Mineral / Pure Bottle Water Filling Making Bottling Plant  is used to produce polyester bottled mineral water, purified water,alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in 1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

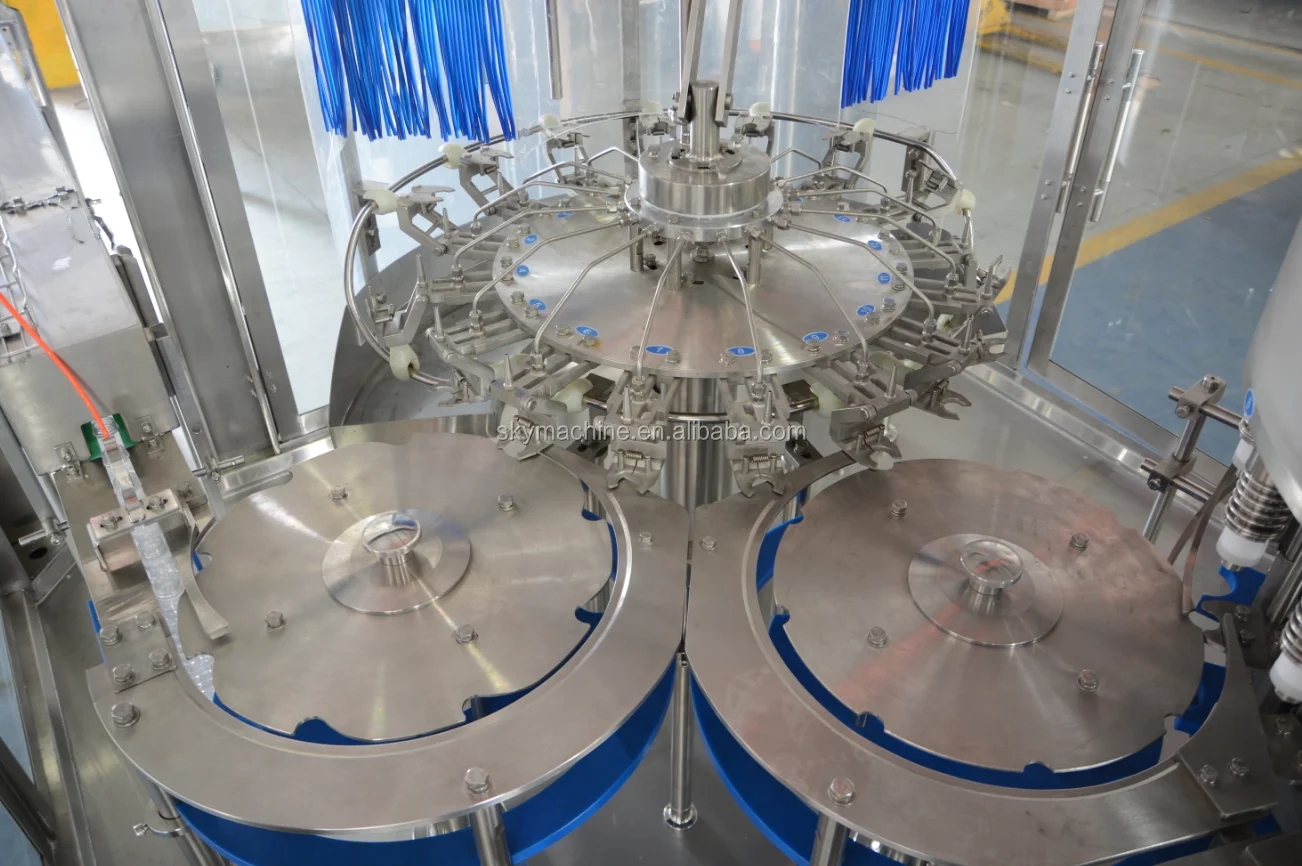

Rinser

 Bottle clip equipped with efficient spray on nozzle.The extrusive droplet with 15 angleensures to wash all side of the bottle.

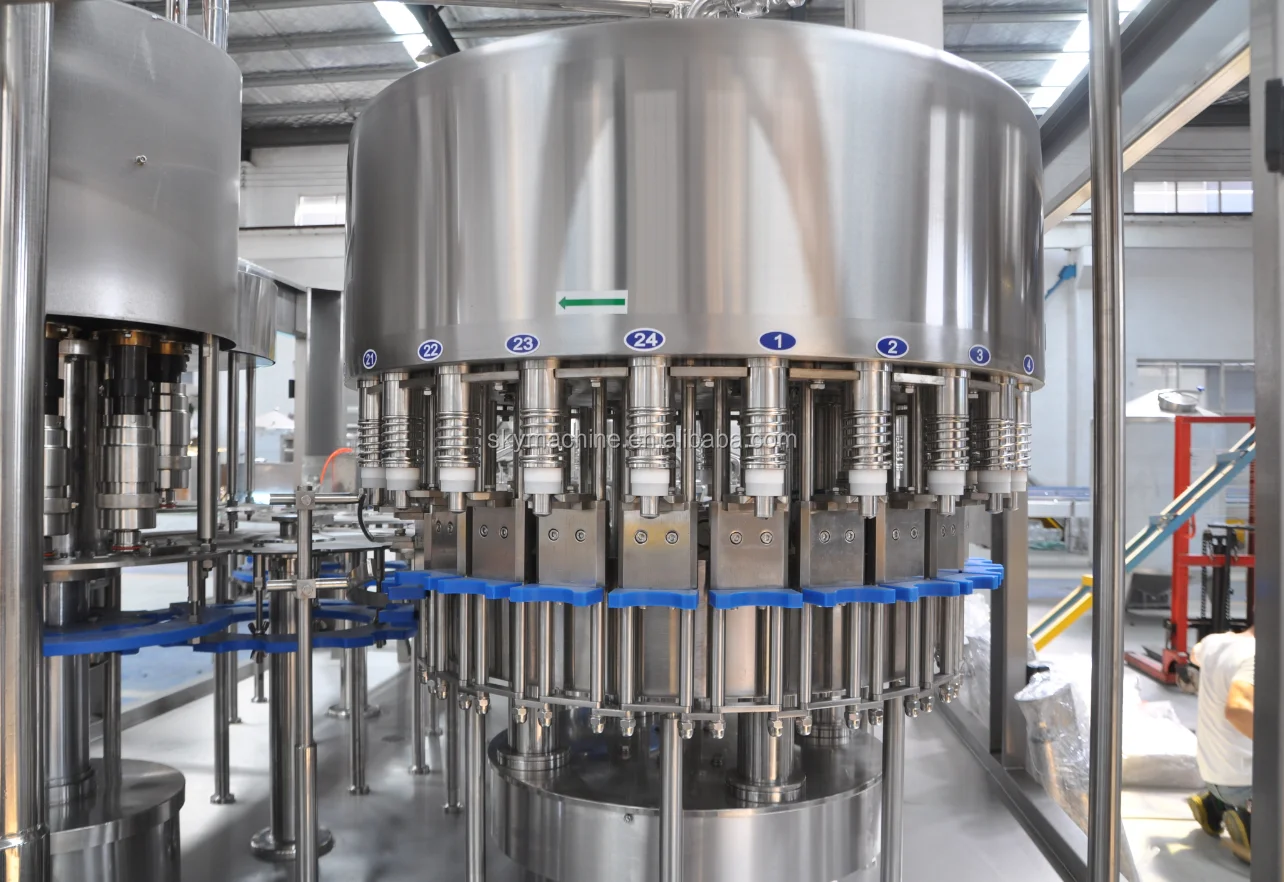

Filler

 The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve elevator, after filling
valve contact the bottle neck, it starts to fill.

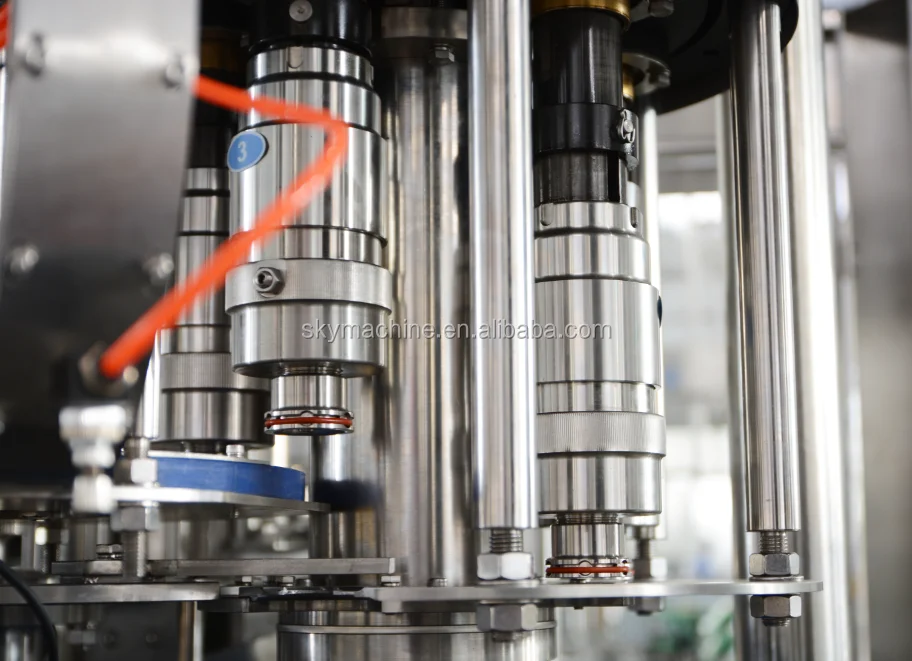

Capper

 The magnetic torque is used foe screw capping.The power of screw capping can be adjusted without steps.The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

Beverage Machinery-Equipment characteristics:

Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.  2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

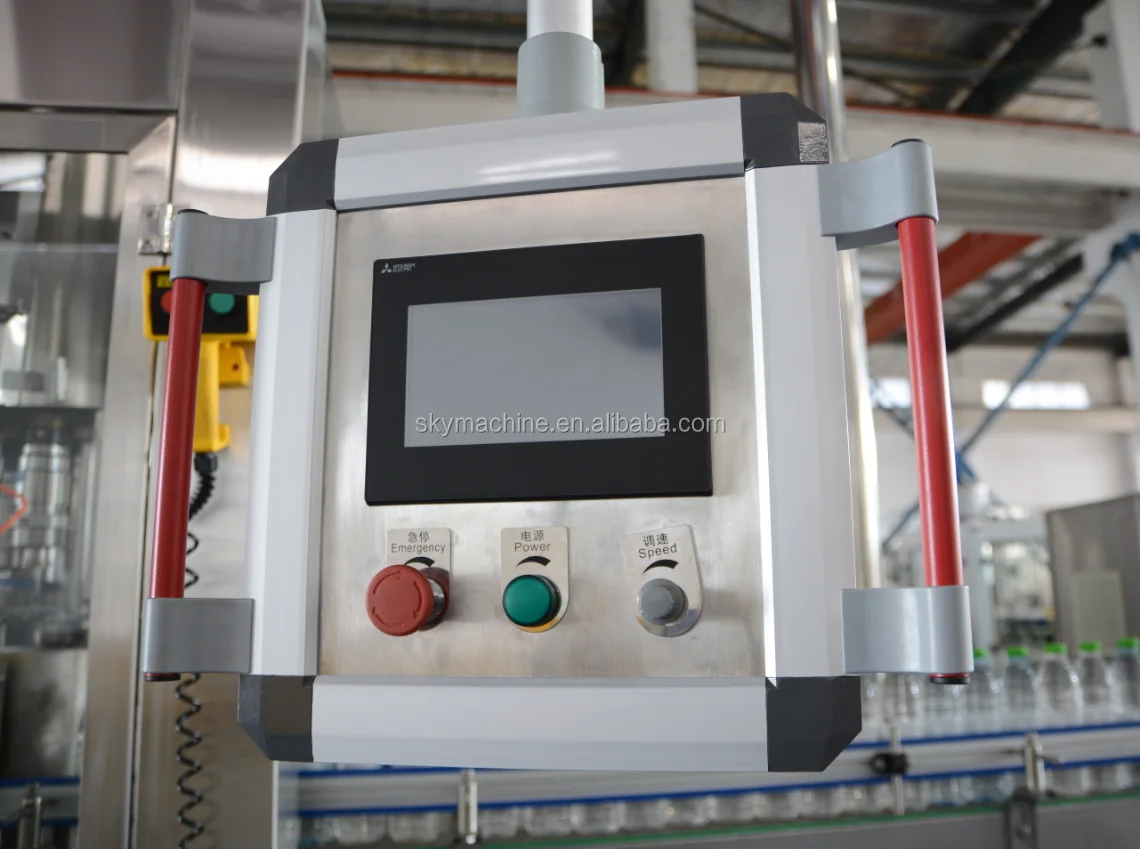

Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.

Product Paramenters

Model	CGF40-40-10
Amoust of working position	Rinsing 40, filling 40, capping 10
Production Speed	18000bottles per hour(500ml)
Pressure of air source	0.3~0.7Mpa
Air consumption	0.2~0.6M3/min
Pressure of rinse water	0.06~0.2Mpa
Consumption of rinsing water	3t/hour
Main motor power	5.87kw
Dimension	470033202700(LWH)
Weight	6800kg

Details Images

FAQ

1.Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.

2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.
